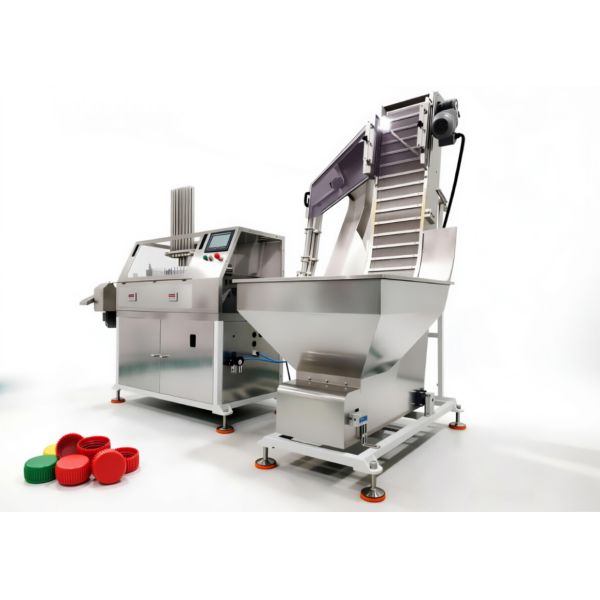

4-Cavity Foam Insert Cap Liner Insertion Machine with Tick-OutFunction and PLC Touchscreen Control
4-Cavity Foam Insert Cap Liner Insertion Machine with Tick-OutFunction and PLC Touchscreen Control
4-Cavity Foam Insert Cap Liner Insertion Machine with Tick-OutFunction and PLC Touchscreen Control
4-Cavity Foam Insert Cap Liner Insertion Machine with Tick-OutFunction and PLC Touchscreen Control
Specifications
Brand Name :
PINCHI
Certification :
CE
Place of Origin :
FOSHAN
MOQ :
1SET
Price :
10000-20000USD
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
40 days
Packaging Details :
WOODEN BOX
Name :
4-Cavity Foam Insert Cap Liner Insertion Machine
Control System :
PLC with touch screen interface
Material Of Construction :
Stainless steel frame and components
Function :
Inserts liners into bottle caps
Power Supply :
220V/380V, 50/60Hz
Cap Diameter :
φ30-60mm
Operation Mode :
Semi-automatic or fully automatic
Packing Details :
Export standerd wooden case
Description
Foam Cap Liner Insertion Machine Link With Elevator With 4 Cavities And Tick Out Function
This Cap Liner Insertion Machine advanced automated system is engineered to streamline packaging operations by integrating material handling, multi-cavity processing, and precision ejection. Designed for high-speed production environments, it ensures optimal product protection while maximizing operational efficiency.
Technical Specifications of Cap Liner Insertion Machine
Cavity Configuration 4-cavity system with synchronized processing
Ejection Mechanism Precision "Tick-out" function for consistent part removal
Power Supply Standard industrial electric (35 kW total motor power)
Control Interface PLC touchscreen system with recipe storage (up to 20 programs)
Production Capacity Up to 480 m³/day (96 blocks in 8-hour shift)
Operating Range 1500 mm stroke with 15 kg payload capacity
Cycle Speed 60 cycles/minute with continuous 24-hour runtime
Distinctive Features of Cap Liner Insertion Machine
  • Automated Workflow Integration - Built-in elevator system seamlessly transfers materials between processing stages, eliminating manual handling and reducing labor costs by up to 40%.
  • Precision Ejection Technology - "Tick-out" function ensures gentle yet reliable part removal, maintaining product quality while preventing jams or misalignments.
  • Customizable Cavity Design - Four independent processing cavities allow simultaneous production of diverse foam configurations, enabling rapid changeover for different product lines.
  • Smart Control System - PLC and touchscreen interface supports recipe storage, real-time monitoring, and seamless integration with existing production management software.
  • Energy-Efficient Operation - Optimized motor systems and variable frequency drives reduce power consumption without compromising performance, supporting sustainable manufacturing goals.
  • Robust Construction - Heavy-duty components and wear-resistant materials ensure long-term reliability in demanding industrial environments, minimizing maintenance requirements.


Product Images:

4-Cavity Foam Insert Cap Liner Insertion Machine with Tick-OutFunction and PLC Touchscreen Control

Payment Terms and Trade Terms
Product Description 4-Cavity Foam Insert Cap Liner Insertion Machine with Tick-OutFunction and PLC Touchscreen Control
Place of Origin Made in China
Price Validation 100 days
Payment Term T/T, 30% deposit, 70% to be paid before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, long term for software & system
Commissioning Free commissioning within 3 days, customer bears engineer's local food, accommodation and tickets, extra time charged at USD 150/day
After Sales Service
The overall product quality has traceability, and the product quality warranty period is 1 year, calculated from the date of equipment acceptance.
Free maintenance during the warranty period, and corresponding travel and material costs will be charged for after-sales service that exceeds the warranty period.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services in Pinchi Tech AI cloud platform, particularly for system updating, algorithm setting, software adjustment, etc.
