Hdpe Leverage Bottle Shrink Sleeve Machine PVC POF Bottle Labeling Machine
Hdpe Leverage Bottle Shrink Sleeve Machine PVC POF Bottle Labeling Machine
Hdpe Leverage Bottle Shrink Sleeve Machine PVC POF Bottle Labeling Machine
Hdpe Leverage Bottle Shrink Sleeve Machine PVC POF Bottle Labeling Machine
Hdpe Leverage Bottle Shrink Sleeve Machine PVC POF Bottle Labeling Machine
Hdpe Leverage Bottle Shrink Sleeve Machine PVC POF Bottle Labeling Machine
Hdpe Leverage Bottle Shrink Sleeve Machine PVC POF Bottle Labeling Machine
Hdpe Leverage Bottle Shrink Sleeve Machine PVC POF Bottle Labeling Machine
Specifications
Brand Name :
PINCHI
Model Number :
NC-100
Place of Origin :
FOSHAN
MOQ :
1SET
Price :
30000-50000usd /per set
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
30 WORK DAYS
Packaging Details :
WOODEN BOX
Certification :
CE
Material :
304 stainless steel
Automatic Grade :
Automatic
Shrink wrap :
PVC 、POF、 PET
Power :
2.5KW
Warranty :
1 Year
Shrinkage rate :
3,000 bottles per hour
Labeling Machine Weight :
Approximately 200 kg
Packing details :
export standerd wooden case
Delivery time :
40 days
Description
Hdpe Leverage Bottle Shrink Sleeve Machine PVC POF Bottle Labeling Machine
Yogurt Cup Hot Air Furnace Bottle Shrink Sleeve Machine NC-100
This advanced Bottle Shrink Sleeve Machine is engineered for shrink films of various specifications, including PVC, POF, and PET. It combines innovative airflow contraction technology with precision engineering to deliver uniform air distribution and exceptional contraction performance.
Key Features & Construction of Bottle Shrink Sleeve Machine
  • Constructed entirely of stainless steel for extended service life and high energy efficiency
  • Premium electrical components from renowned manufacturers ensure stable operation and low failure rates
  • Robust conveyor and air distribution motors provide reliable power for continuous operation
  • Silicone-coated conveyor rollers offer high-temperature resistance and prevent film overheating
Note: Carbon steel with paint coating is not recommended, as carbon steel is prone to rusting and produces impurities at high temperatures, failing to meet medical device requirements.
Technical Specifications of Bottle Shrink Sleeve Machine
Main Unit Dimensions: 900L × 2000W × 2200H mm
Machine Weight: Approximately 200KG
Operating Temperature: Ambient ±5℃
Applicable Label Length: 50-150mm (Maximum)
Label Thickness: 0.035–0.08mm
Bottle Diameter Range: 25-40mm
Power Supply: AC 2PH 50Hz 220V
Operating Speed: 3600 units/hour at normal operation
Power Consumption: 2.5KW
The Bottle Shrink Sleeve Machine includes a 2-meter powered conveyor belt with chain plates. The conveyor belt within the labeling section is powered and controlled by the labeling machine itself.

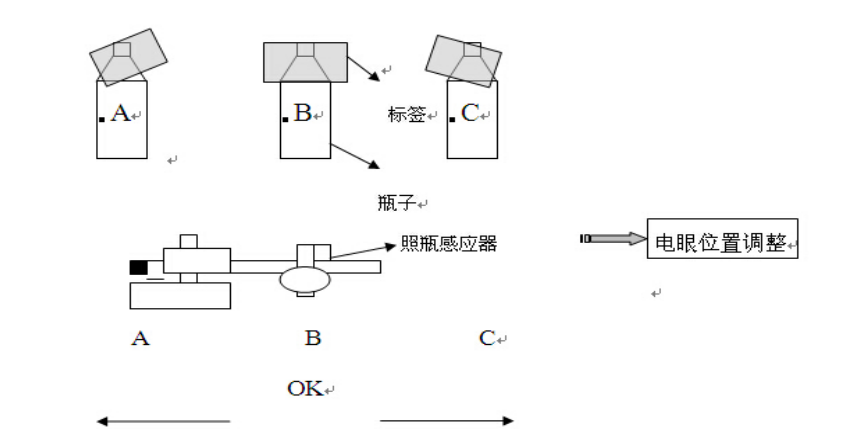

Sleeve Labeling Operation Principle of Bottle Shrink Sleeve Machine
When a bottle passes through the detection sensor on the conveyor belt, the servo-controlled drive assembly automatically dispenses one label. Simultaneously, the lower label application roller assembly brushes the next label into position for application to the bottle.

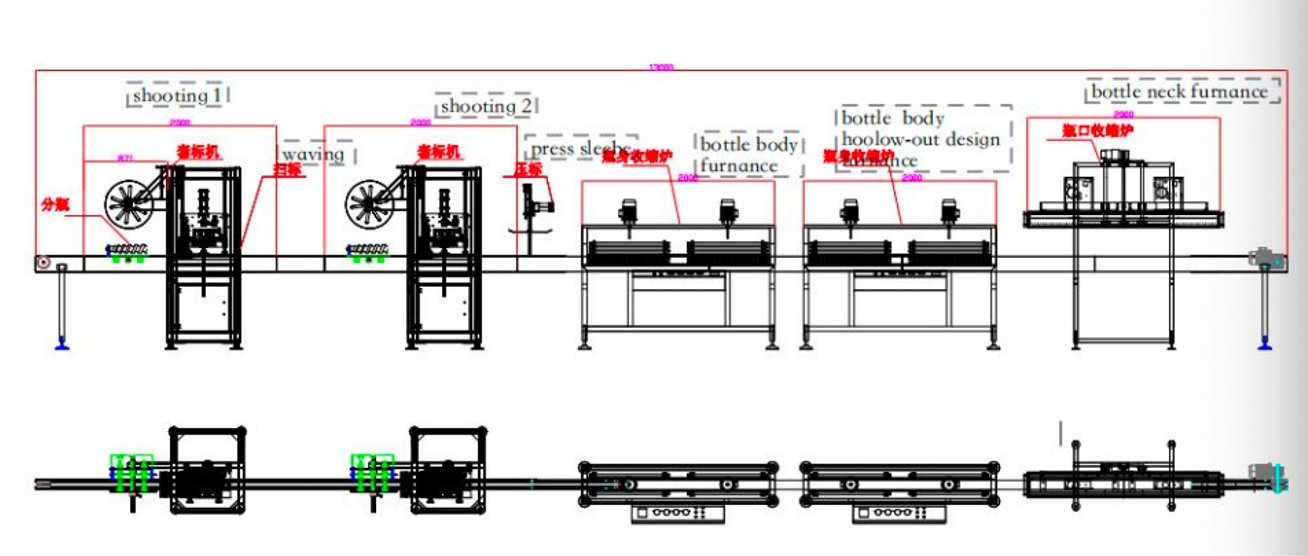

Technical Documentation of Bottle Shrink Sleeve Machine
Hdpe Leverage Bottle Shrink Sleeve Machine PVC POF Bottle Labeling Machine Hdpe Leverage Bottle Shrink Sleeve Machine PVC POF Bottle Labeling Machine
Ordering & Payment Information
Product Model Yogurt Cup Hot Air Furnace Bottle Shrink Sleeve Machine NC-100
VAT Status Included
Place of Origin Made in China
Price Validation 100 days
Payment Terms T/T, 30% deposit, 70% before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, long-term for software & system
Commissioning

Free commissioning within 3 days; customer bears engineer's local expenses;additional time charged at USD 150/day
After-Sales Service & Support
Our products feature comprehensive quality traceability with a 1-year warranty period from equipment acceptance date. We provide free maintenance during warranty period, with travel and material costs applicable for service beyond warranty.
Daily operation and maintenance services include free remote support through our Pinchi Tech AI cloud platform for system updates, algorithm settings, and software adjustments.
