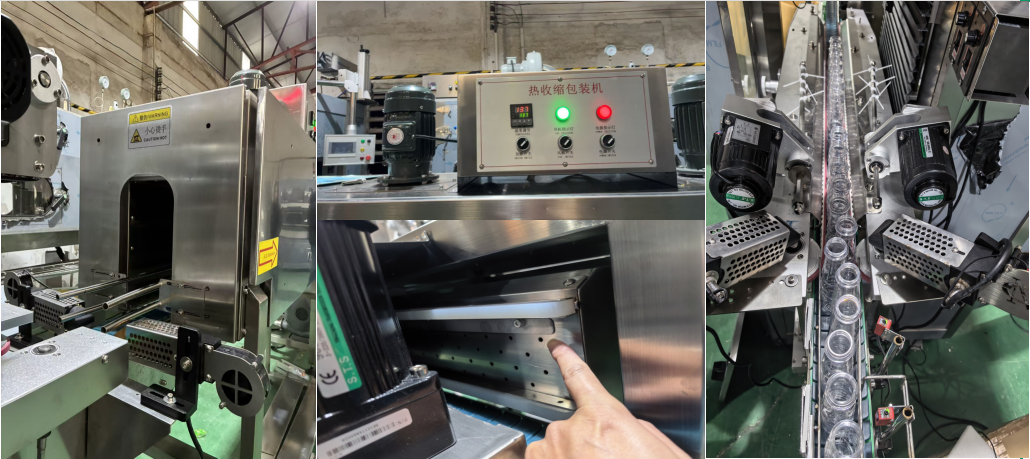

Steam Shrinking Sleeve Machine with Super Permanent Air Dyer
Steam Shrinking Sleeve Machine with Super Permanent Air Dyer
Steam Shrinking Sleeve Machine with Super Permanent Air Dyer
Steam Shrinking Sleeve Machine with Super Permanent Air Dyer
Steam Shrinking Sleeve Machine with Super Permanent Air Dyer
Steam Shrinking Sleeve Machine with Super Permanent Air Dyer
Steam Shrinking Sleeve Machine with Super Permanent Air Dyer
Steam Shrinking Sleeve Machine with Super Permanent Air Dyer
Specifications
Brand Name :
PINCHI
Model Number :
FGW20202018PU-YD-YC7.5KW
Place of Origin :
FOSHAN
MOQ :
1SET
Price :
10000-20000USD
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
30 WORK DAYS
Packaging Details :
WOODEN BOX
Host dimensions: :
900L*2000W*2200H mm
Labeling Machine Weight: :
Approximately 200 kg
Operating temperature: :
Ambient temperature ±5°C
Label length range: :
50–150 mm (Max)
Label thickness: :
0.035–0.08 mm
Applicable bottle diameter range: :
25-40mm
Labeling Machine Power Supply: :
AC 2PH 50Hz 220V
Labeling machine operating speed: :
Normal operating speed 3600 units per hour
Labeling machine power consumption: :
2.5 kW
Description
Steam Shrinking Sleeve Machine with Super Permanent Air Dyer and 7.5KW Power for 3600 Units/Hour Bottle Shrinking
Steam Shrinking Sleeve Machine with Super Permanent Air Dryer - Horizontal Type
Technical Specifications Of Steam Shrinking Sleeve Machine
Model FGW20202018PU-YD-YC7.5KW Platform Height 750mm
Specifications 200x200 Conveyor Belt PU Food-Grade Lower Belt, Synchronous PU Upper Pressure Belt (L)
Color Stainless Steel Metallic Finish Conveyor Load Capacity 10KG
Surface Finish Brushed Machine Weight 100KG
Air-Drying Tunnel Dimensions 1600(L)x200(W)x200(H)mm Primary Materials 304 Stainless Steel
Conveyor Dimensions 2000mm(L) Conveyor Motor Variable Frequency Drive Motor
Machine Dimensions 2000(L)x800(W)x1000(H)mm Bottle Clamping Belt Motor Variable Frequency Drive Motor
Conveyor Speed Adjustable, 0-20 m/min Air-Drying System Spider-Bead Hand Mouthpiece + Air Knife
Power Supply 380V 50-60Hz Air-Drying Efficiency 100 bottles per minute
Total Power 7.5KW Air-Drying Effectiveness 99.9% droplet-free residue
Air-Drying Motor Super Permanent Magnet 7.5KW (Delivers 3x higher airflow than comparable high-voltage motors) Leak Prevention System Mid-body leak-proof design with centralized condensate drainage

Steam Shrinking Sleeve Machine with Super Permanent Air Dyer
Performance Features Of Steam Shrinking Sleeve Machine
  • Steam Shrinking Sleeve Machine equipped with a high-efficiency air drying system, capable of processing 100 bottles per minute
  • Exceptional 99.9% droplet-free drying performance
  • Advanced leak prevention with centralized condensate drainage
  • Super permanent magnet motor technology for superior airflow performance
  • Food-grade PU conveyor belts for safe product handling
  • Variable frequency drive motors for precise speed control
Ordering & Payment Terms Of Steam Shrinking Sleeve Machine
Product Description Steam Shrinking Sleeve Machine With Super Permanent Air Dryer Horizontal Type
Place of Origin Made in China
Tax Status With VAT
Price Validation 100 days
Payment Terms T/T, 30% deposit, 70% to be paid before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, long term for software & system
Commissioning Free commissioning within 3 days, customer bears engineer's local food, accommodation, and travel expenses; additional time charged at USD 150/day
After-Sales Service & Support Of Steam Shrinking Sleeve Machine
Quality Assurance: Full product quality traceability with 1-year warranty period from equipment acceptance date.
Warranty Coverage: Free maintenance during warranty period; travel and material costs apply for services beyond warranty.
Remote Support: Complimentary remote operation and maintenance services via Pinchi Tech AI cloud platform for system updates, algorithm settings, and software adjustments.
