500L Plastic Hemming Cap Slitting Machine Cutter Customized
500L Plastic Hemming Cap Slitting Machine Cutter Customized
Specifications
Brand Name :
PINCHI
Place of Origin :
FOSHAN
MOQ :
1SET
Price :
10000-20000USD
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
30WORKDAYS
Packaging Details :
WOODEN BOX
Cover bucket capacity :
Greater than 500L
otal installed power :
Less than 3.5KW
Bottle cap arrangement :
Lide mechanism cap
Main material :
304 stainless steel
Delivery time :
40 days
Automatic Grade :
Automatic
Packing details :
export standerd wooden case
Warranty :
1 Year
Description
Fully Automatic Hemming and Cutting Machine with 304 Stainless Steel Construction and Greater than 500L Cover Bucket Capacity
This fully automatic equipment is designed for precision hemming and cutting operations in bottle cap manufacturing. The system ensures bottle caps meet exact size and shape specifications, enhancing both product quality and visual appeal.
Equipment Overview
The machine comprises a robust frame, precision feeding system, cutting mechanism, transmission system, and advanced control system. The feeding system delivers bottle caps in orderly sequence to the working area, while the cutting mechanism performs precise ring-cutting operations with specialized tools and drive components.
Technical Specifications
Connection with Cap Making Machine Storage cap conveying hopper/elevator
Bottle Cap Arrangement Lide mechanism cap
Reverse Cap Handling Reverse cap can return and rearrange
Cutting & Folding Unit Entrance Cap sensing with speed gear switching control
Cutter Knife Customized; located on inner edge of cutting unit
Blade Temperature Controllable heating temperature
Host Speed Control Variable frequency motor (Pearl River brand)
Control Cabinet Electrical centralized control (Xinjie Schneider Omron)
Operating System Microcomputer/PLC (Xinjie brand)
HMI Interface Display screen (Xinjie brand)
Cutting & Folding Unit Outlet Lid sensing with anti-jam protection
Counting Unit Reset to zero capability, fixed output setting, automatic split/shutdown after completion
Safety Features Safety door interlock, emergency stop switch

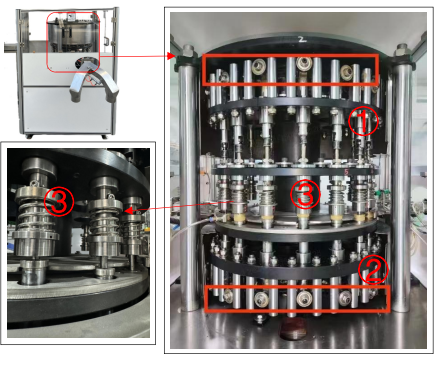

Operation Process
500L Plastic Hemming Cap Slitting Machine Cutter Customized
  1. Caps from the ring cutting machine are systematically transferred to the folding machine via track
  2. Caps are securely clamped by upper and lower top rods
  3. The folding station mold moves vertically via cam force mechanism
  4. Folding station mold precisely bends the cap skirt edge inward
Commercial Terms
Product Description Fully Automatic Hemming and Cutting Machine with VAT
Place of Origin Made in China
Price Validation 100 days
Payment Terms T/T, 30% deposit, 70% balance before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, extended coverage for software & system
Commissioning Free commissioning within 3 days; customer covers local accommodation, food, and tickets; additional time charged at USD 150/day
After-Sales Service
  • Complete product quality traceability system
  • 1-year warranty period from equipment acceptance date
  • Free maintenance during warranty period
  • Service beyond warranty period incurs travel and material costs
  • Free remote operation and maintenance via Pinchi Tech AI cloud platform
  • Comprehensive support for system updates, algorithm settings, and software adjustments
