2000pcs/Hr-3000pcs/Hr Water Pani Bottle Packing Machine Industrial Packaging Equipment
2000pcs/Hr-3000pcs/Hr Water Pani Bottle Packing Machine Industrial Packaging Equipment
2000pcs/Hr-3000pcs/Hr Water Pani Bottle Packing Machine Industrial Packaging Equipment
2000pcs/Hr-3000pcs/Hr Water Pani Bottle Packing Machine Industrial Packaging Equipment
2000pcs/Hr-3000pcs/Hr Water Pani Bottle Packing Machine Industrial Packaging Equipment
2000pcs/Hr-3000pcs/Hr Water Pani Bottle Packing Machine Industrial Packaging Equipment
Specifications
Brand Name :
PINCHI
Place of Origin :
FOSHAN
MOQ :
1SET
Price :
10000-20000USD
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
30 WORK DAY
Packaging Details :
WOODEN OX
Features :
Economical, simple, quick and easy setup
Sorting method :
Horizontal arrangement packaging, conveying into bottles
Scope of Application :
Suitable for use on lower-capacity bottle-blowing production lines that require manual bag feeding.
production capacity :
Taking a 500ml bottle as an example, production capacity is typically around 2,000 to 3,000 bottles per hour.
Equipment Dimensions :
L3100mm*W1450+800mm*H2600mm
Automatic Grade :
Semi-automatic
Warranty :
1 Year
Maximum power consumption :
1KW/H
Description
30-03C Semi-automatic Packaging Machine with 2000-3000 bottles/hour Capacity Economical and Simple Horizontal Arrangement Packaging
30-03C Semi-automatic Packaging Machine
Equipment Characteristics
The 30-03C Semi-automatic Packaging Machine is an economical and efficient solution designed for streamlined packaging operations. This machine features simple, quick, and easy adjustments with horizontal bottle arrangement and conveyor infeed. Ideal for lower blowing lines, it requires manual bag supply and can handle packaging sizes up to 1200mm × 750mm × 370mm. For 500ml bottles, production capacity reaches approximately 2,000-3,000 bottles per hour.
Basic Performance Specifications
Specification Details
Equipment Dimensions (L×W×H): 3100mm × 1450+800mm × 2600mm
Maximum Package Size (L×W×H): 1200mm × 750mm × 370mm
Minimum Package Size (L×W×H): 500mm × 500mm × 100mm
Equipment Frame Material: 40mm × 80mm × 4.0mm Carbon Steel
Equipment Appearance: Sheet Metal Spraying Gray/White
Input Gas Source: 0.6-0.8MPa
Input Voltage: 220V 50Hz
Maximum Gas Consumption: 5L/min
Maximum Power Consumption: 1KW/H
Maximum Applicable Bottle Dimensions: Ø250mm × H370mm; L250mm × W250mm × H370mm
Minimum Applicable Bottle Dimensions: Ø40mm × H100mm; L40mm × W40mm × H100mm
Fastest Cycle Time (Single-Row): 7 seconds/row
Bottle Feeding to Reverse Beat: 12 seconds/round trip
Docking Height (Bottle Feeding Conveyor): 1200-1000mm Adjustable
Bottle Feeding Method: Bottle Feeding
Fastest Single-Package Production Capacity: 80 bags/hour (actual capacity subject to packaging specifications)
Performance Features
Plastic Bag Type: Single Bag
Bag Supply Mode: Manual
Automatic Bottle Jam Alarm: Yes
Automatic Card Wallet Alarm: No
Number of Sealing Lines: 2
Broken/Missing Bag Alarm: Not Applicable
Bag Sealing & Tightening: Not Applicable
System Remote Communication: Yes
System Operation Authority: 3 Levels
Adjustment Points & Changeover Settings
Bottle Infeed Channel Width: Manual
Single-Row Bottle Misalignment Correction: Automatic
Bottle Storage Area Width: Manual
Bottle Pusher Front-to-Back Position: Automatic
Bottle Pusher Body Width: Manual
Upper Bag Opening Width: Manual
Upper Bag Opening Height: Manual
Lower Bag Opening Width: Manual
Lower Bag Opening Height: No Adjustment Needed
Bag Mouth Upper Sealing Height: Manual
Lower Bag Mouth Sealing Width: No Adjustment Needed
Bottle/Bag Pressing Height: Manual
Packaging Station Width: Manual

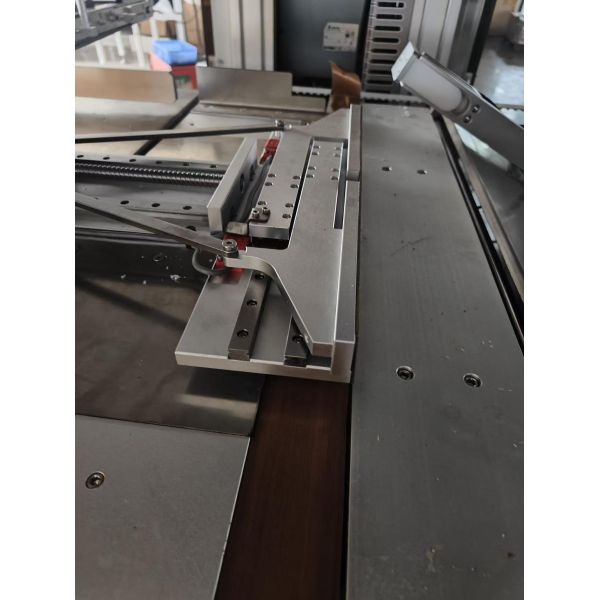

Product detail images
2000pcs/Hr-3000pcs/Hr Water Pani Bottle Packing Machine Industrial Packaging Equipment 2000pcs/Hr-3000pcs/Hr Water Pani Bottle Packing Machine Industrial Packaging Equipment
Payment Terms & Trade Conditions
Item Details
Product Model 30-03C Semi-automatic Packaging Machine
VAT Status Included
Place of Origin Made in China
Price Validation 100 days
Payment Terms T/T, 30% deposit, 70% balance before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, long-term for software & system
Commissioning Free commissioning within 3 days; customer bears engineer's local food, accommodation, and tickets; additional time charged at USD 150/day
After Sales Service

The overall product quality is fully traceable, with a 1-year warranty period calculated from the date of equipment acceptance.

Warranty Coverage: Free maintenance during warranty period; travel and material costs apply for services beyond warranty.

Daily Operation & Maintenance: Our company provides complimentary remote operation and maintenance services through the Pinchi Tech AI cloud platform, including system updates, algorithm settings, software adjustments, and more.
