Fully Automatic Bottle Packing Machine With Flexible Size Parameters Rapid Changeover And 10,000 Bottles Per Hour Capacity
Fully Automatic Bottle Packing Machine With Flexible Size Parameters Rapid Changeover And 10,000 Bottles Per Hour Capacity
Fully Automatic Bottle Packing Machine With Flexible Size Parameters Rapid Changeover And 10,000 Bottles Per Hour Capacity
Fully Automatic Bottle Packing Machine With Flexible Size Parameters Rapid Changeover And 10,000 Bottles Per Hour Capacity
Fully Automatic Bottle Packing Machine With Flexible Size Parameters Rapid Changeover And 10,000 Bottles Per Hour Capacity
Fully Automatic Bottle Packing Machine With Flexible Size Parameters Rapid Changeover And 10,000 Bottles Per Hour Capacity
Fully Automatic Bottle Packing Machine With Flexible Size Parameters Rapid Changeover And 10,000 Bottles Per Hour Capacity
Fully Automatic Bottle Packing Machine With Flexible Size Parameters Rapid Changeover And 10,000 Bottles Per Hour Capacity
Specifications
Supply Ability :
20SETS
Production Capacity :
pproximately 8,000–10,000 bottles per hour
Delivery Time :
30 WORK DAYS
Maximum power consumption :
6KW/H
Certification :
CE
Condition :
New
Price :
10000-20000USD
Packaging Details :
WOODEN BOX
Sealingmethod :
Heat Sealing
Warranty :
1 Year
Payment Terms :
T/T
Packing Material :
PE shrinking film
Transport Package :
Packed in Wooden Cases
Place of Origin :
FOSHAN
Features :
The equipment is of medium size, with quick changeovers and adjustments.
MOQ :
1SET
Automatic Grade :
Automatic
Brand Name :
PINCHI
MOQ :
1SET
Description

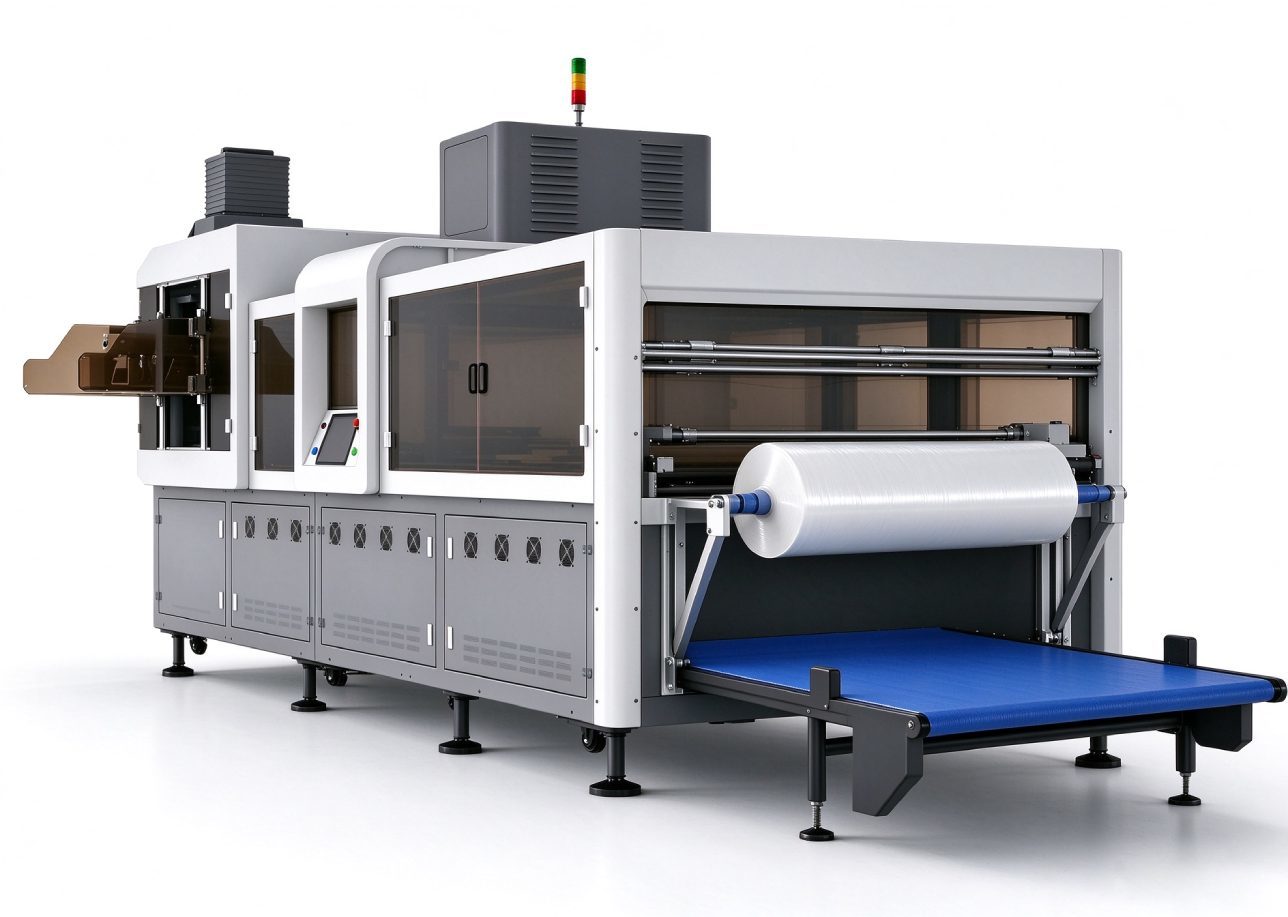

Fully Automatic Bottle Packing Machine

This fully automatic bagging machine utilizes a roll-fed bag loading system to automatically package bottled products. The equipment features robust rapid changeover capabilities, with most size parameters supporting automatic adjustment to flexibly accommodate diverse bottle shapes. It includes a multi-level automatic fault alarm system that monitors production status in real time.

The machine comes standard with dual-seal technology and bag-mouth tightening function, ensuring consistent packaging and sealing quality. The control system supports remote communication and a three-tier access control system, making maintenance and operation convenient and safe. Ideal for automated packaging of bottled products.

Technical Specifications
Specification Details
Equipment Dimensions (L×W×H) 5200mm × 1880mm × 2400mm
Equipment Frame Material 40mm × 80mm × 4.0mm Carbon Steel
Equipment Appearance Sheet Metal Spraying Gray/White
Input Gas Source 0.6-0.8MPa
Input Voltage 380V 50Hz
Maximum Applicable Bottle Dimensions Ø250mm × H420mm; L250mm × W250mm × H420mm
Minimum Applicable Bottle Dimensions Ø40mm × H100mm; L40mm × W40mm × H100mm
Maximum Gas Consumption 10L/min
Fastest Single-Package Production Capacity 80 bags/hour (actual capacity subject to packaging specifications)
Maximum Package Size (L×W×H) 1200mm × 750mm × 420mm
Minimum Package Size (L×W×H) 500mm × 500mm × 100mm
Package Arrangement Form Horizontal Arrangement
Fastest Cycle Time for Single-Row Bottle Arrangement 4 seconds/row
Bottle Feeding to Reverse Beat Time 15 seconds/round trip
Docking Height of Bottle Feeding Conveyor 1200-1000mm Adjustable
Bottle Feeding Method Dual-Channel Robotic Gripper
Maximum Power Consumption 6KW/H

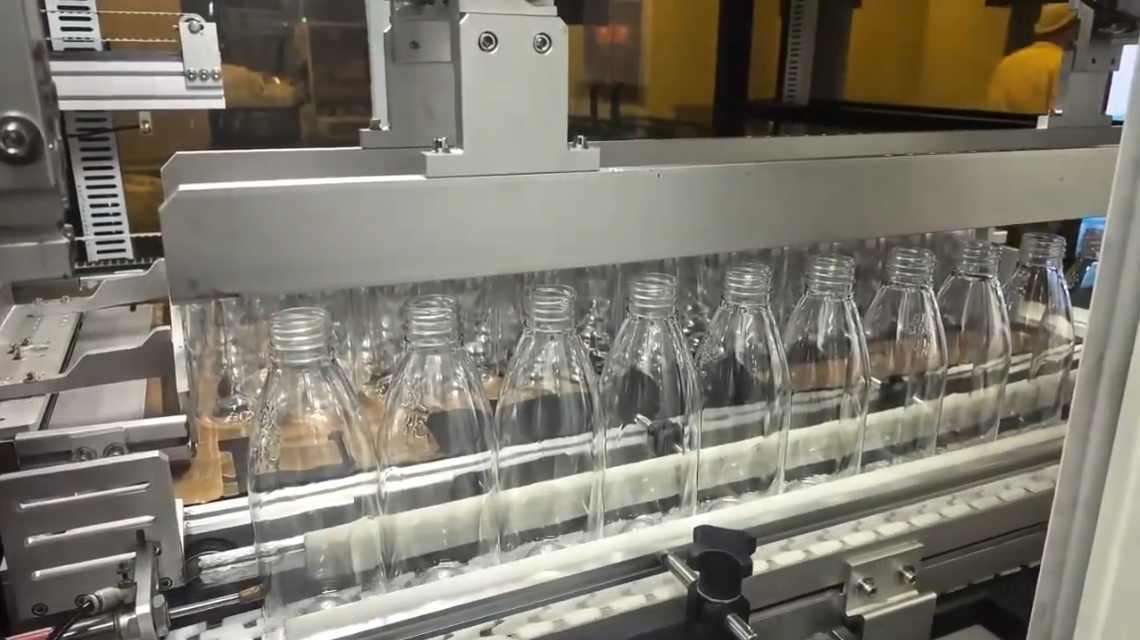

Product Images
Fully Automatic Bottle Packing Machine With Flexible Size Parameters Rapid Changeover And 10,000 Bottles Per Hour Capacity
Ordering & Delivery Terms
Description Details
Product Model Fully Automatic Bottle Packing Machine With Flexible Size Parameters And Rapid Changeover For Diverse Bottle Packaging
VAT Status Included
Place of Origin Made in China
Price Validation 100 days
Payment Terms T/T, 30% deposit, 70% to be paid before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, long-term for software & system
Commissioning Free commissioning within 3 days (customer bears engineer's local food, accommodation, and tickets; extra time charged at USD 150/day)
After-Sales Service & Support
  • Quality Assurance: Complete product quality traceability with 1-year warranty period from equipment acceptance date.
  • Warranty Coverage: Free maintenance during warranty period. After-warranty service incurs travel and material costs.
  • Remote Support: Free remote operation and maintenance services via Pinchi Tech AI cloud platform, including system updates, algorithm settings, and software adjustments.
