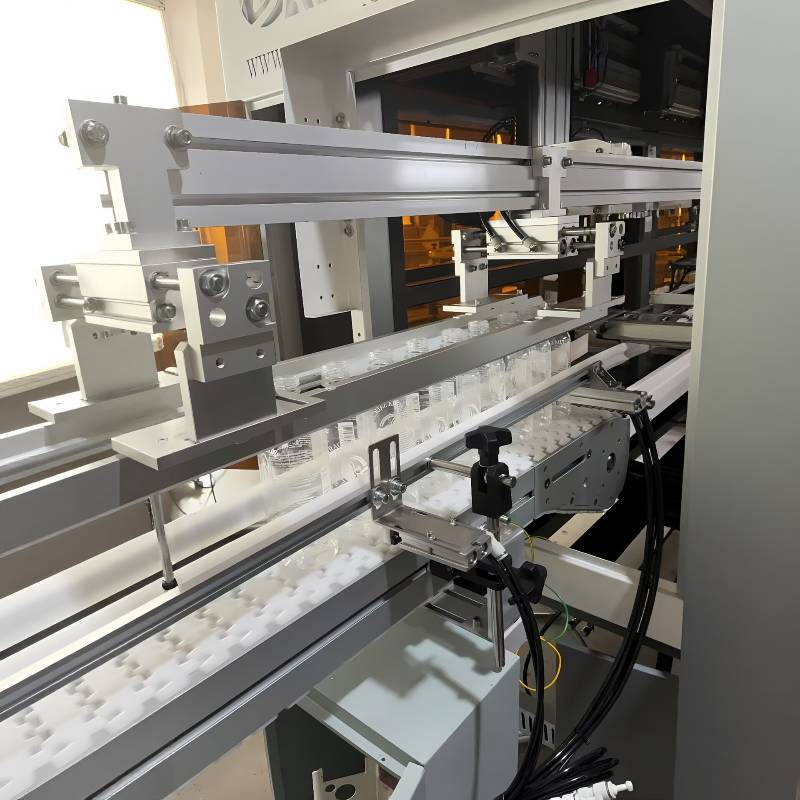

Fully Automatic Two-layer Packaging Machine with Two Sets of Independent Equipment and Maximum Speed of 16,000 Pieces per Hour
Fully Automatic Two-layer Packaging Machine with Two Sets of Independent Equipment and Maximum Speed of 16,000 Pieces per Hour
Fully Automatic Two-layer Packaging Machine with Two Sets of Independent Equipment and Maximum Speed of 16,000 Pieces per Hour
Fully Automatic Two-layer Packaging Machine with Two Sets of Independent Equipment and Maximum Speed of 16,000 Pieces per Hour
Fully Automatic Two-layer Packaging Machine with Two Sets of Independent Equipment and Maximum Speed of 16,000 Pieces per Hour
Fully Automatic Two-layer Packaging Machine with Two Sets of Independent Equipment and Maximum Speed of 16,000 Pieces per Hour
Specifications
Place of Origin :
FOSHAN
Suitable Flim :
Shrinkable PE film
Certification :
CE
Production Capacity :
maximum speed of 16,000 pieces per hour
Payment Terms :
T/T
Control :
PLC+Touch screen
Delivery Time :
30 WORK DAYS
Sealing Method :
Heat Sealing
Price :
10000-20000USD
Packaging Details :
WOODEN BOX
The Material :
Stainless Steel
Application :
Bottle Packing
Supply Ability :
20 SETS
Warranty :
1year
Brand Name :
PINCHI
Name :
Two-layer packaging machine
Standard Voltage :
380V 50HZ
MOQ :
1SET
Automatic Grade :
Fully Automatic
Description
Fully Automatic Two-layer Packaging Machine with Two Sets of Independent Equipment and Maximum Speed of 16,000 Pieces per Hour
Equipment Overview

This advanced packaging machine incorporates innovative packaging technology with two independent packaging systems. The dual-line process operates without interference, ensuring stable and continuous packaging operations. With a maximum production speed of 16,000 bottles per hour, this machine efficiently meets high-volume production demands.

  • Standard pneumatic conveyor with two-lane diverter feed conveyors for orderly material diversion
  • Prevents feed congestion and product jams effectively
  • Exceptional production adaptability for various bottle specifications
  • Quick changeover between bottle types in just 3-4 minutes
  • Optimized feed grippers with controllable gripping force to prevent surface damage
  • Ensures stable process conditions throughout feeding and conveying
Equipment Specifications
Item Specification
Production Speed Max. 16,000 bottles per hour
Equipment Dimensions (L×W×H) 5200mm × 1880mm × 2400mm
Package Arrangement Form Horizontal arrangement
Pouch Feeding Automatic pouch feeding
Applicable Bottle Volume 100mL-5L, compatible with various bottle types
Fastest Cycle Time for Single-Row Bottle Arrangement 4 seconds/row
Docking Height of Bottle Feeding Conveyor 1200-1000mm Adjustable
Bottle Feeding Method Dual-channel robotic gripper bottle feeding
Input Gas Source 0.6-0.8MPa
Input Voltage 380V 50Hz
Maximum Gas Consumption 10L/min
Maximum Power Consumption 6KW/H
Maximum Package Size (L×W×H) 1200mm × 750mm × 420mm
Minimum Package Size (L×W×H) 500mm × 500mm × 100mm
Payment Terms and Trade Terms
Description Details
Product Model Fully Automatic Two-layer Packaging Machine with Two Sets of Independent Equipment and Maximum Speed of 16,000 Pieces per Hour
VAT Included
Place of Origin Made in China
Price Validation 100 days
Payment Term T/T, 30% deposit, 70% to be paid before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, long term for software & system
Commissioning Free commissioning within 3 days; customer bears engineer's local expenses; additional time charged at USD 150/day
After Sales Service
  • Complete product quality traceability system
  • 1-year product quality warranty period from equipment acceptance date
  • Free maintenance during warranty period
  • Travel and material costs charged for services beyond warranty period
  • Free remote operation and maintenance services via Pinchi Tech AI cloud platform
  • Includes system updates, algorithm settings, and software adjustments
