High-Speed Automatic Cap Assembly Machine With Integrated Cap Lifter | 2,500 CPH
High-Speed Automatic Cap Assembly Machine With Integrated Cap Lifter | 2,500 CPH
High-Speed Automatic Cap Assembly Machine With Integrated Cap Lifter | 2,500 CPH
High-Speed Automatic Cap Assembly Machine With Integrated Cap Lifter | 2,500 CPH
Specifications
Delivery Time :
30 WORK DAYS
Material Handling Method:  :
Elevator-type
Certification :
c/e
Name :
Automatic Cap Assembly Machine
Price :
10000-20000USD
Packaging Details :
WOODEN BOX
Machine Exterior: :
Fully 304 Stainless Steel
packing details: :
export standerd wooden case
Supply Ability :
20SETS
Compatible Caps :
Customizable
Payment Terms :
T/T
Power Source :
Electric
Place of Origin :
FOSHAN
Condition :
New
Brand Name :
PINCHI
MOQ :
1SET
MOQ :
1SET
Automatic Grade: :
Automatic
Description
High-Speed Automatic Cap Assembly Machine With Integrated Cap Lifter | 2,500 CPH
Equipment Overview

This automatic bottle cap assembly machine is specifically designed for the food, beverage, cosmetics, and chemical packaging industries. It automates the entire process—from bottle cap feeding and positioning to the precise assembly of multi-component bottle caps.
Featuring a fully enclosed, food-grade stainless steel structure and an intuitive Human-Machine Interface (HMI) touchscreen control system, the machine eliminates bottlenecks associated with manual bottle cap assembly, reduces the risk of contamination, and ensures uncompromising assembly precision.


How the Equipment Works

1.Bulk Loading & Lifting:The operator pours bulk lid components into the elevator hopper. The elevator, equipped with inclined scrapers, conveys the material in measured quantities to the upper section.

2.Sorting & Orientation:The material enters the vibrating feeder or mechanical cap-sorting tray, where it undergoes physical trajectory sorting to ensure that all caps are aligned in the same direction before entering the conveyor track.

3.Rotary Interlocking Assembly:The machine’s multi-station rotary table uses a precision cam mechanism or servo drive to precisely align two or more lid components during high-speed operation, and completes the pressing or screwing process via pneumatic or mechanical interference fits.

4.Smart Inspection & Discharge:An integrated sensor checks the completeness of the assembly, rejects non-conforming products, and conveys the finished products to the next packaging process.


Technical Specifications

External Dimensions Approximately 1800 × 1600 × 2300 mm
Power Supply AC 220V ±10%, 50/60 Hz
Air Supply 0.5MPa-0.6MPa
Production Speed 2,500 units per hour
Material Handling Method Elevator-type
Total Power 5.5 kW
Lower Cover Method Guide Rail Vibration Guidance
Machine Exterior Fully 304 Stainless Steel
Adaptor Manufactured based on provided sample
Machine Control PLC automatic program control + touchscreen human-machine interface

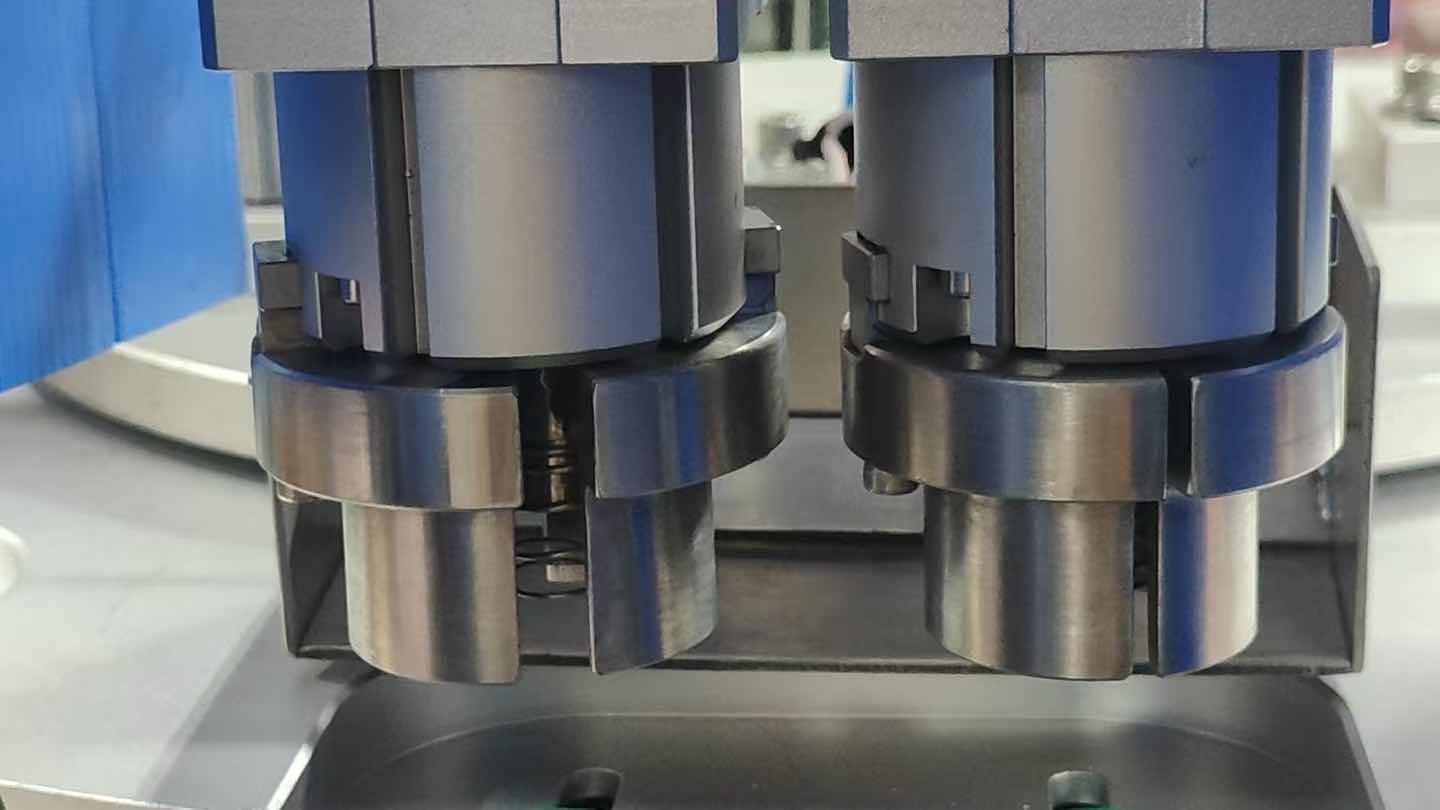

Product detail images

High-Speed Automatic Cap Assembly Machine With Integrated Cap Lifter | 2,500 CPH

Ordering & Delivery Terms
Product Plastic Component Separator (With VAT)
Place of Origin Made in China
Price Validation 100 days
Payment Terms T/T, 30% deposit, 70% paid before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, extended coverage for software & system
Commissioning Free commissioning within 3 days (customer bears engineer's local expenses)
After-Sales Service & Support
Our equipment features comprehensive quality traceability with a 1-year warranty period starting from equipment acceptance. Free maintenance is provided during the warranty period, with travel and material costs applicable for services beyond warranty coverage.
We offer free remote operation and maintenance services through the Pinchi Tech AI cloud platform, including system updates, algorithm settings, software adjustments, and technical support.
