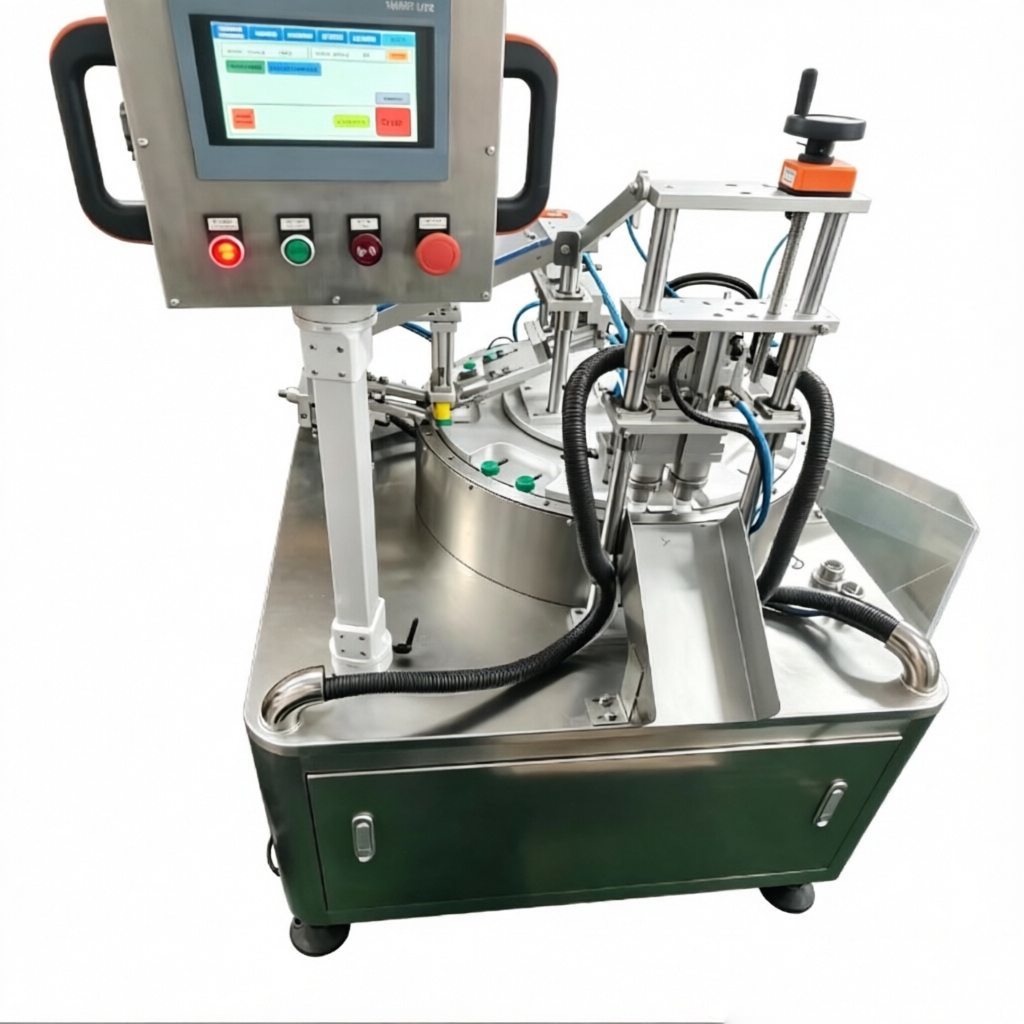

High-Speed 1500 caps/hour Automatic Plastic Cap Assembly Machine with Stainless Steel Construction and Touch Screen Interface
High-Speed 1500 caps/hour Automatic Plastic Cap Assembly Machine with Stainless Steel Construction and Touch Screen Interface
High-Speed 1500 caps/hour Automatic Plastic Cap Assembly Machine with Stainless Steel Construction and Touch Screen Interface
High-Speed 1500 caps/hour Automatic Plastic Cap Assembly Machine with Stainless Steel Construction and Touch Screen Interface
Specifications
Supply Ability :
20SETS
Detection System :
Photoelectric Sensor
Delivery Time :
30 WORK DAYS
Main Power :
Servo motor
Input Voltage :
220V 50Hz
Certification :
CE
Automatic Grade :
Automatic
Price :
10000-20000USD
Packaging Details :
WOODEN BOX
Production Speed :
1500 caps/hour
Packing details: :
export standerd wooden case
Payment Terms :
T/T
Operating Interface :
Touch Screen
Warranty :
1 Year
Place of Origin :
FOSHAN
Function :
Slitting Knife
MOQ :
1SET
Material: :
Stainless steel
Brand Name :
PINCHI
Application :
Cap Assembly Machine
Description
High-Speed Automatic Plastic Cap Assembly Machine Multi-Function Cap Assembling Production Line
Equipment Overview

This high-performance plastic cap assembly machine features a precision enclosed cam indexing station that delivers exceptional accuracy, reliable operation, and extended service life. The intuitive human-machine interface ensures straightforward setup and operation, while PLC control guarantees stable performance with variable frequency control for adjustable production speeds.

  • Automatic counting functionality with no-material-no-operation capability
  • High-precision cam indexing control for accurate positioning
  • Constructed from SUS304 stainless steel, fully compliant with GMP requirements
  • Automatic shutdown features for operational safety

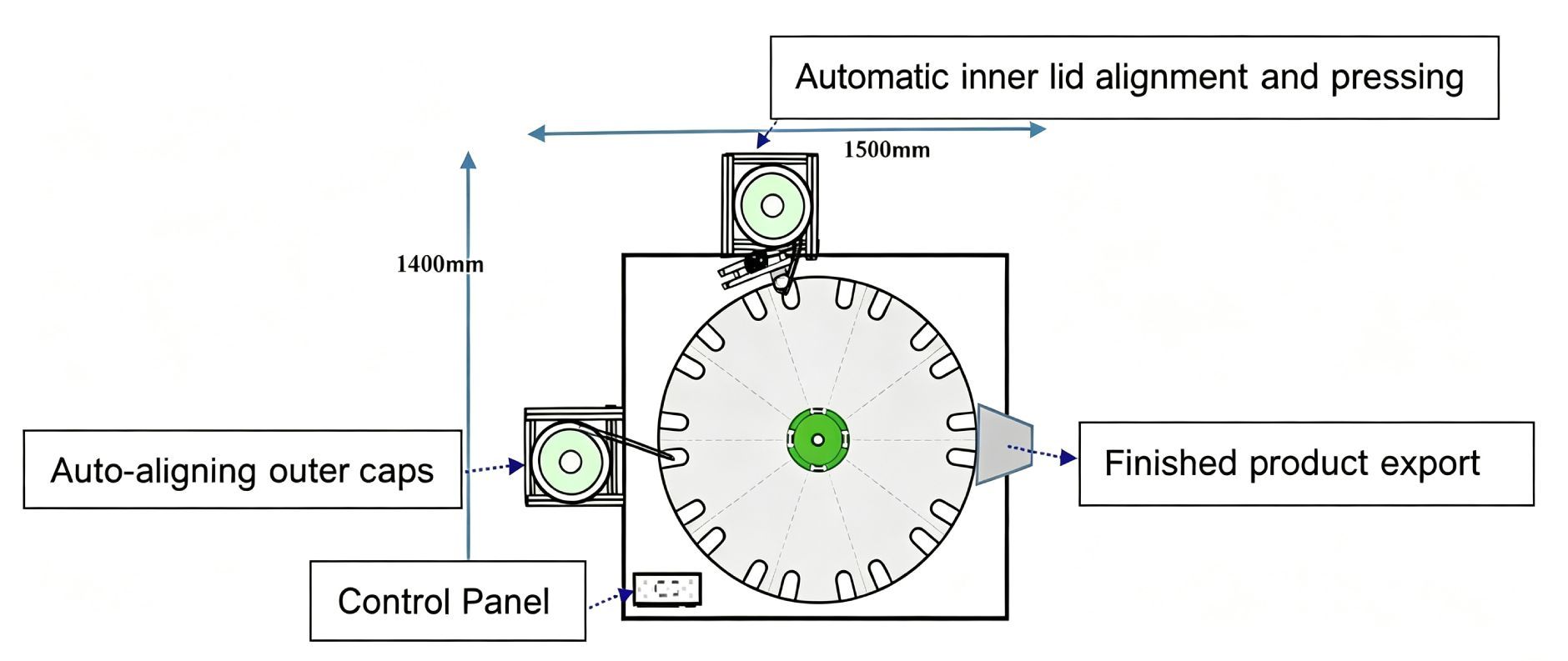

Equipment Layout Diagram
High-Speed 1500 caps/hour Automatic Plastic Cap Assembly Machine with Stainless Steel Construction and Touch Screen Interface
Equipment Specifications
Parameter Specification
Power Supply AC 220V ±10%, 50/60Hz
Air Supply 0.5MPa-0.6MPa
Cap Alignment Method Lift-type cap alignment
Cap Discharge Method Guide rail vibration guidance (PPU servo-driven cap feeding system)
Compatible Caps Custom-made based on provided samples
Production Speed 1500 caps/hour
Total Power Consumption 4kW
Machine Control PLC automated programme control + touchscreen HMI operation
Machine Exterior Fully 304 stainless steel
Overall Dimensions Approx. 1500 × 1400 × 1650 mm
Payment and Trade Terms
Description Details
Product Model High-Speed Automatic Plastic Cap Assembly Machine Multi-Function Cap Assembling Production Line
VAT Status With VAT
Place of Origin Made in China
Price Validation 100 days
Payment Terms T/T, 30% deposit, 70% balance before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, extended coverage for software & system
Commissioning Free commissioning within 3 days (customer bears local expenses for engineer accommodation and tickets)
After Sales Service and Support

Quality Warranty: Full product quality traceability with 1-year warranty period from equipment acceptance date

Maintenance Services: Free maintenance during warranty period; travel and material costs apply for post-warranty services

Remote Support: Free remote operation and maintenance services via Pinchi Tech AI cloud platform for system updates, algorithm settings, and software adjustments
