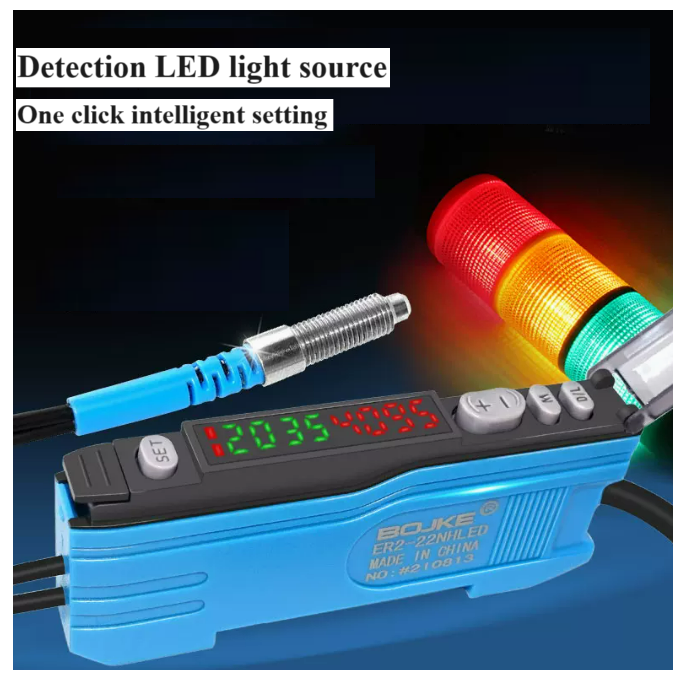

NPN / PNP Output Fiber Optic Amplifier LED Light Source Detector
NPN / PNP Output Fiber Optic Amplifier LED Light Source Detector
NPN / PNP Output Fiber Optic Amplifier LED Light Source Detector
NPN / PNP Output Fiber Optic Amplifier LED Light Source Detector
NPN / PNP Output Fiber Optic Amplifier LED Light Source Detector
NPN / PNP Output Fiber Optic Amplifier LED Light Source Detector
NPN / PNP Output Fiber Optic Amplifier LED Light Source Detector
NPN / PNP Output Fiber Optic Amplifier LED Light Source Detector
NPN / PNP Output Fiber Optic Amplifier LED Light Source Detector
NPN / PNP Output Fiber Optic Amplifier LED Light Source Detector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
BOJKE
MOQ :
1
Model Number :
ER2-22NHLED
Certification :
CE
Price :
$66.5
Payment Terms :
T/T
Supply Ability :
150k
Delivery Time :
5~8 work days
Packaging Details :
PP bag with carton box;
Product name :
Fiber Optic Amplifier
Features :
Detection LED light source
Description :
Fibre optic amplifier, Fiber optic amplifer sensor
Output :
NPN or PNP
Response Time :
50 us ~4 ms
Light Source :
Red 4-element LED
Description
BOJKE Optical Fiber Optic Amplifier LED Light Source Detector Of Fiber Optic Sensor Type
Product Description
Product Namefiber amplifer
Materialplastic
Functioncounting, detection fluid flow rate, temperature,density etc
Packageplastic box

Product performance description

1. Dual digital display
2. 4 output Modes avaliable
3. 3 delay mode options
4. Invisiable light optic fiber sensing LED light
5. Stability applications in different scenarios
NPN / PNP Output Fiber Optic Amplifier LED Light Source Detector

Model #

ER2-22NHLED

Operation Voltage

DC12~24V±10%

No-load Current

≤40mA

Light Source

No light source, receiving the brightness of the detected object

Response Time

P0:<50μs;P1:<200μs;P2:<400μs;P3:<800μs;P4:<4ms

Response Frequency

10KHz

Delay Function

No delay/Single delay/Pull up delay/Pull down delay

Output Mode*1

NPN open-collectorNPN

Max input Current

100mA

Max Residue Voltage

<1.5V(at the load current is 100mA and the wire is 2m)

Switching Mode

Light.on/Dark.on switchable

Digital Display

Threshold setting value:4 digit green LED; Current value:4 digit red LED

Ambient Temperature

Operation:10℃~55℃; Storage:25℃~70℃, no freezing

Ambient Humidity

Operation:35%~85%RH; Storage:35%~95%RH,No condensation

Protection Circuit

Polarity reversal protection/surge protection/short circuit protection

Protection Level

IP64

Connection

3-core, standard cable length 2 meters

Housing Material

ABS

Withstand Voltage

AC500V,50/60Hz,1min

Vibration Resistance

10～55Hz,dual amplitude 1.5mm, 2 hours each in X/Y/Z directions

Impact Resistance

500m/S², XYZ derection each 10 times

Insulation Impedance

Above 20MQ (DC500V megger)

FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
