Dual Digital Fiber Optic Amplifier Sensor Anti Interference High Accuracy Fast Respond
Dual Digital Fiber Optic Amplifier Sensor Anti Interference High Accuracy Fast Respond
Dual Digital Fiber Optic Amplifier Sensor Anti Interference High Accuracy Fast Respond
Dual Digital Fiber Optic Amplifier Sensor Anti Interference High Accuracy Fast Respond
Dual Digital Fiber Optic Amplifier Sensor Anti Interference High Accuracy Fast Respond
Dual Digital Fiber Optic Amplifier Sensor Anti Interference High Accuracy Fast Respond
Specifications
Brand Name :
BOJKE
Model Number :
ER2-18ZW series
Certification :
CE
Place of Origin :
Dongguan China
MOQ :
1pcs
Price :
$19.8~$42.8
Payment Terms :
T/T
Supply Ability :
150k
Delivery Time :
5~8 work days
Packaging Details :
PP bag with carton box;
Name :
Fiber Optic Amplifier Sensor
Power supply :
DC 12~24V
Respond frequency :
5KHz
Respond time :
high speed<80us; normally<500us; far distance<3ms
Output :
NPN PNP Analog
Description

Dual Digital Fiber Optic Amplifier Sensor Anti-Interference High Accuracy And Fast Respond

Product Name Optic fiber Amplifier
Material ABS case

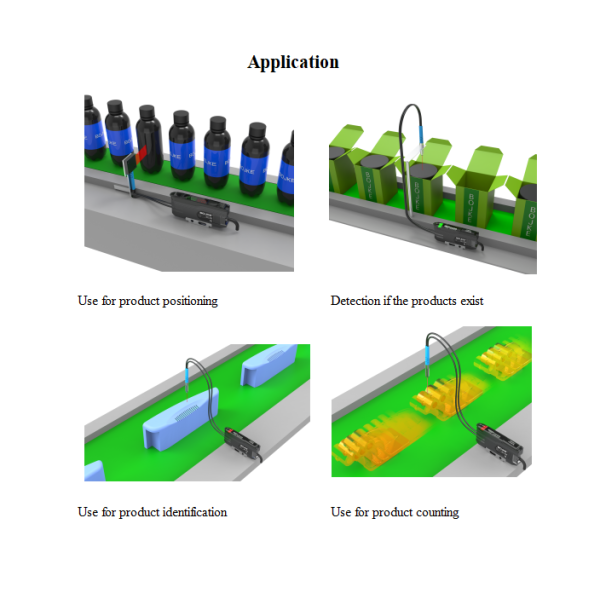

Function Detection

Dual Digital Fiber Optic Amplifier Sensor Anti Interference High Accuracy Fast Respond

In addition to providing a variety of fiber amplifiers, we also provide

Automatic light filling to guarantee detection stability
HD LED dual digital display to master well even subtle changes
The minimum bending radius of fibers can reach 1mm

Model ER2-18ZW-NRS ER2-18ZW-NRS ER2-18ZW-VRS
Operation Voltage DC 12~24V ±10%
Consumption (non-load) Current ≤30mA
Detection Distance Normally: reflection: 200mm, through-beam: 700mm;
Long distance: reflection: 300mm, through-beam: 1200mm
Light Source 4 Element Red LED 630nm
Response Time High speed: <80㎲; Normal: <500㎲; Long distance: <3㎳
Response Frequency 5KHz
Delay Function No delay/single delay/pull high delay/pull low delay
Output Mode NPN +R485 PNP +R485 Analog voltage output (0~5V)+RS485
Max Input/Output Current 100mA
Max Residue Voltage <1V <2V <1V
Switch Mode Light.on / Dark.on switchable
Displayer Chinese digital display
Ambient Illumination Incandescent lamp≤3000Lux; sunlight≤10000Lux
Ambient Temperature Operation:-10℃~55℃；Storage:-25℃~70℃,No freezing
Ambient Humidity Operation:35%~85% RH；Storage:35%~95% RH, no condensation
Protection Circuit Reverse protection/surge protection/short circuit protection
Protection Level IP64
Connection cable-type ( 3 core standard length 2 meters ) cable ( 4 core standard length 2 meters )
Housing Materials ABS
Withstand Voltage AC 500V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz, double amplitude 1.5mm, X/Y/Z direction each 2 hours
Impact Resistance 500m/S2, X/Y/Z direction 3 times
Insulation Impedance Above 20MΩ (DC 500V Megger)
