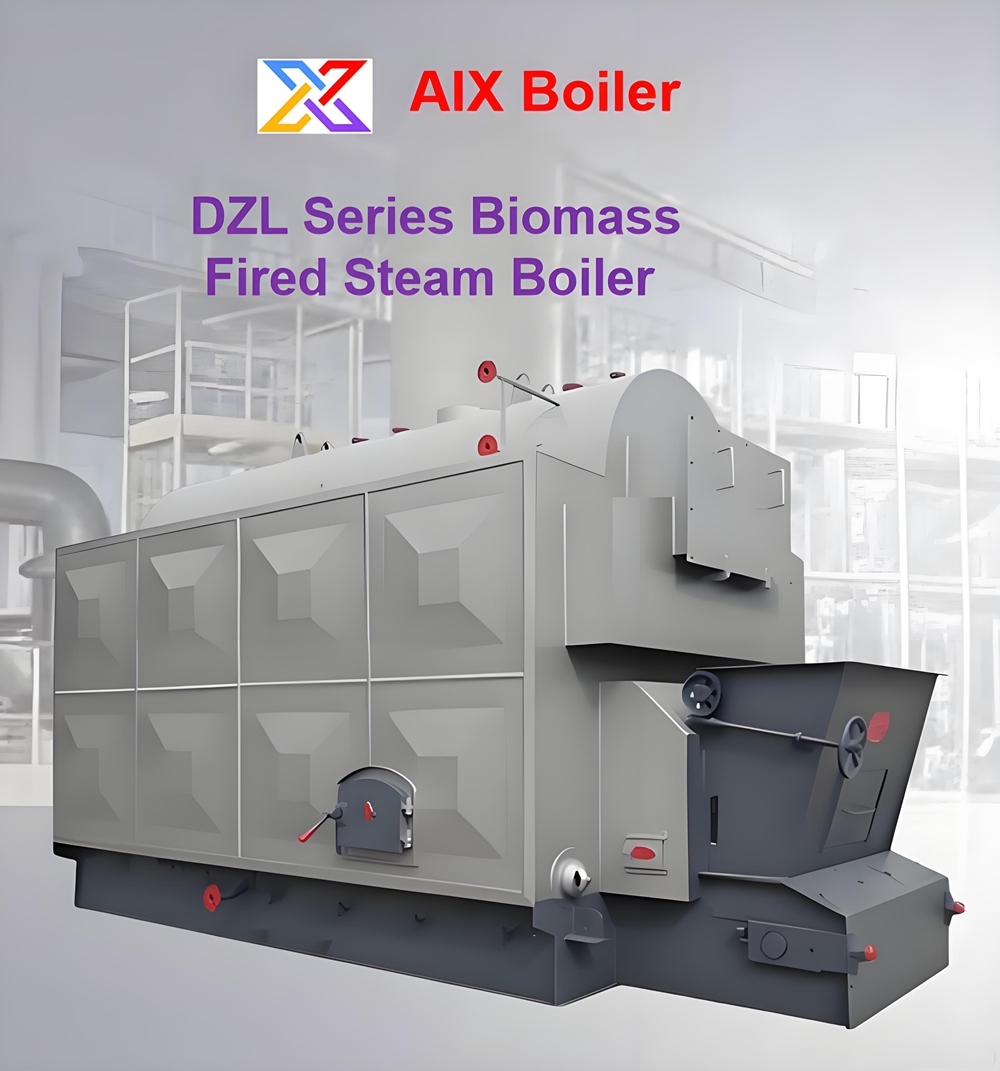

DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
Specifications
type :
Steam Boiler
Steam Capacity :
1-20 T/h
Medium :
Clean Water
output :
Steam
Function :
Multifunctional
video outgoing-inspection :
Provided
Model :
DZL
Fuel :
Coal/biomass
Weight (KG) :
24000
Style :
Horizontal
Brand Name :
AIX Boiler
key selling points :
Automatic
Working pressure :
1.0/1.25 MPa
structure :
fire and water tube
pressure :
High Pressure
Price :
$9,900-13,200 / set
MOQ :
1 set
core components :
Pressure Vessel
dimension(l*w*h) :
6550*2550*3563mm
Place of Origin :
Henan, China
Warranty :
1 Year
Material :
Carbon Steel
usage :
Industrial
machinery test report :
Provided
Fuel Type :
Biomass/Coal
Description
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
Product Description
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
The DZL series is a single-drum, longitudinally arranged water-tube shell-and-tube quick-assembly boiler, primarily powered by solid fuels such as coal and biomass. It features a compact structure, high thermal efficiency, and stable operation. It employs a chain grate, with water-cooled walls serving as the radiant heating surface, and internal threaded smoke tubes and wing-shaped flues as the convective heating surface. Its unique arched tube sheet + threaded smoke tube structure transforms the boiler drum from a quasi-rigid to a quasi-elastic body, and the smoke tubes are changed from a two-pass to a single-pass design, completely solving the problem of tube sheet cracking. The riser tube bank design eliminates dead water zones and prevents bottom bulging. The boiler is equipped with high-efficiency threaded smoke tubes, self-cleaning ash technology, double-layer secondary air, and independent air chambers. It has strong fuel adaptability, rapid biomass ignition, high burnout rate, and a thermal efficiency of ≥88%. It features a compact structure, small footprint, and short installation period (7-15 days). The DZL boiler is renowned for its high efficiency, stability, safety, environmental friendliness, and cost-effectiveness, making it a classic choice for small and medium-sized enterprises, hospitals, schools, and hotels. Tens of thousands of units are currently in use.
Product Parameters
Model
DZL1
DZL2
DZL3
DZL4
DZL6
DZL8
DZL10
Rated steam
capacity(t/h)
1
2
3
4
6
8
10
Rated working pressure(Mpa )
0 .7/ 1 .0/
1 .25
0 .7/ 1 .0/
1 .25
1.0/1.25
1.0/1.25
1.0/1.25/1.6
1.0/1.25/1.6
1.0/1.25/1.6
Rated steam temperat ure( ℃ )
170/184/194
170/184/194
184/194
184/194
184/194/204
184/194/204
184/194/204
Feed water temperature( ℃ )
20
20
20
20
20
20
20
Thermal efficiency(%)
~84
~84
~84
~84
~84
~84
~84
Exhaust gas temperature(℃)
122
113
116
116
116
135
135
Fuel type
Coal,biomass pellet,wood sawdust,bamboo chip,wood block,straw,jute, palm shell
Fuel consumption(Kg/h)
201
373
590
780
1210
1635
2085
Max transportation weight(t)
17
23
27
32
38
45
55
Max transportation size(mm)
5080×2200×3070
5470×2340×3320
5700×2500×3400
6550×2550×3563
7510×2600×3720
7550×3200×3800
7600×3200×3950

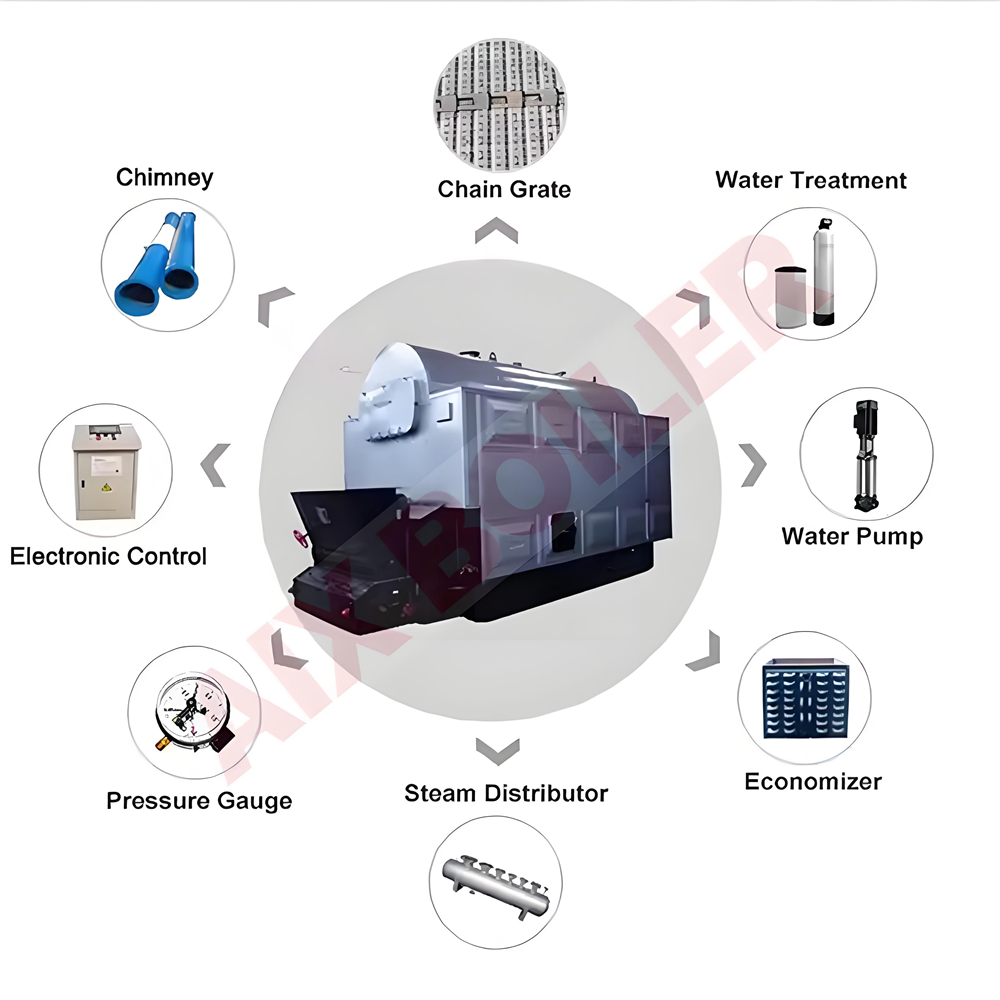

Boiler Accessories
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer

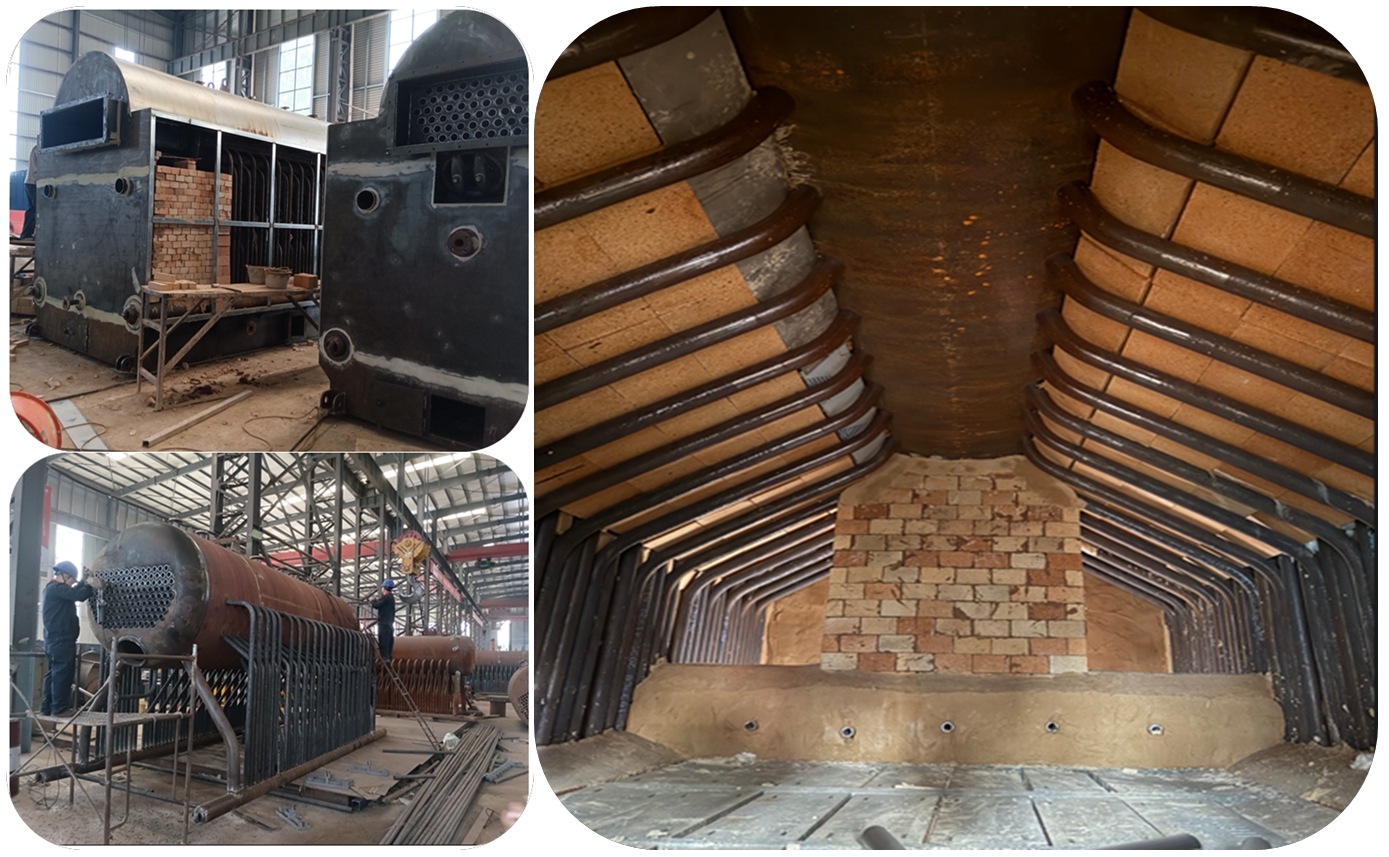

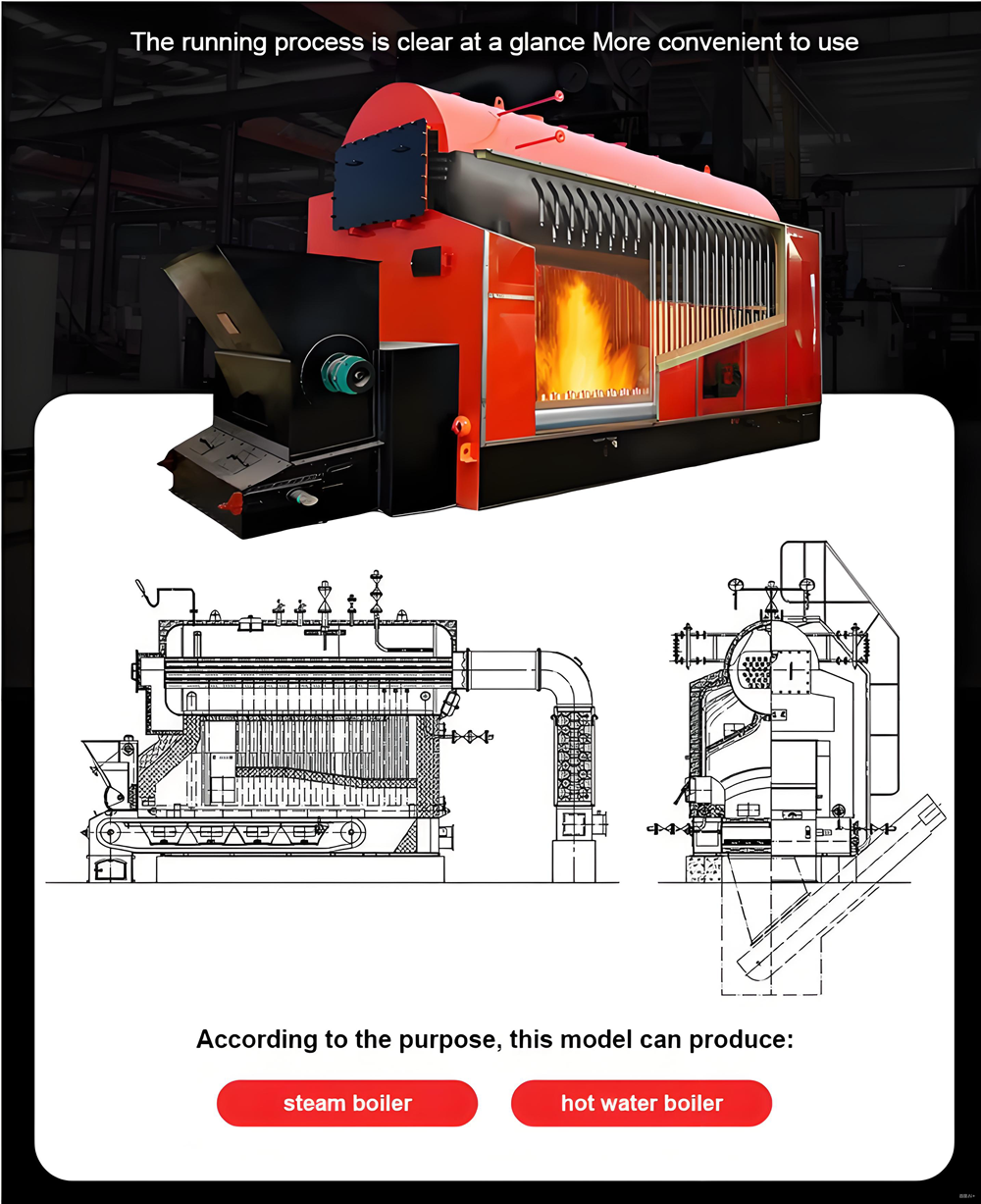

Internal structure
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer

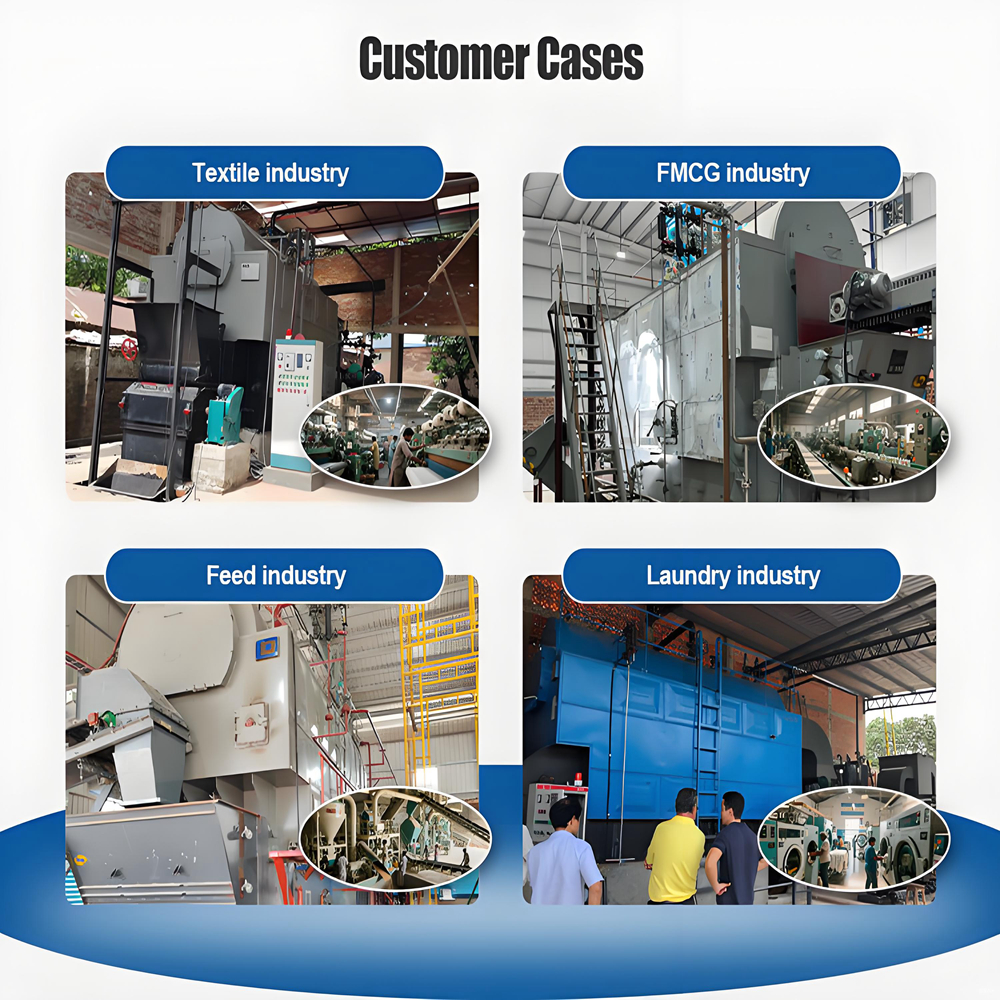

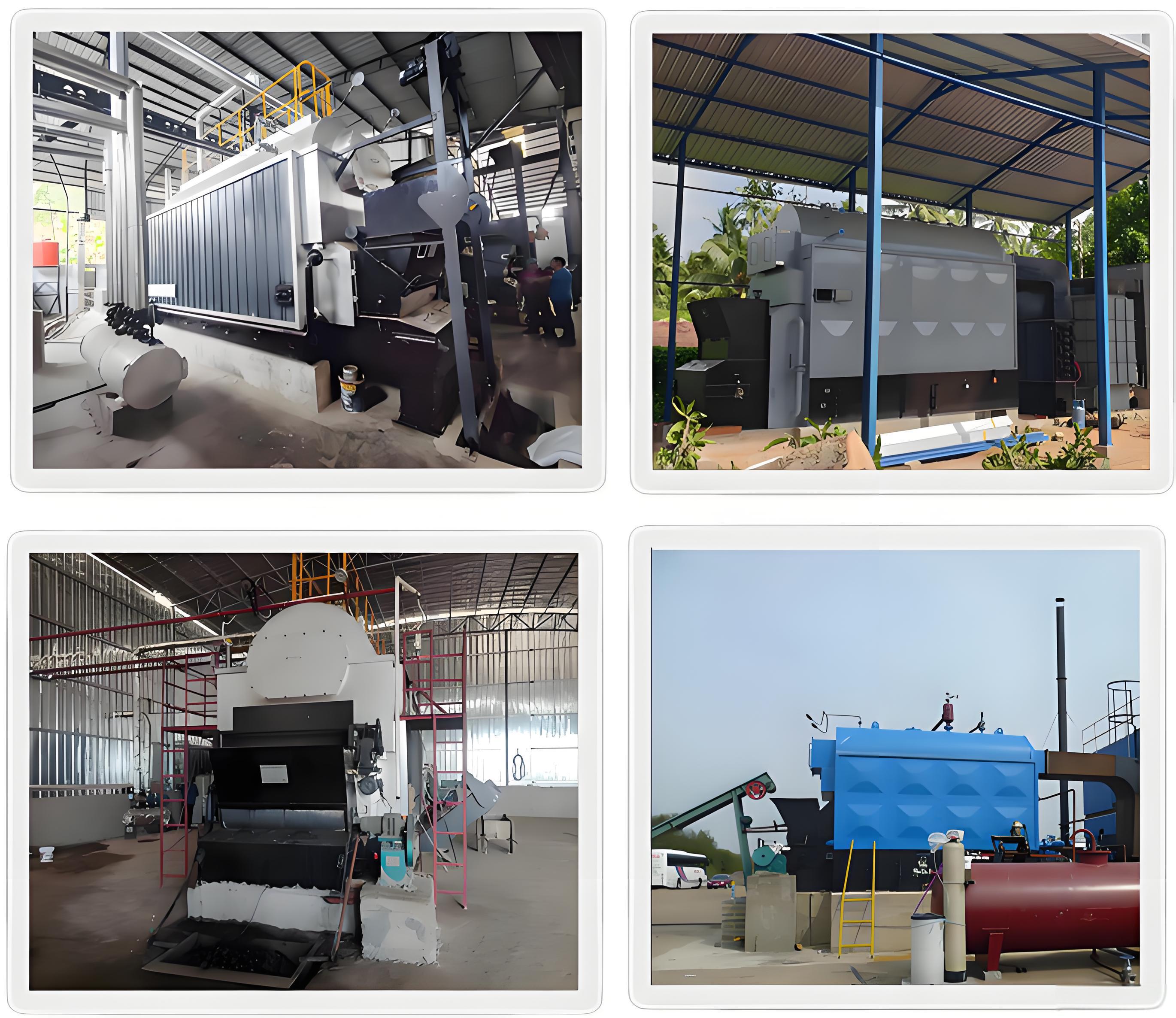

Boiler On-site Installation
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
Company Profile
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
AIX Boiler is a brand under Henan Shijie Industrial Equipment Co., Ltd. Established on January 7, 2019, with a registered capital of 35 million RMB and a National Enterprise Credit Code of 91411627MA47YRXXX9, the company primarily engages in the research,development, manufacturing, technical training, and import/export trade of mid-to-high-end boilers and pressure vessels.Headquartered in Taikang, Henan, known as the "Hometown of Boilers in China," the company boasts an 80,000-square-meter factory and over 100 employees.
The company mainly focuses on the research, development, production, and sales of biomass boilers, oil/gas
boilers, electric boilers, and pressure vessels. Its products not only sell well in the domestic market but are also exported to more than ten countries and regions, including Morocco, Egypt, Ethiopia, Peru, Mongolia, the Philippines, and Indonesia. An excellent workforce, advanced technology, sophisticated equipment, and strict management are the cornerstones of the company's continued growth and the trust it has earned from its customers.
Factory Showcase
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
AIX Boiler - More than 20 core boiler patents, major supplier of electrical components in the industry, and drafter of Chinese boiler production standards.
Customer Visiting
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
Certifications
DZL 3 Ton Fully Automatic Feeding Chain Grate Coal Biomass Wood Fired Steam Boiler Professional Export Manufacturer
FAQ
Q1: How to get the best quote quickly?
A: We need to know the boiler capacity, the fuel you plan to use, and the required steam pressure to confirm the boiler model.
Customers need to provide their name, email address, and company name, and we will send a quote immediately. If you use WhatsApp, Skype, or WeChat, you can provide your ID for easier communication.
Q2: Why choose us?
A:1. Over 40 years of boiler manufacturing experience and 10 years of export experience. A-level boiler factory.
2. Free parts replacement within one year, lifetime maintenance of the main unit (excluding improper human operation). Q3:What is your delivery time?
A: Generally, the delivery time is 15~25 days for boilers≤6Ton , 25~40 days for boilers>6Ton.
Q4:What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
