SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
Specifications
type :
Natural Circulation
Fuel :
bioamss/coal
pressure :
Max. 2.5MPa
Warranty :
1 Year
video outgoing-inspection :
Provided
Steam Capacity :
0.5t/h~30t/h
Brand Name :
AIX Boiler
Weight (KG) :
50000
Price :
$13,000 / set
machinery test report :
Provided
core components :
Pressure Vessel
Steam temperature :
184/194/205/225
Usage :
Industrial Machine
Model :
SZL
Color :
Customer's Requirement
MOQ :
1 set
output :
Steam
key selling points :
Automatic
Function :
Multifunctional
usage :
Industrial
Place of Origin :
Henan, China
Working pressure :
1.0/1.25 /1.6 MPa
Material :
Stainless Steel
structure :
Water Tube
dimension(l*w*h) :
7600*3500*3580mm
Style :
Horizontal
Description
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
Product Description
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
The SZL series boilers are double-drum, longitudinally arranged chain grate steam/hot water boilers. These boilers feature a double-drum longitudinal arrangement with staggered upper and lower drums. The boiler body is formed by convection tube bundles and water-cooled wall tubes, ensuring safe and reliable water circulation. Dense water-cooled wall tubes are arranged on both sides of the furnace, with the front and rear water-cooled wall tubes extending downwards to support the grate on both sides. The combustion equipment uses a lightweight chain grate or reciprocating grate, with compartment ventilation and electronic stepless speed control, ensuring complete combustion and adaptability to a wide range of coal types. SZL boilers achieve a thermal efficiency of 82%-88%, a rated evaporation capacity of 2-35 t/h, a rated pressure of 1.0-2.5 MPa, and a steam temperature of 194-450℃; hot water boilers have a rated power of 1.4-29 MW and an outlet water temperature of 95-150℃. With advantages such as sufficient output, large load adjustment range (30%-110%), high degree of automation, and convenient installation and transportation, it is widely used in industries such as textiles, food, papermaking, chemicals, and heating, and is one of the most cost-effective industrial boiler products currently available.
Product Parameters
Model
SZL6
SZL8
SZL10
SZL15
SZL20
SZL25
SZL30
Rated steam capacity(t/h)
6
8
10
15
20
25
30
Rated working pressure( Mpa )
1.25/1.6/2.5
Rated steam temperature（℃）
194/204/225
Feed water temperature （℃）
20
Themal efficiency (%)
>83
Exhaust flue gas
temperature(℃）
~150
Fuel type
Coal,biomass pellet,wood sawdust,bamboo chip,wood block,straw,jute, palm shell
Fuel consumption (kg/h)
1120
1450
2150
2200
2900
3650
4350
Max transportation weight(t)
22
25
28
30
35
40
45
Max transportation size(mm)
7700×2800×3450
7800×3100×3520
7900×3300×3640
10000×3200×3500
11000×3300×3500
17550×7300×8900
18230×7600×9200
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance

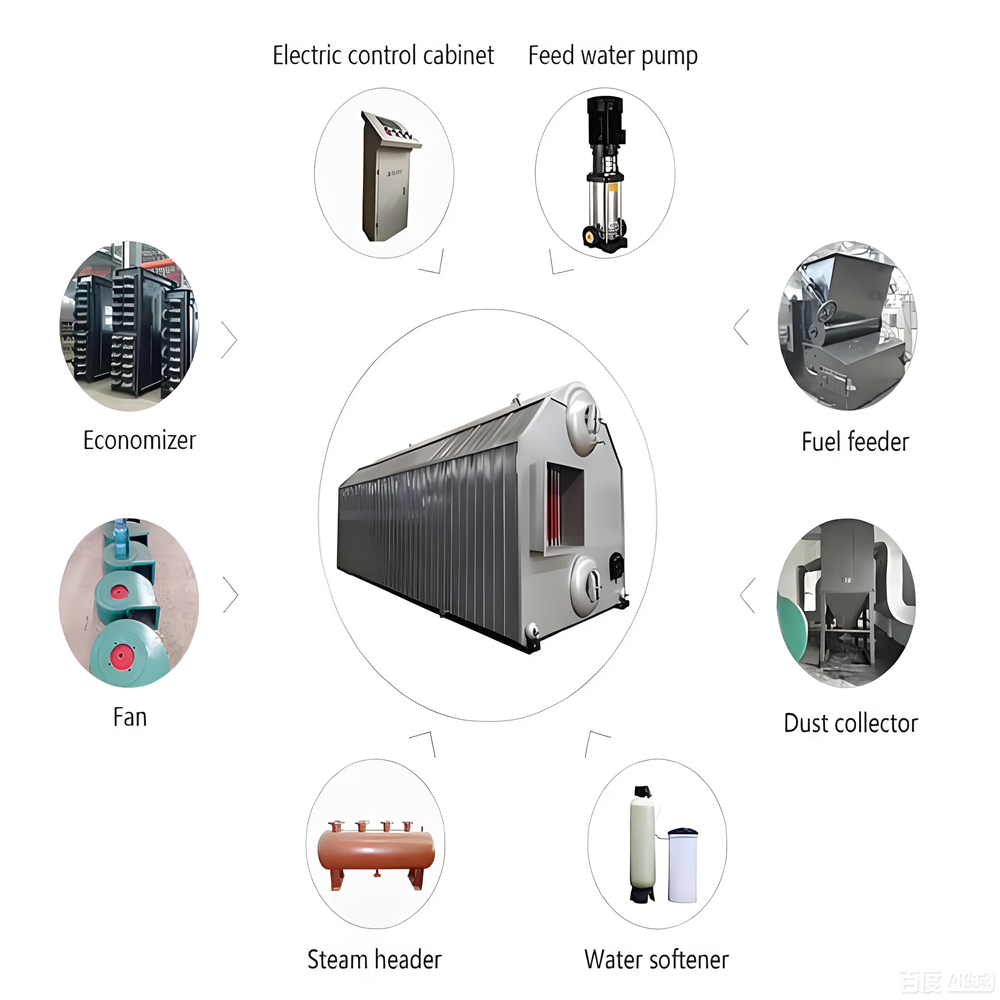

Boiler Accessories
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
Boiler Advantages
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance

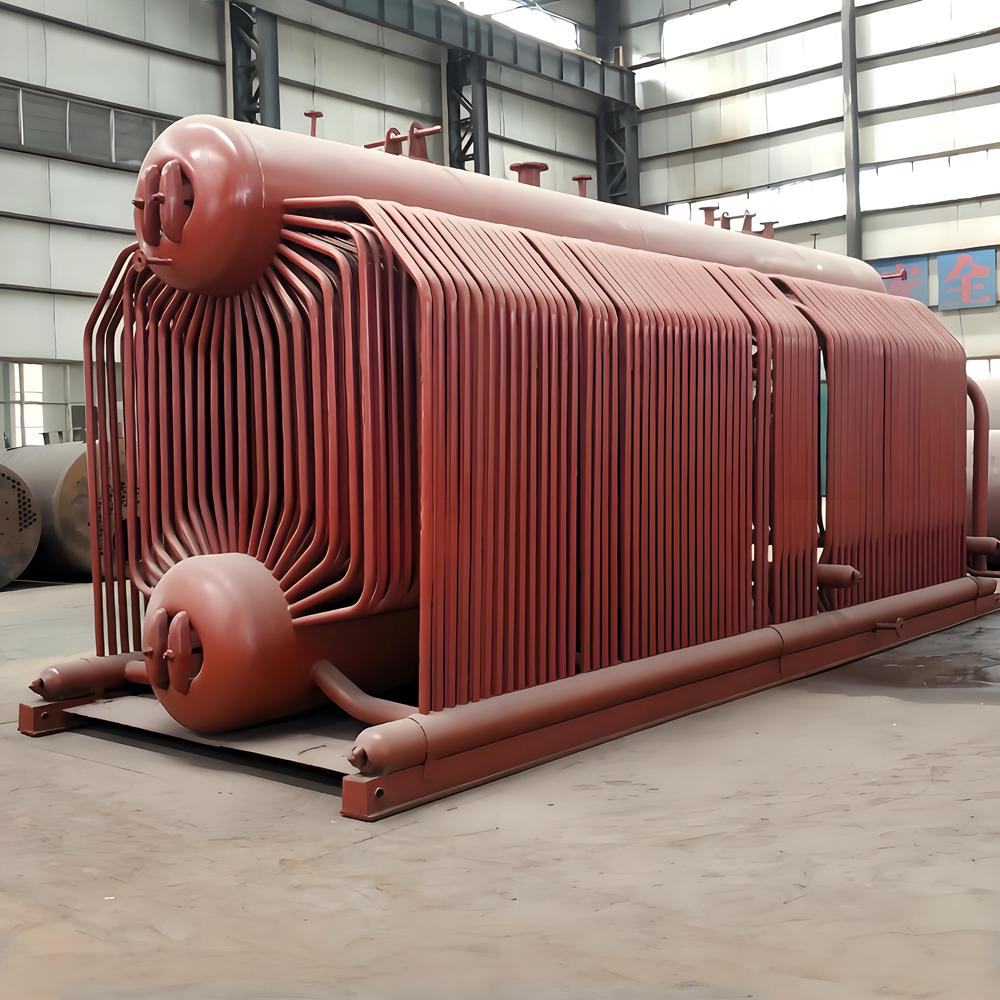

1. It adopts a double-drum structure, densely arranged convection tube bundles, and a membrane water-cooled wall design, ensuring sufficient radiative and convective heat transfer and high thermal efficiency.
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance

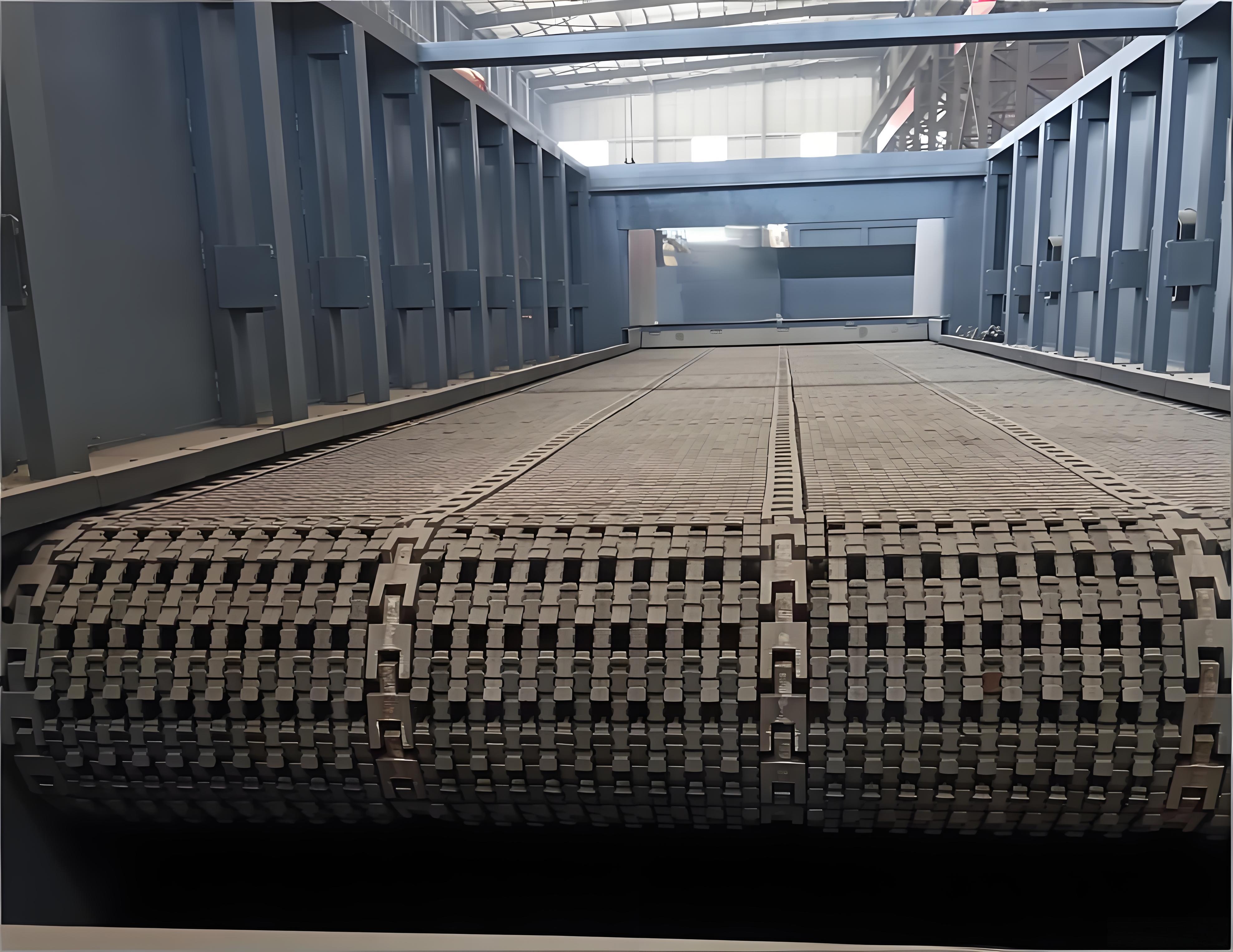

2.The chain grate furnace features compartmentalized air distribution and an arched design to optimize airflow, resulting in a large combustion chamber and high fuel burnout efficiency.
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance

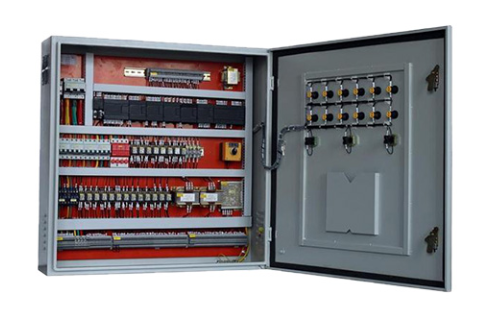

3.Highly automated and reliable in operation.Supports advanced technologies such as PLC automatic control and variable frequency speed regulation, resulting in simple operation, low failure rate, and long service life.

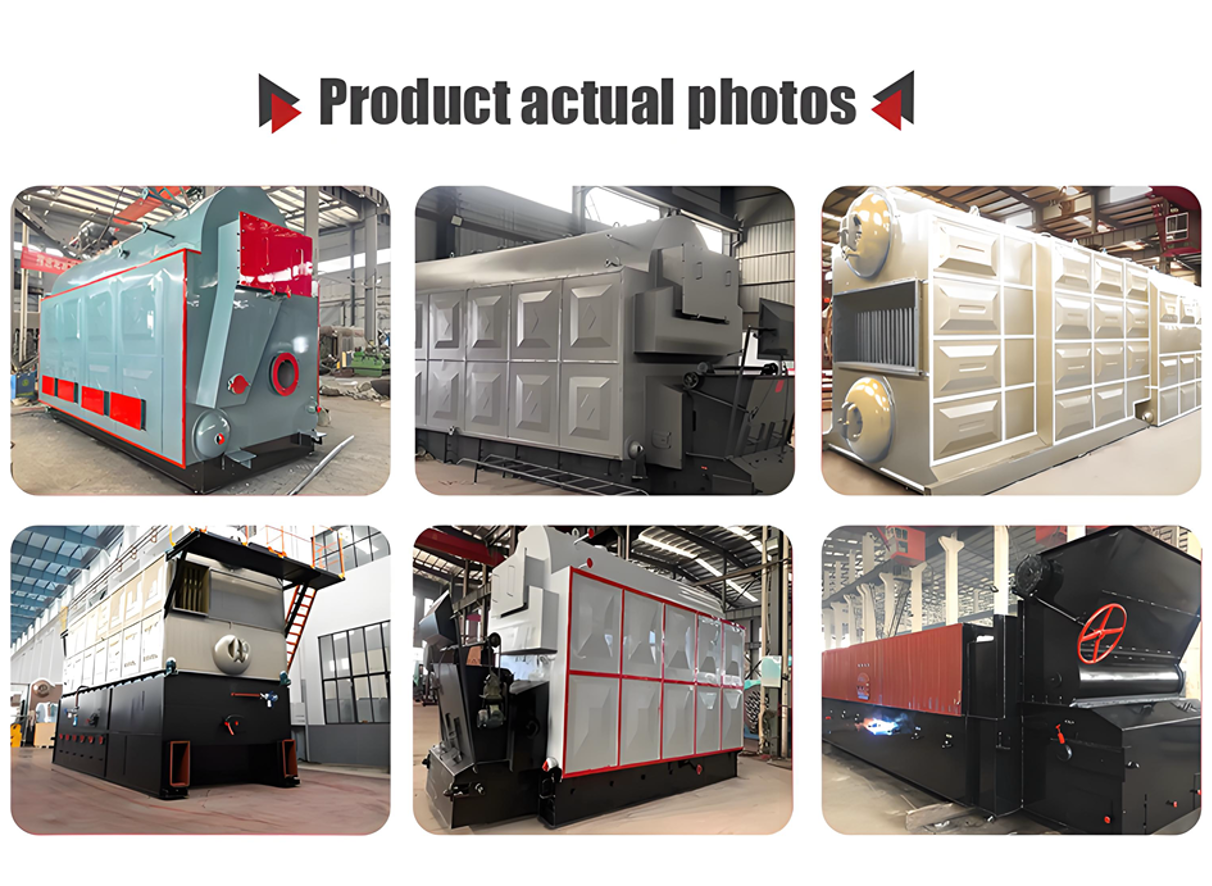

Boiler Display
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance

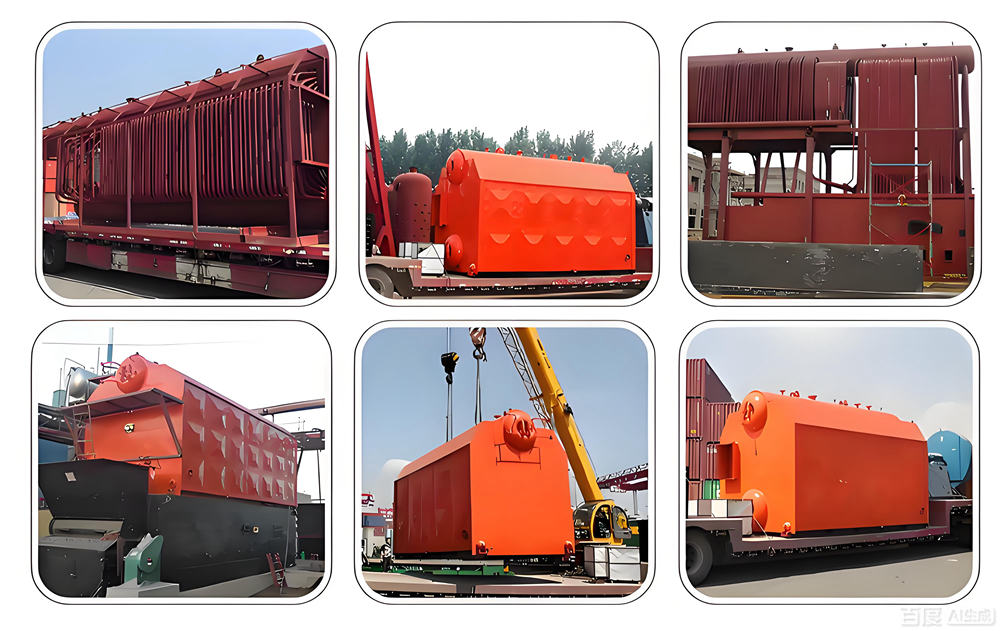

Packing&Shipping
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
Company Profile
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
AIX Boiler is a brand under Henan Shijie Industrial Equipment Co., Ltd. Established on January 7, 2019, with a registered capital of 35 million RMB and a National Enterprise Credit Code of 91411627MA47YRXXX9, the company primarily engages in the research,development, manufacturing, technical training, and import/export trade of mid-to-high-end boilers and pressure vessels.Headquartered in Taikang, Henan, known as the "Hometown of Boilers in China," the company boasts an 80,000-square-meter factory and over 100 employees.
The company mainly focuses on the research, development, production, and sales of biomass boilers, oil/gas boilers, electric boilers, and pressure vessels. Its products not only sell well in the domestic market but are also exported to more than ten countries and regions, including Morocco, Egypt, Ethiopia, Peru, Mongolia, the Philippines, and Indonesia. An excellent workforce, advanced technology, sophisticated equipment, and strict management are the cornerstones of the company's continued growth and the trust it has earned from its customers.
Factory Showcase
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
AIX Boiler - More than 20 core boiler patents, major supplier of electrical components in the industry, and drafter of Chinese boiler production standards.
Customer Visiting
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
Certifications
SZL 10 Tons Biomass Pellet Fired Steam Boiler With Good Performance
FAQ
Q1: How to get the best quote quickly?
A: We need to know the boiler capacity, the fuel you plan to use, and the required steam pressure to confirm the boiler model.
Customers need to provide their name, email address, and company name, and we will send a quote immediately. If you use WhatsApp, Skype, or WeChat, you can provide your ID for easier communication.
Q2: Why choose us?
A:1. Over 40 years of boiler manufacturing experience and 10 years of export experience. A-level boiler factory.
2. Free parts replacement within one year, lifetime maintenance of the main unit (excluding improper human operation).
Q3:What is your delivery time?
A: Generally, the delivery time is 15~25 days for boilers≤6Ton , 25~40 days for boilers>6Ton.
Q4:What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
