Specifications
Brand Name :
BF
Model Number :
BF-H-5K
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
4500$
Payment Terms :
T/T,L/C
Supply Ability :
500UNITS PER MONTH
Delivery Time :
20-25 DAYS

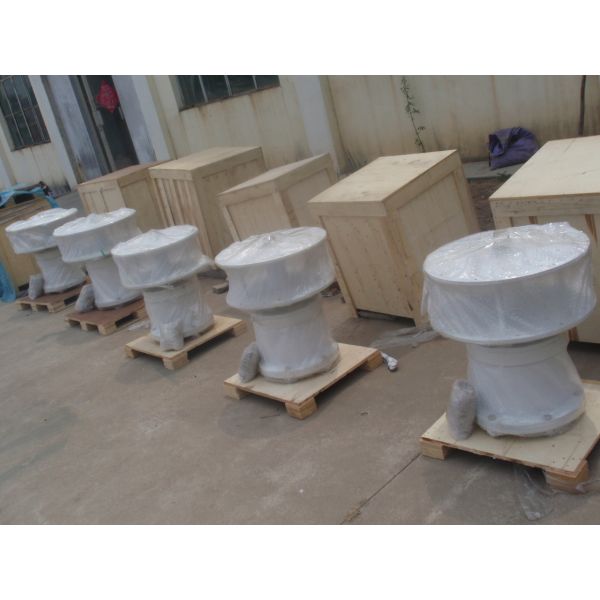

Packaging Details :
PLYWOOD CASE
Material :
Q235&FRP
Working tempreture :
-45-60℃
Rotor diameter (m) :
4
Height of blades :
3.6
Rated rotor speed (m/s) :
150r/min
Speed regulation method :
Electromagnetic control
Top weight (kg) :
485kg
Start up wind speed(m) :
3.2m/s
Sweep wind area(㎡) :
6.68
Survival wind speed(m) :
50
Rated wind speed(m/s) :
11
Description
Complete Permanent Magnet Alternator for 3kW-5kW VAWT – Direct Drive, 48V/110V/220V for Wind Turbine Parts
Our VAWT Wind Turbine Generator System delivers exceptional performance with high-efficiency vertical axis wind turbine operation and low startup wind speed requirements.
Generator Overview
Our Permanent Magnet Generator (PMG) is specifically engineered for vertical axis wind turbines (VAWT), offering superior performance in low to medium wind speed conditions. With a high-efficiency design and robust construction, this generator ensures reliable energy conversion, minimal maintenance, and long-term durability in both on-grid and off-grid wind power systems.
Complete Permanent Magnet Alternator for 3kW-5kW VAWT – Direct Drive, 48V/110V/220V for Wind Turbine Parts

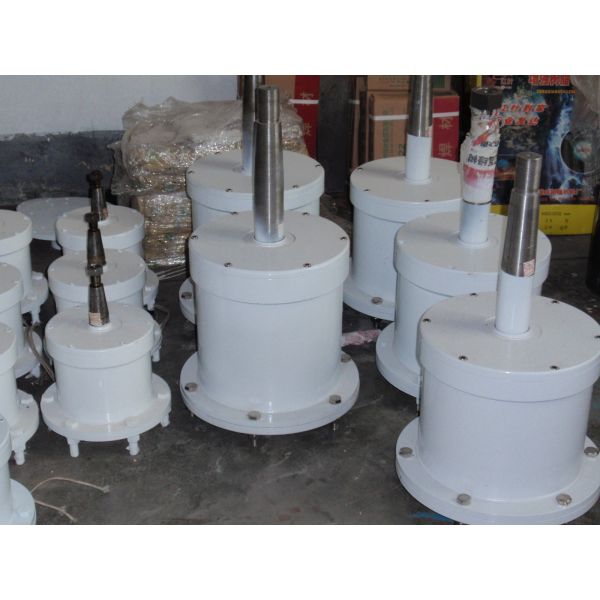

BF-H Series 5kW Generator Body
Complete Permanent Magnet Alternator for 3kW-5kW VAWT – Direct Drive, 48V/110V/220V for Wind Turbine Parts

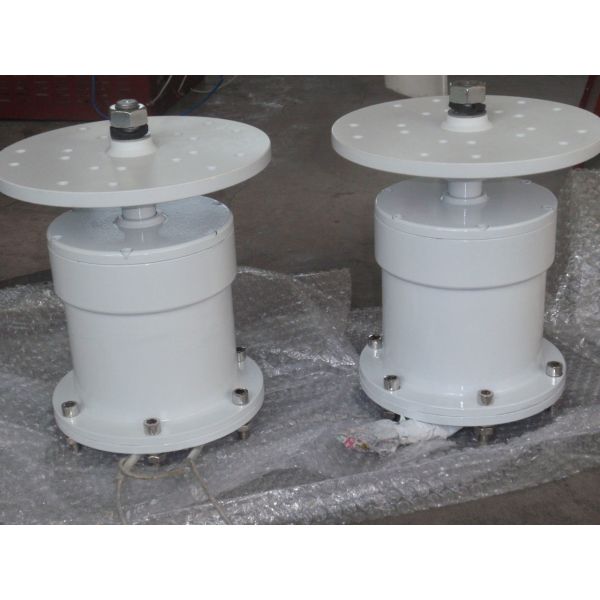

Generator Assembly
Complete Permanent Magnet Alternator for 3kW-5kW VAWT – Direct Drive, 48V/110V/220V for Wind Turbine Parts

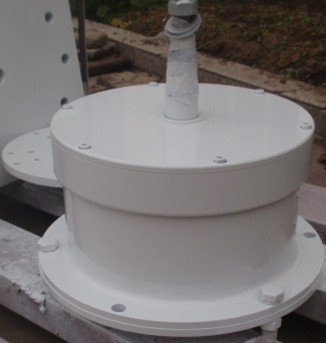

Internal Components
Generator Body Features
  • High-grade Neodymium Iron Boron permanent magnets
  • Each magnet tested for magnetic flux by authorized institutions
  • Engineered for low starting torque requirements
  • High generating efficiency through optimized internal structure
  • Robust construction for long-term reliability
Wheel Hub & Connectors
Precision-engineered steel wheel hub connects blades to generator with durable blade connectors constructed from Q235 plate featuring anti-corrosion surface treatment for extended performance life.
Complete Permanent Magnet Alternator for 3kW-5kW VAWT – Direct Drive, 48V/110V/220V for Wind Turbine Parts
Wheel Hub Assembly
Complete Permanent Magnet Alternator for 3kW-5kW VAWT – Direct Drive, 48V/110V/220V for Wind Turbine Parts
Installation Diagram
Complete Permanent Magnet Alternator for 3kW-5kW VAWT – Direct Drive, 48V/110V/220V for Wind Turbine Parts
Component Details
Construction Specifications
  • Precision-made steel wheel hub
  • Blade connectors made from Q235 plate
  • Anti-corrosion surface treatment
  • Durable performance in harsh environments
  • Optimized for reliable blade connection

General Design Features


-Type:Three-phase AC Permanent Magnet Synchronous Generator (PMSG).
- Structure:Outer rotor design (preferred) to allow direct connection to the turbine rotor, providing smooth rotation.
- Excitation: High-grade Rare Earth Magnets (e.g., NdFeB) for high efficiency and no external excitation current required.
- Torque Characteristics: Ultra-low cogging torque (coreless designs can achieve near-zero start-up torque) to ensure generation starts in light breeze conditions (as low as 2.5 m/s).


Key Parameter Descriptions

Electrical Parameters

- Output Voltage:The generator outputs raw three-phase AC. This is typically rectified to DC (e.g., 48V, 96V, 220V, or 380V DC) by the charge controller for battery charging or grid connection.
- Frequency: Variable frequency, proportional to the rotor speed (e.g., 0–50 Hz).
- Efficiency: Typically >90% at rated load for PMSG designs.
