Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT
Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT
Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT
Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT
Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT
Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT
Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT
Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT
Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT
Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT
Specifications
Brand Name :
BF
Model Number :
BF-H-3K
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
1599$
Payment Terms :
T/T,L/C
Supply Ability :
600UNITS PER MONTH
Delivery Time :
20DAYS
Packaging Details :
PLYWOOD CASE
Material :
Q235&FRP
Working tempreture :
-45-60℃
Rotor diameter (m) :
4
Height of blades :
3.6
Rated rotor speed (m/s) :
150r/min
Speed regulation method :
Electromagnetic control
Top weight (kg) :
330kg
Start up wind speed(m) :
3.2m/s
Sweep wind area(㎡) :
5.46
Survival wind speed(m) :
50
Rated wind speed(m/s) :
11
Description
Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT
Robust Permanent Magnet Alternator for Vertical Axis Wind Turbine Systems

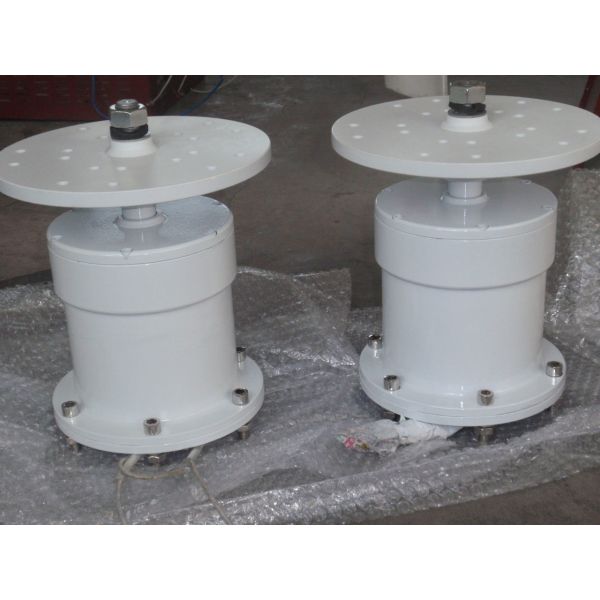

Generator Overview
Our Permanent Magnet Generator (PMG) is specifically engineered for vertical axis wind turbines (VAWT), offering superior performance in low to medium wind speed conditions. With a high-efficiency design and robust construction, this generator ensures reliable energy conversion, minimal maintenance, and long-term durability in both on-grid and off-grid wind power systems.
Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT
Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT

Internal Components
Generator Body Features
  • High-grade Neodymium Iron Boron permanent magnets
  • Each magnet tested for magnetic flux by authorized institutions
  • Engineered for low starting torque requirements
  • High generating efficiency through optimized internal structure
  • Robust construction for long-term reliability
Wheel Hub & Connectors
Precision-engineered steel wheel hub connects blades to generator with durable blade connectors constructed from Q235 plate featuring anti-corrosion surface treatment for extended performance life.
Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT

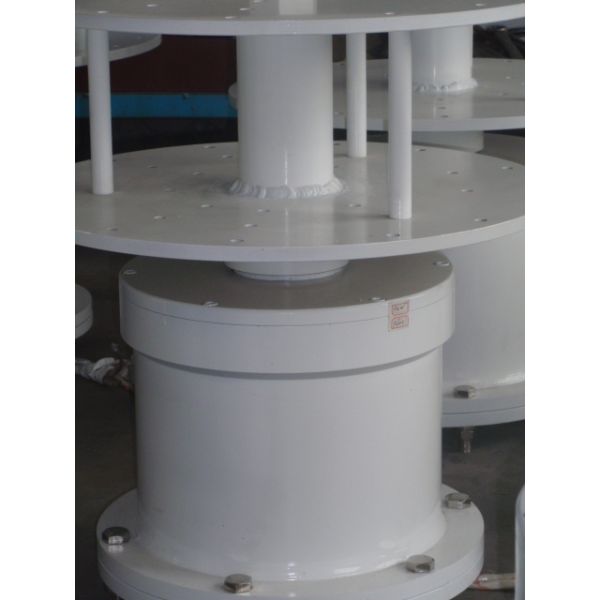

Wheel Hub Assembly
Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT
Installation Diagram
Low RPM and start up Permanent Magnet Generator – Optimized for Vertical Axis Wind Turbine VAWT
Component Details
Construction Specifications
  • Precision-made steel wheel hub
  • Blade connectors made from Q235 plate
  • Anti-corrosion surface treatment
  • Durable performance in harsh environments
  • Optimized for reliable blade connection
