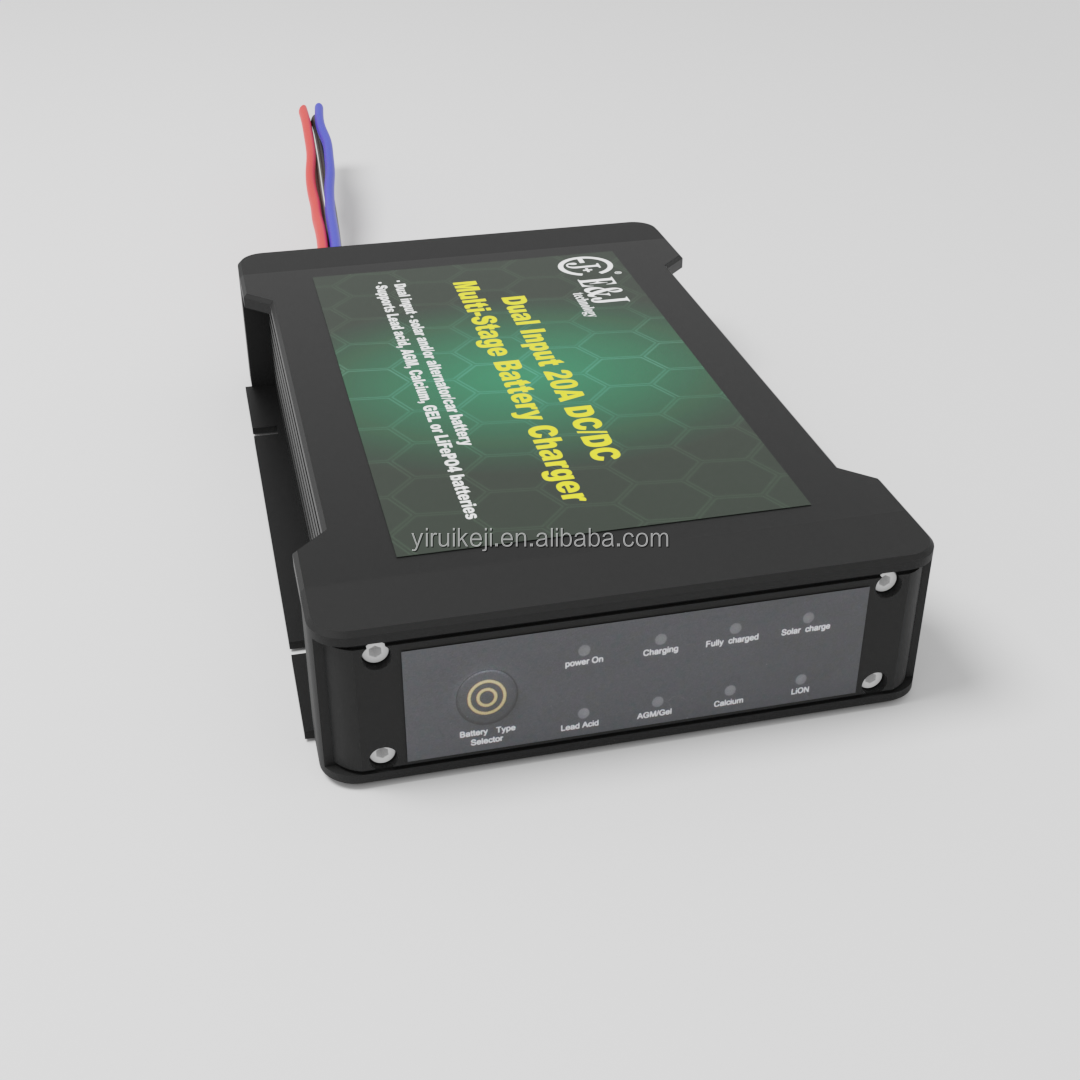

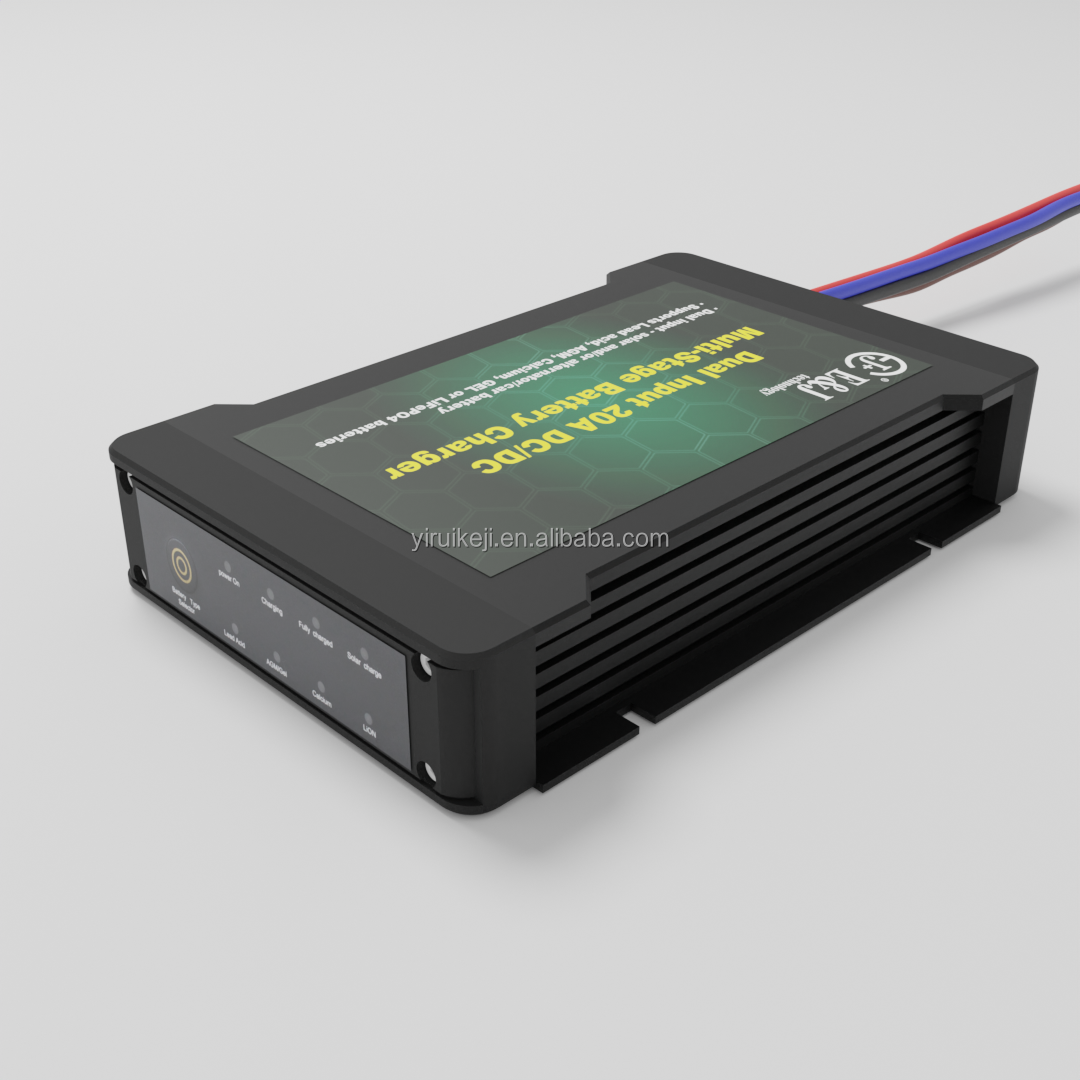

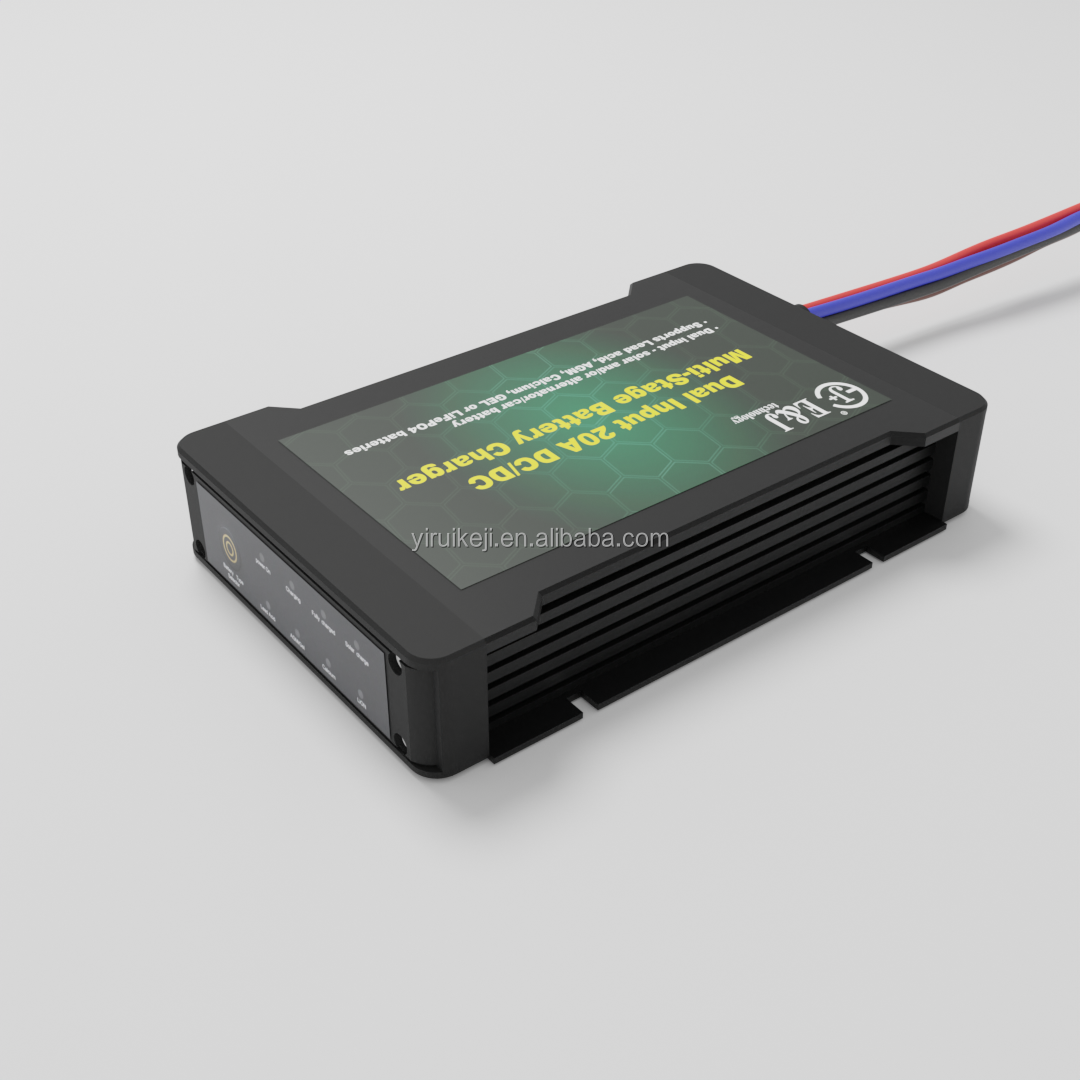

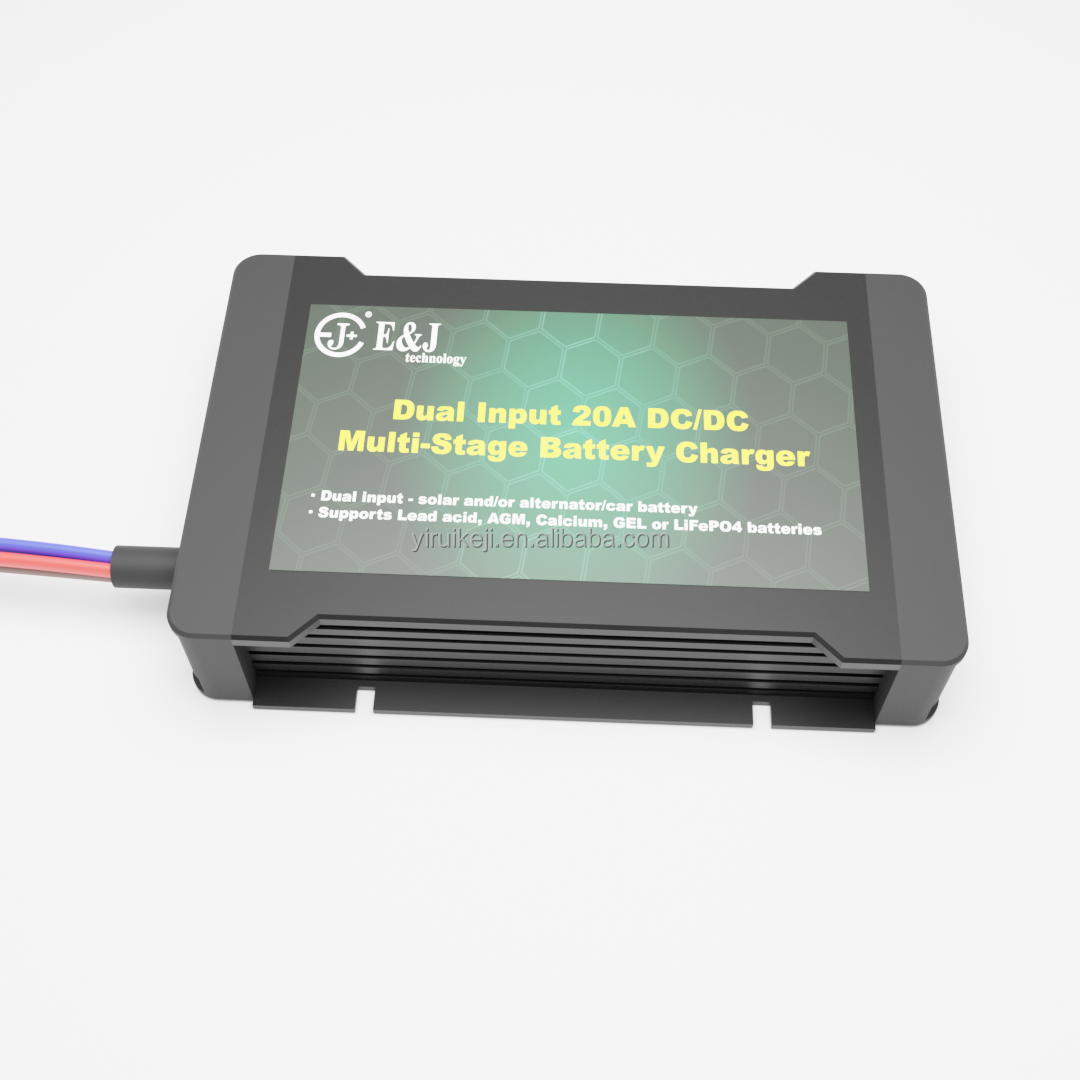

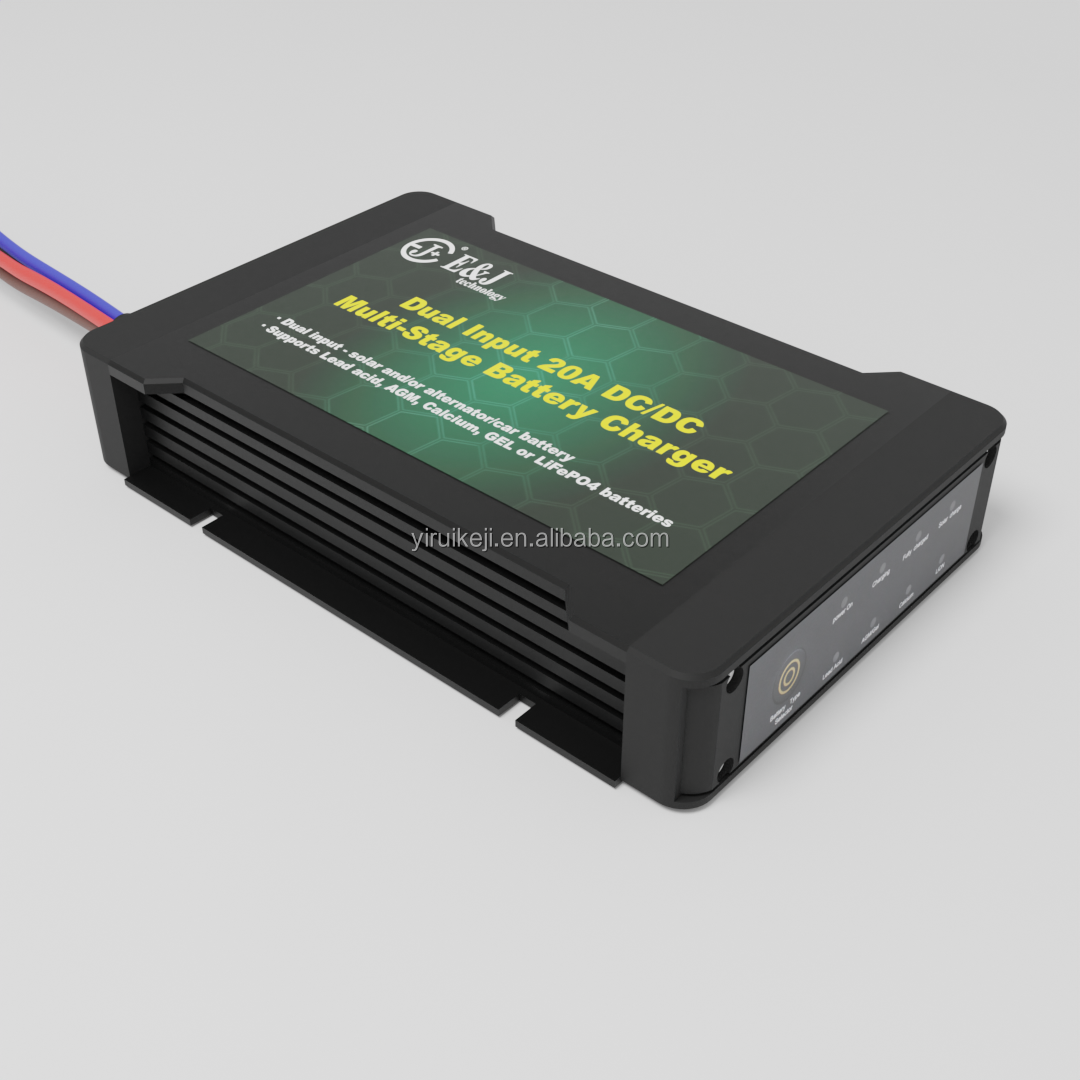

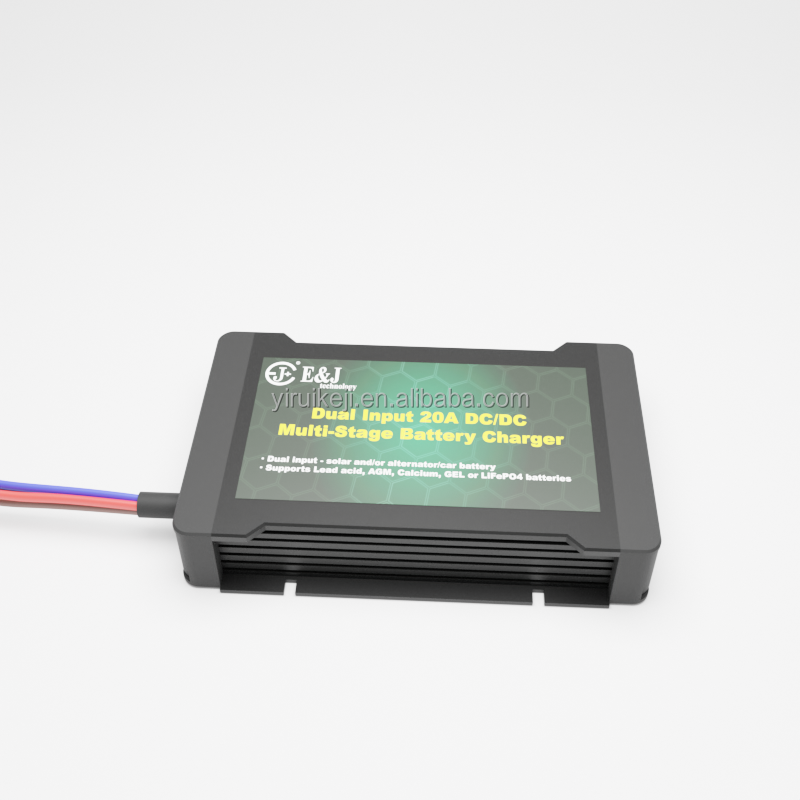

Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Specifications
Output Current :
20A
Application :
Electric Vehicle, recharge the batteries and other load
Material :
Aluminium
Model Number :
EJ-DCDC20
Interface Type :
DC 3.5 mm
Place of Origin :
Guangdong, China
Output Type :
DC/AC
Connection :
Plug In
Color :
Black
Cable Length :
1 m, 3 m, 5m
Usage :
Charging
Frequency :
50 Hz
Use :
Vehicles & solar panels
Output Voltage :
12 V
Brand Name :
ENJ
Warranty :
12 Months
Plug Standard :
CN
Price :
$60-75
MOQ :
5
Description
Feature & Benefits

DUAL INPUT 20A IN-VEHICLE SOLAR PANELS DC BATTERY CHARGER

casing made of heavy-duty aluminum and a mounting bracket

Monitoring and control using microchips

fully autonomous, multi-stage charging at high frequency

Longer battery life is a result of pulse mode technology, which lowers temperature, evens electrolyte consistency, and minimizes oxidation.

simple chemistry with a push button choose from traditional flooded Lead-Acid, AGM/Gel, Calcium, LifePo4, Deep Cycle, and VRLA batteries.

LED indicators that display the state of charge are used to control power output and monitor internal charger temperature.

protection against overcharging, short circuits, and extreme temperatures

Protection from reverse polarity: Reverse polarity protection for both the input and the output

Thermostatic overload safety

prevention of solar input overload

When this option is chosen, the charger will continue to use this battery type until it is changed. Power cut memory function

Product Description
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Dual Input 20A 30A 40A 50A 60A DC To DC Multi Stage Battery Charger With MPPT
Specification
Model: EJ-DCDC20 Model: EJ-DCDC40
Type Multi Stage Multi Stage
DC Battery Input 12.5 - 16.0V 12.5 - 16.0V
Solar Input 16.0 - 25.0V 16.0 - 25.0V
Output I Charging Voltage 14.4 - 15.4 V (stops charging when alternator output or vehicle battery below 12.5V 14.4 - 15.4 V (stops charging when alternator output or vehicle battery below 12.4V
DC Output Current 20A 40A
Solar Output Current 20A 40A
Minimum Start Voltage 2.5V - for battery being charged 2.5V - for battery being charged
Charge Control
Soft Start Yes Yes
Soft Charge Current 20A 40A
Bulk Charge Voltage 14.7V (AGM/Gel), 13.5V
(Lead Acid), 15.4V (Calcium), 14.4V (LiON)		 14.7V (AGM/Gel), 14.4V
(Lead Acid), 15.4V (Calcium), 14.4V (LiON)
Absorption Constant volta ge with automatic
amperage control		 Constant voltage with automatic
amperage control
Float Charge Current 13.SV (AGM/Gel), 14.4V
(Lead Acid), 13.5V (Calcium)		 13.SV (AG M/Gel), 13.SV
(Lead Acid), 13.5V (Calcium)
Float Charge Current 100mA 100mA
Battery Range 18 to 250Ah 60 to 500Ah
Recommended Cable Cross-Section
0 - 1 metres 10 AWG 8 AWG
1 - 5 metres 8 AWG 6 AWG
5 + metres 6 AWG 4 AWG
