Specifications
Output Current :
60A
Application :
Electric Vehicle, recharge the batteries and other load
Material :
Aluminium
Interface Type :
DC 3.5 mm
Place of Origin :
Guangdong, China
Output Type :
DC/AC
Brand Name :
ENJ
Warranty :
12 Months
Plug Standard :
CN, EU
Price :
$200
Connection :
Plug In
Color :
Black
keywords :
DC-DC Charger
Cable Length :
1 m, 3 m, 5m
Usage :
Charging
Frequency :
50 Hz
Use :
Vehicles & solar panels
Model Number :
EJDC60A
Output Voltage :
14.6V
MOQ :
1
Description
Certified CE/ROHS Multi-Voltage Smart for DC-DC Charger Isolated Design MPPT Plug-In Connection ENJ Aluminium Model

DUAL INPUT 60A IN-VEHICLE SOLAR PANELS DC BATTERY CHARGER

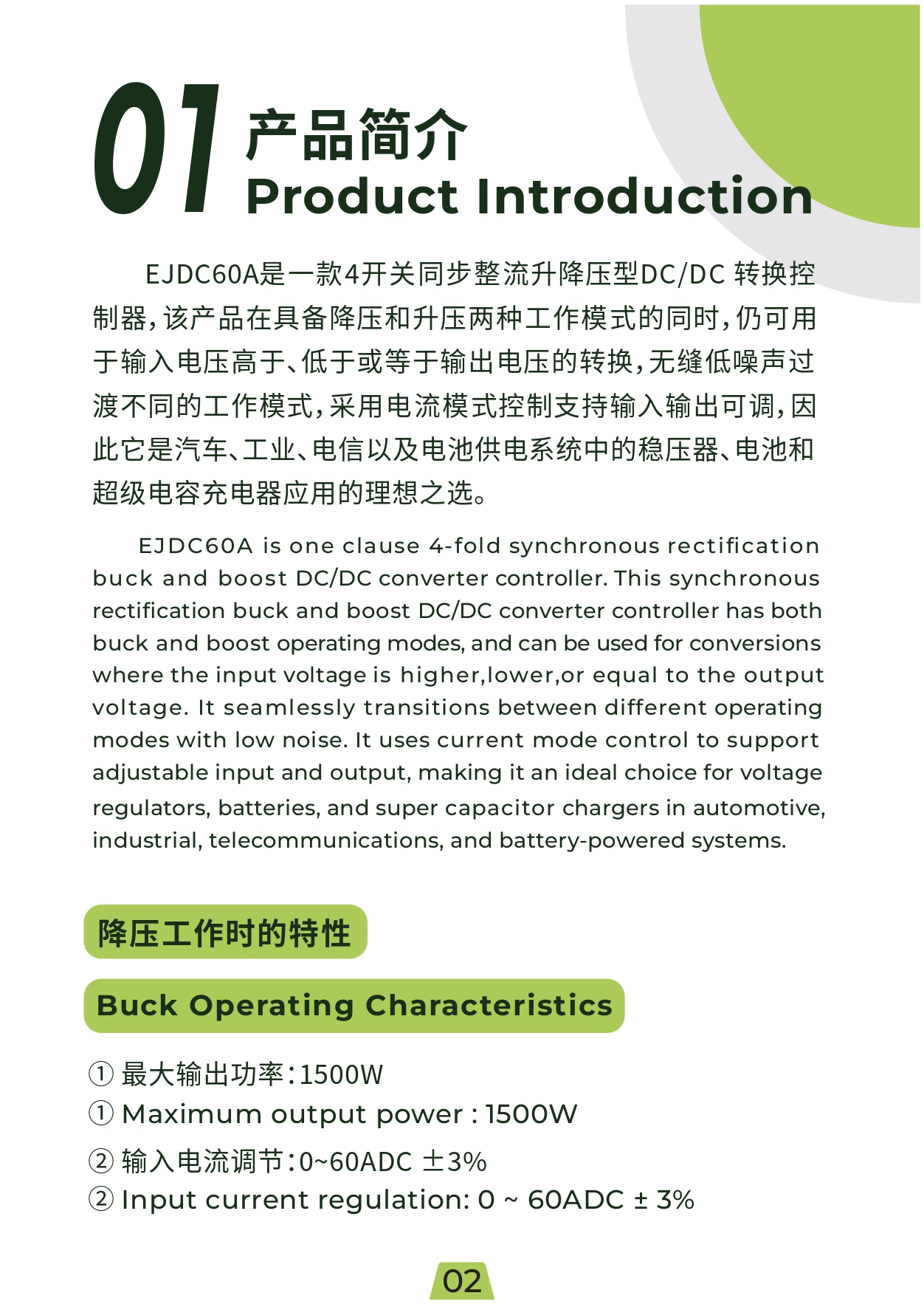

EJDC60A is one clause 4-fold synchronous rectification buck and boost DC/DC converter controller. This synchronous rectification buck and boost DC/DC converter controller has both buck and boost operating modes, and can be used for conversions where the input voltage is higher,lower,or equal to the output voltage. It seamlessly transitions between different operating modes with low noise. It uses current mode control to support adjustable input and output, making it an ideal choice for voltage regulators, batteries, and super capacitor chargers in automotive, industrial, telecommunications, and battery-powered systems.

Product Description
Multi Voltage Smart DC-DC Battery Chargers Isolated Design MPPT Plug In Connection
Multi Voltage Smart DC-DC Battery Chargers Isolated Design MPPT Plug In Connection
Multi Voltage Smart DC-DC Battery Chargers Isolated Design MPPT Plug In Connection
Multi Voltage Smart DC-DC Battery Chargers Isolated Design MPPT Plug In Connection
Multi Voltage Smart DC-DC Battery Chargers Isolated Design MPPT Plug In Connection
Multi Voltage Smart DC-DC Battery Chargers Isolated Design MPPT Plug In Connection
Multi Voltage Smart DC-DC Battery Chargers Isolated Design MPPT Plug In Connection
Specification
Model: EJ-DC40A Model: EJ-DC60A
Type Multi Stage Multi Stage
DC Battery Input 12.5 - 16.0V 12.5 - 16.0V
Solar Input 16.0 - 25.0V 16.0 - 25.0V
Output I Charging Voltage 14.4 - 15.4 V (stops charging when alternator output or vehicle battery below 12.5V 14.4 - 15.4 V (stops charging when alternator output or vehicle battery below 12.4V
DC Output Current 40A 60A
Solar Output Current 40A 60A
Minimum Start Voltage 2.5V - for battery being charged 2.5V - for battery being charged
Charge Control
Soft Start Yes Yes
Soft Charge Current 40A 60A
Bulk Charge Voltage 14.7V (AGM/Gel), 13.5V
(Lead Acid), 15.4V (Calcium), 14.4V (LiON)		 14.7V (AGM/Gel), 14.4V
(Lead Acid), 15.4V (Calcium), 14.4V (LiON)
Absorption Constant volta ge with automatic
amperage control		 Constant voltage with automatic
amperage control
Float Charge Current 13.SV (AGM/Gel), 14.4V
(Lead Acid), 13.5V (Calcium)		 13.SV (AG M/Gel), 13.SV
(Lead Acid), 13.5V (Calcium)
Float Charge Current 100mA 100mA
Battery Range 60 to 500Ah 80 to 700Ah
Recommended Cable Cross-Section
0 - 1 metres 10 AWG 8 AWG
1 - 5 metres 8 AWG 6 AWG
5 + metres 6 AWG 4 AWG
