Stainless Steel Wire Mesh Extruder Filter Screen Pack Single Layer Or Multilayer
Stainless Steel Wire Mesh Extruder Filter Screen Pack Single Layer Or Multilayer
Stainless Steel Wire Mesh Extruder Filter Screen Pack Single Layer Or Multilayer
Stainless Steel Wire Mesh Extruder Filter Screen Pack Single Layer Or Multilayer
Stainless Steel Wire Mesh Extruder Filter Screen Pack Single Layer Or Multilayer
Stainless Steel Wire Mesh Extruder Filter Screen Pack Single Layer Or Multilayer
Specifications
Material :
Stainless Steel
Filtering Rate :
12*64,24*110,20mesh,40mesh,60mesh,80mesh
Diameter :
200mm,170mm etc
Mesh type :
Dutch Weave Type
Feature :
Flexible Working
Layers :
Single Layer Or Multilayer
Application :
Recycling Plastic And Rubber
Tooling :
With Charge
Shipping :
By Sea Or By Express
Main Marking :
Europe,America,Australia,Asia,Africa
Price :
$0.2-$3.6
Brand Name :
BM
Model Number :
BM-SCREEN
Certification :
CE,CCC
Place of Origin :
China
MOQ :
1 Piece
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
5000 Pcs Per Week
Delivery Time :
10-15 Days After Get The Deposite
Packaging Details :
Water-Proof Plastic Film And Wooden Case
Description

Stainless Steel Wire Mesh For Extruder Screen/Screen Pack


Stainless Steel Wire Mesh Information
Stainless steel wire mesh belong to wire mesh products.
Single disk
Double disk

When you have to order Extruder screens please provide following information. Example as below.
Wire mesh screen dia: 120mm
Which mesh (Single disc) : 20mesh
Multiple meshes together: 20+40+80+20 meshes (specify with frame or just spot welded)

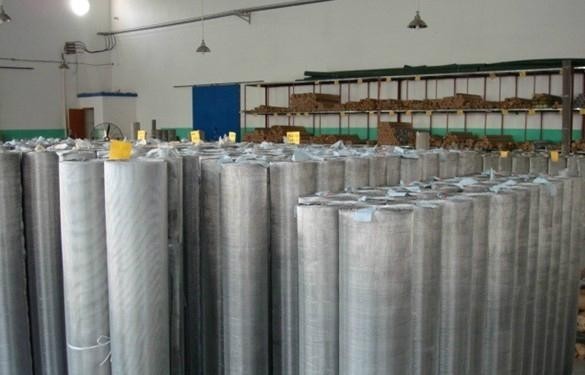

Stainless steel wire mesh by rolls

Stainless Steel Wire Mesh Extruder Filter Screen Pack Single Layer Or Multilayer


Adhering to stringent quality control procedures we offer you state of the art equipment with robust design, reliability and tremendous performance. Our circular screen come with smooth screening surface with no sharp edges, burrs or acute angles, high durability, stable under tension and are uniformly cut by specifically developed power press, to avoid uneven edge. We assure to provide, circular screens which are customized resulting in absolute no wastage.

Extruder Screens/ Wire Mesh Screen Filter
Product Specifications
STANDARD EXTRUDER SCREEN SPECIFICATION
MESH
WIRE DIA. MM
APERTURE SIZE MM
OPEN AREA
10 X 10
0.711
1.829 MM
51.8
14 X 14
0.457
1.357 MM
55.9
16 X 16
0.457
1.131 MM
50.7
20 X 20
0.559
0.711 MM
31.4
20 X 20
0.457
0.813 MM
41.0
24 X 24
0.376
0.682 MM
41.4
30 X 30
0.376
0.531 MM
34.2
30 X 30
0.310
0.536 MM
40.0
40 X 40
0.274
0.361 MM
32.3
50 X 50
0.193
0.335 MM
43.6
60 X 60
0.193
0.230 MM
29.8
80 X 80
0.122
0.196 MM
37.9
100 X 100
0.102
0.152 MM
36.0
120 X 120
0.091
0.120 MM
31.8
150 X 150
0.071
0.088 MM
29.6
200 X 200
0.050
0.077 MM

36.76
250 X 250
0.040
0.062 MM
36.76
300 X 300
0.040
0.045 MM
27.83
325 X 325
0.035
0.043 MM
30.49
400 X 400
0.028
0.036 MM
31.25
500 X 500
0.025
0.026 MM
25.79

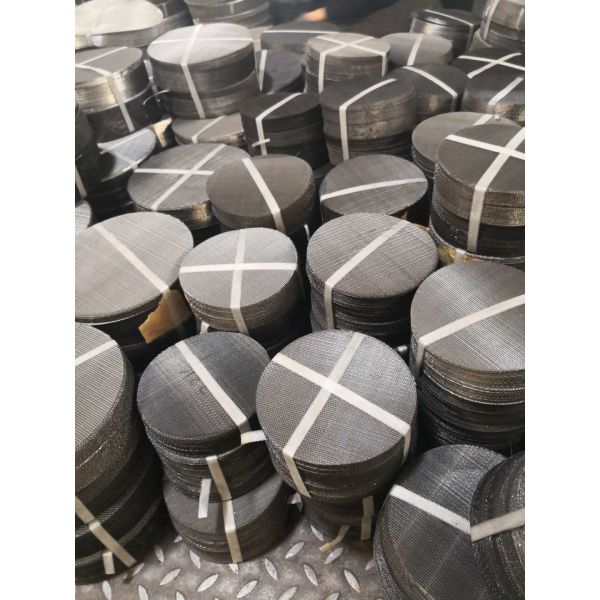

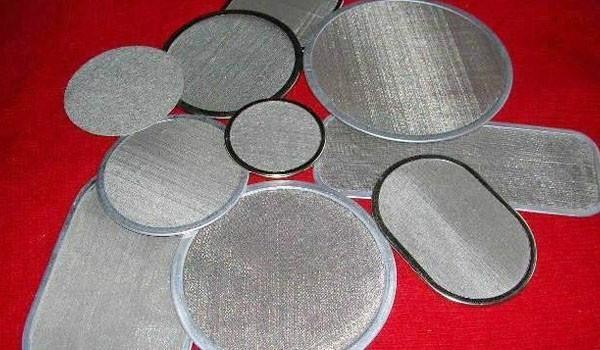

Stainless Steel Wire Mesh For Extruder Screen/Screen Pack Picture

Stainless Steel Wire Mesh Extruder Filter Screen Pack Single Layer Or Multilayer

we are engaged in manufacturing and supplying a distinguished range of Extruder Screen. The offered product is made of anti-corrosive raw materials and progressive technology that can hold up to multiple environments and uses. The offered products are used in plastic melt filtration process and are of true highest quality. Furthermore, we provide these products in various configurations as per the requirements of our clients.


We are factory,so any quantity would be accept.

  • extruder screens:
    • Stainless steel,dia,250mm,12/64 mesh (wire 0.6/0.4mm)
    • stainless steel.dia,250mm,24/110mesh (wire 0.35/0.25mm)
    • 30/150,40/200...Stainless Steel Wire Mesh Extruder Filter Screen Pack Single Layer Or Multilayer

Features of Circular Extruder Screen

  • Our extruder screens are available in different size, variants and specifications according to precise requirement of customers
  • Our products are highly durable with robust structure
  • We manufacture products by considering international quality standards and it becomes anti-abrasive & anti-corrosive in nature

Application of Extruder Screens


The major application of Extruder screen is, it keeps away mixing of foreign particles in finally equipped extrusion product and provide a clean and clear extrusion to use.
Circular Extruder Screen are used in various industries as following:

  • Plastic Processing Industry
  • Chemical Industry
  • Rubber Industry
  • Pharmaceutical Industry and many more
  • Screen pack

Stainless Steel Wire Mesh Extruder Filter Screen Pack Single Layer Or Multilayer
