High pressure centrifugal blower fan with high speed for industrial

High pressure centrifugal fan is an model of centrifugal fan, the working principle and centrifugal cooling fan, has been widely used in conveying material, its characteristic is belong to the small flow, high wind pressure, convulsions, air distribution effect is good, most of the manufacturers on the market at present production of series of A type and D type two kinds, A type is directly type motor drive, D type is coupling transmission.

1. The high pressure centrifugal fan is a single suction type with a forward bending impeller.

2. According to the rotation direction of the impeller, the centrifugal blower fan can be made into right-handed and left-handed rotation. From one end of the motor, the impeller rotates clockwise to the right fan, represented by "right"; Counterclockwise rotation is the left cyclone, denoted by "left".

3. The outlet Angle of the high pressure centrifugal fan can be made into 0°, 45°, 90°, 135°, 180° and 225°. Our standard products are 0°, 45°, 90° three kinds, the rest of the Angle can be made according to user needs.

4. The transmission mode of high pressure centrifugal fan is A/D:

Type A: motor direct drive, compact structure, simple maintenance. Machine number 3.5~6.3# adopts this transmission mode

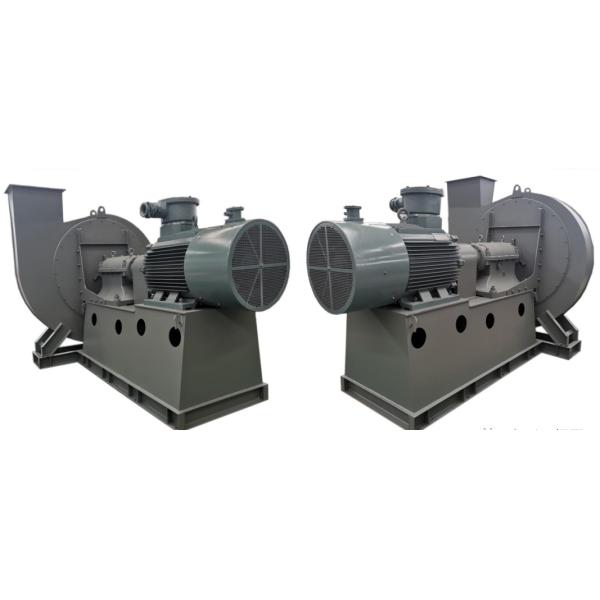

Type D: coupling drive, the structure form is integrated: that is, the fan, transmission group and motor are all assembled on the same rigid base, thus reducing the customer's installation difficulty, greatly shorten the site installation, debugging period

Key Features

• Impeller diameter: 80~3500 mm

• Speed of mainshaft: 760~2900 rpm

• Pressure range: 9000~25425 Pa

• Flow range: 3297~43305 m3/h

• Air Temperature: 20~1000 Celsius degree

• Material: Cast Iron, Carbon Steel, Stainless Steel.

• Efficiency: 70%-90%
