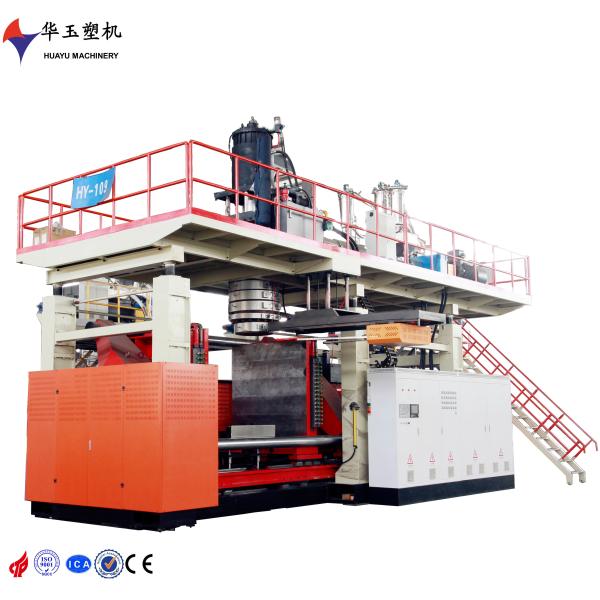

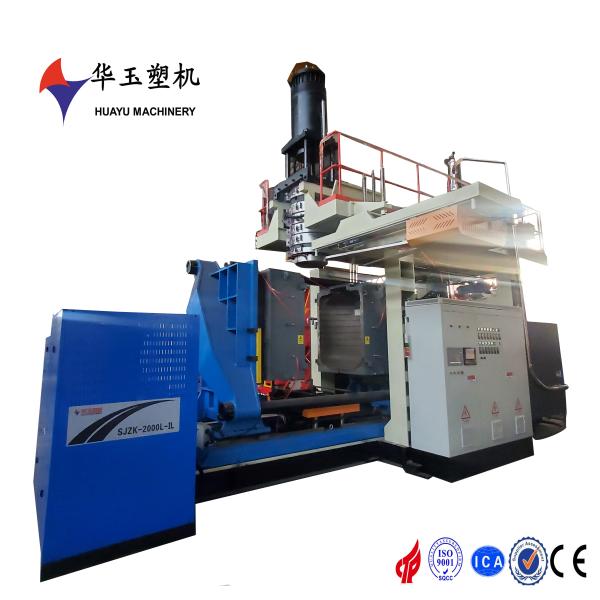

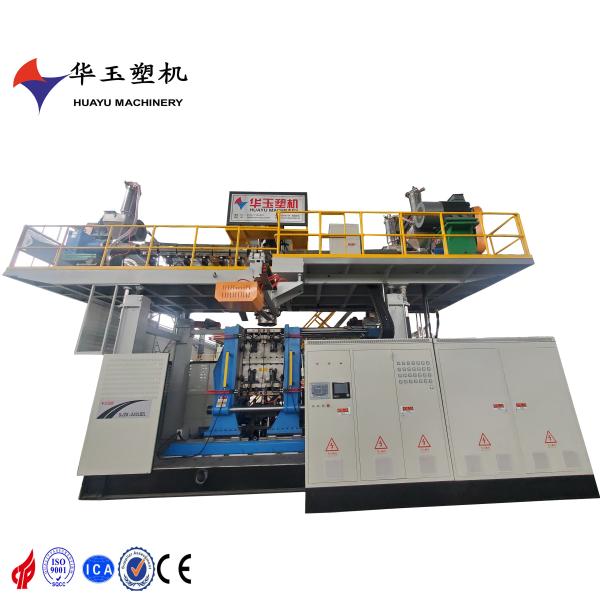

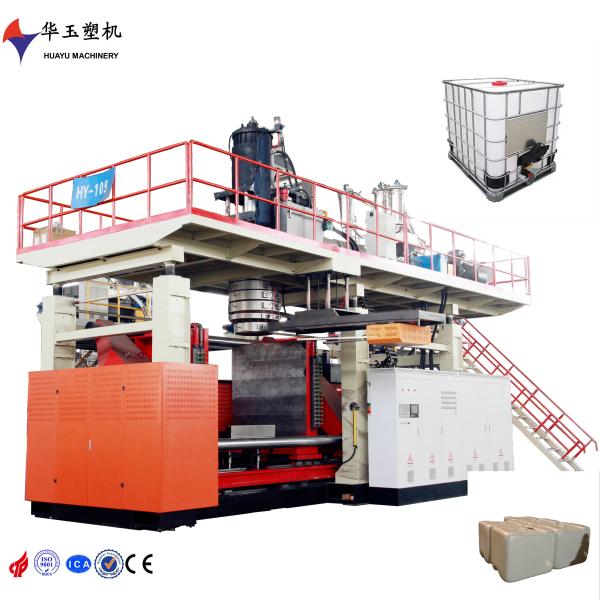

5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System
5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System
5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System
5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System
5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System
5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System
5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System
5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System
Specifications
Brand Name :
HUAYU
Model Number :
HYBM5000-8
Certification :
ISO9001 CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
600000 USD
Payment Terms :
L/C,T/T
Supply Ability :
1SET 120DAYS
Delivery Time :
4 MONTHS
Packaging Details :
be disassembled into many parts for container transportation
Color :
Customied
Stretching Stroke :
according to products
Mold Stroke :
1000mm
Application Field :
Liquid Packaging
Condition :
New
Range :
WATER tank
Layers :
4 layers
Platen Size :
1800*2100mm
Clamping Force :
800kn
Blowing Type :
Extrusion Blow Moulding
Clamping Cylinder :
320+160*2
Parison Control :
MOOG 200point
Hopper Material :
stainless steel
Average Power Consumption :
300kw
Capacity Range :
500--5000L,8layers
Description

This energy-saving blow molding machine with a 5000L capacity and 8-layer co-extrusion is designed to optimize energy usage. The water tank system ensures rapid and effective cooling, reducing energy consumption and operational costs. The machine's advanced control system provides precise control over the molding process, ensuring high-quality products. Its durable construction and reliable performance make it suitable for large-scale production environments. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

Clamping System

platen size

2400*2500*70mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

350+200*2

clamping cylinder stroke

2200mm

clamping force

3000KN

distance between platens

1600-4000mm

寸max. mould size

1800*2500mm(W*H)

blowing and cooling system

stretching stroke

according to products

blow pin up/down stroke

600mm

air seat stroke

400mm

maximum air pressure

0.8Mpa

air consumption

3m3/min

Cooling method

Circulating water

Water pressure

0.3MPa

Cooling water consumption

75m3/h
