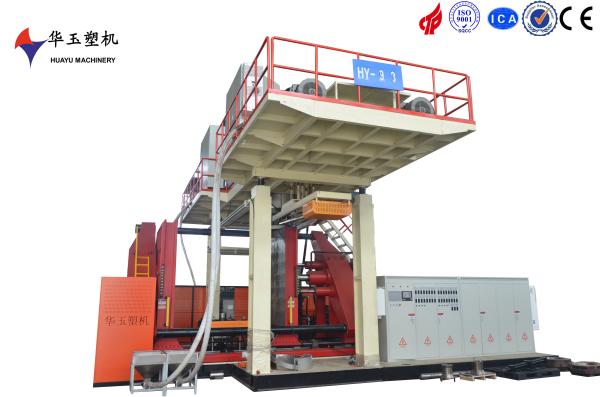

HY 500L-2000L 4 LAYERS BLOW MOULDING MACHINE with 55*4kw Extruder Motor
HY 500L-2000L 4 LAYERS BLOW MOULDING MACHINE with 55*4kw Extruder Motor
Specifications
Brand Name :
HUAYU
Model Number :
HY 500L-2000L 4 LAYERS BLOW MOULDING MACHINE
Certification :
CE, ISO9001
Place of Origin :
SHANDONG WEIFANG
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
4 sets per months
Delivery Time :
4 months
Packaging Details :
The machine will be disassembled into many parts for container transportation.
Accumulator capacity :
60kg
Extruder motor :
55*4kw
Screw diameter :
90*4mm
Screw L/D ratio :
30:1
Capacity range: :
500-2000L
Servo motor: :
48kw
Description

Capacity range: 500-2000L

Machine dimension : 12*9.5*7.5M

Average consumption: 220kw

Total power: 452kw

Accumulator capacity: 60KG

Extruder motor: 55kw*4

Screw diameter: 90MM*4

Screw L/D ratio: 30:1

Plasticizing capacity: 450KG/H

Platen size: 1800*2100MM

Platen distance: 1100-3000MM

Clamping force: 1800KN

Servo motor: 48kw
