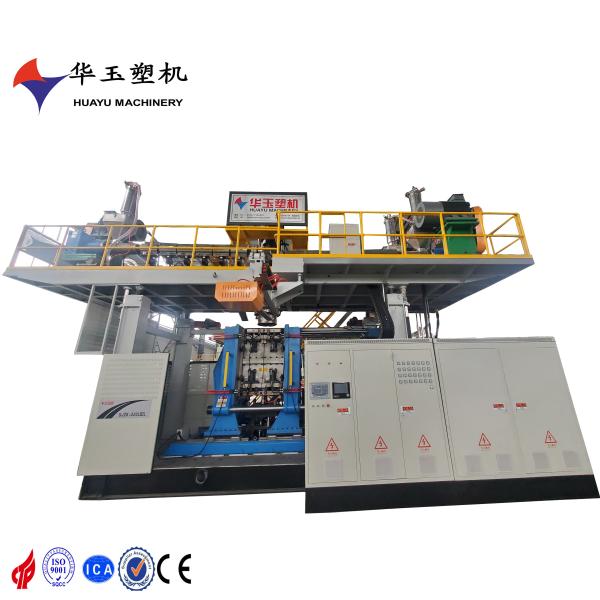

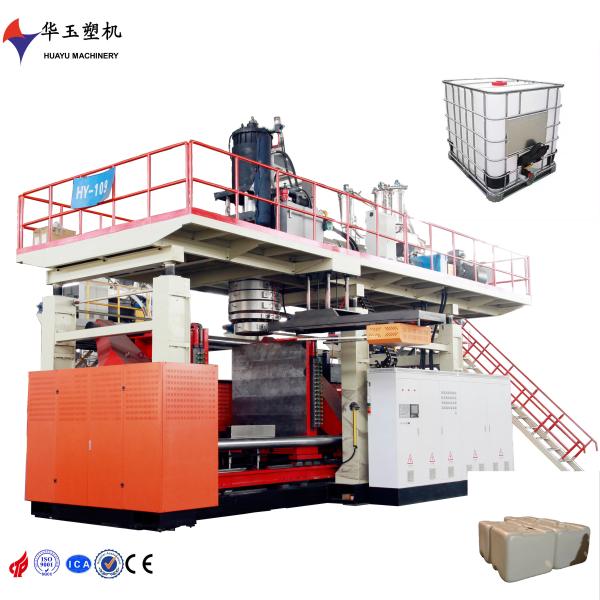

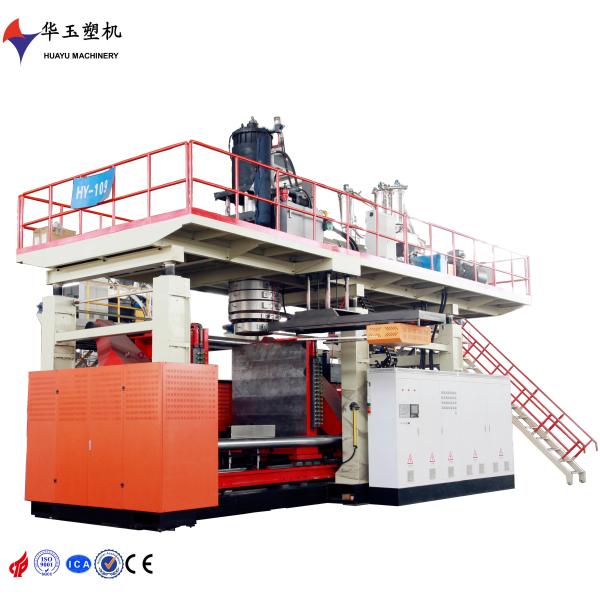

3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine with Rapid Cooling System
3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine with Rapid Cooling System
3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine with Rapid Cooling System
3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine with Rapid Cooling System
3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine with Rapid Cooling System
3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine with Rapid Cooling System
3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine with Rapid Cooling System
3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine with Rapid Cooling System
Specifications
Brand Name :
HUAYU
Model Number :
HYBM3000-8
Certification :
IISO9001 CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
440000 USD
Payment Terms :
T/T,L/C
Supply Ability :
1SET 120DAYS
Delivery Time :
4 MONRHS
Packaging Details :
be disassembled into many parts for container transportation
Application :
Water Tank Production
Material :
HDPE
Platen Distance :
2300-5500MM
Clamping Cylinder Stroke :
2000mm
Max Volume :
10-25L
Machine Size :
2.8x1.65x2.3M
Screw Heating Power :
4.4kw*15
Dimension :
5000x3000x4000mm
Automation Level :
Fully Automatic
Guarantee :
1 Year
Mould Cavity :
Single/Multi
Temperature Control :
PLC module
Hollow Part Volume :
500-2000L
Size :
customized
Extruder Type :
Single Screw
Description

This high-speed blow molding machine with a 3000L capacity and 8-layer co-extrusion is designed for rapid production. The water tank system ensures quick and efficient cooling, allowing for faster cycle times and increased productivity. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its robust design and high-speed capabilities make it ideal for manufacturers looking to boost production efficiency. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

blowing and cooling system

stretching stroke

according to products

blow pin up/down stroke

600mm

air seat stroke

400mm

maximum air pressure

0.8Mpa

air consumption

3m3/min

Cooling method

Circulating water

Water pressure

0.3MPa

Cooling water consumption

75m3/h

Hydraulic system

main oil tank capacity

1700L

Servo motor, less energy consumption, high efficiency, low noise

main oil pump

gear pump 200CC

main oil pump motor

75kw

Servo oil tank capacity

200L

Servo oil pump model

Plunger pump22

Servo oil pump motor

11kw
