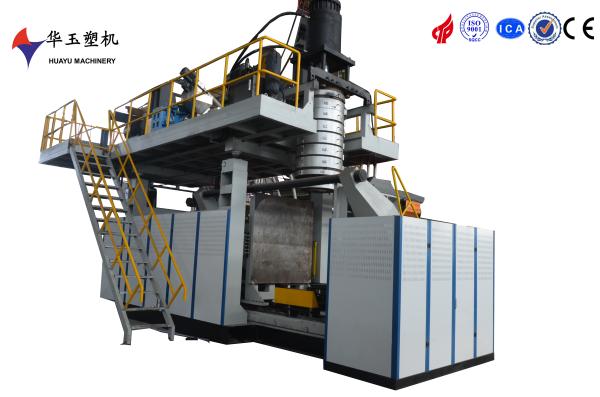

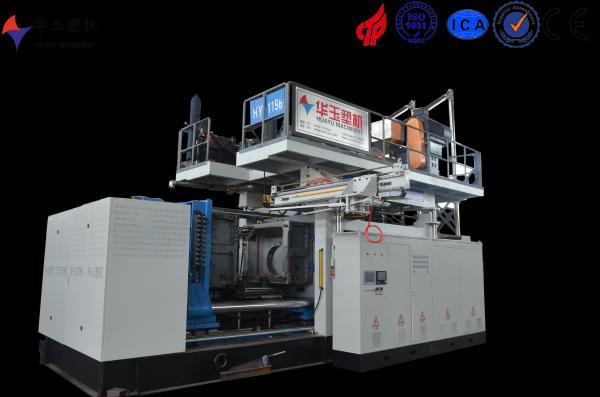

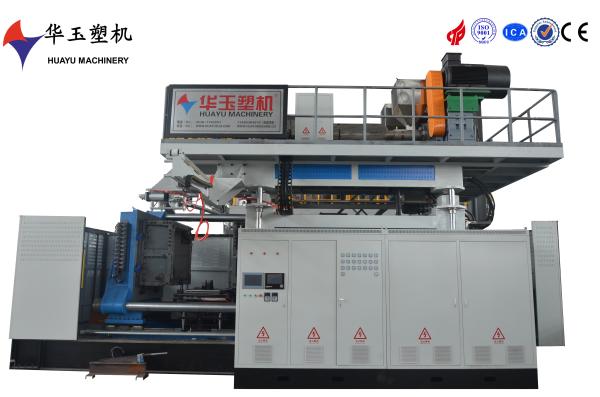

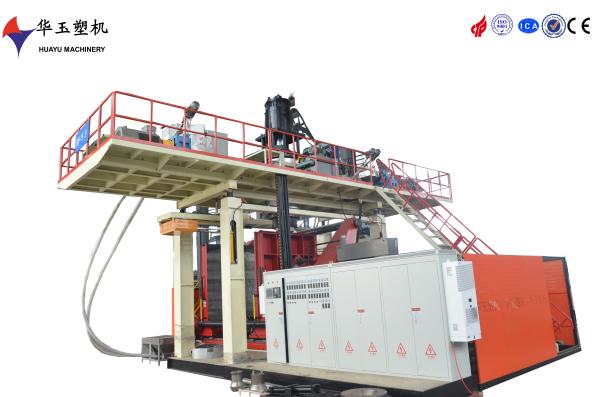

5000L 2-Layer Large Intelligent Water Tank Blow Molding Machine with Intelligent Control System
5000L 2-Layer Large Intelligent Water Tank Blow Molding Machine with Intelligent Control System
5000L 2-Layer Large Intelligent Water Tank Blow Molding Machine with Intelligent Control System
5000L 2-Layer Large Intelligent Water Tank Blow Molding Machine with Intelligent Control System
5000L 2-Layer Large Intelligent Water Tank Blow Molding Machine with Intelligent Control System
5000L 2-Layer Large Intelligent Water Tank Blow Molding Machine with Intelligent Control System
5000L 2-Layer Large Intelligent Water Tank Blow Molding Machine with Intelligent Control System
5000L 2-Layer Large Intelligent Water Tank Blow Molding Machine with Intelligent Control System
Specifications
Brand Name :
HUAYU
Model Number :
HYBM5000-2
Certification :
ISO9001 CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
380000 USD
Payment Terms :
T/T,L/C
Supply Ability :
1SET 120DAYS
Delivery Time :
4 MONTHS
Packaging Details :
be disassembled into many parts for container transportation
Blow Moulding Type :
Injection Blow Moulding
Screw Heating Power :
4.4kw*24
Parison :
MOOG 200point
Cleaning Method :
Easy cleaning
Total Weight :
58T
Application :
Water Tank Production
Clamping Cylinder :
350+200*2
Tataol Power :
290
Automation Grade :
Automatic
Product :
500-2000L plastic product
Hydraulic Oil Seal :
DZ
Extruder Motor :
75kw*4
Production Speed :
100-200 pcs/h
Clamping Force :
200T
Machine Dimension :
15*9*11
Description

This intelligent blow molding machine with a 5000L capacity and 2-layer co-extrusion is designed for smart production processes. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's smart control system includes real-time monitoring and diagnostics, ensuring optimal performance and quick troubleshooting. Its precision engineering and high-quality components make it a reliable choice for producing large, multi-layered plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

Auto Feeder

hopper material

stainless steel

Stable performance, easy maintenance

feeding type

spring loaded

feeding motor

2.2/2.2/2.2/2.2kw

Extrusion System

Screw diameter

110/110/110/110mm

Nitrided 38CrMoAIA

Screw L/D ratio

28:1

special designed screw can ensure the material plasticizing uniform and efficient

Extruder motor

75/75/75/75kw

Reducer

315/315/315/315

Best quality brand in china ,long life and low noise

Screw heating power

4.4kw*16

Plasticizing capacity

800kg/h
