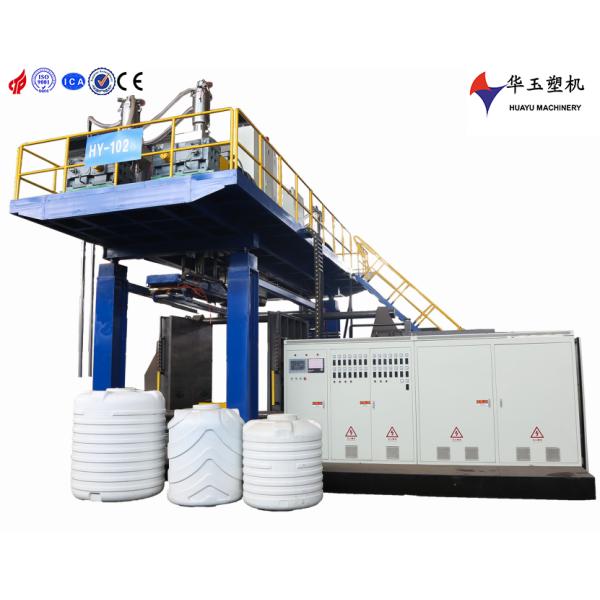

2000L 6-Layer Large Fully-Automatic Water Tank Blow Molding Machine
2000L 6-Layer Large Fully-Automatic Water Tank Blow Molding Machine
2000L 6-Layer Large Fully-Automatic Water Tank Blow Molding Machine
2000L 6-Layer Large Fully-Automatic Water Tank Blow Molding Machine
2000L 6-Layer Large Fully-Automatic Water Tank Blow Molding Machine
2000L 6-Layer Large Fully-Automatic Water Tank Blow Molding Machine
Specifications
Brand Name :
HUAYU
Model Number :
HYBM2000-6
Certification :
ISO9001 CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
280000 USD
Payment Terms :
L/C,T/T
Supply Ability :
1SET 120DAYS
Delivery Time :
4 MONTHS
Packaging Details :
be disassembled into many parts for container transportation
Voltage Range :
220V/380V/415V/440V
Extruder Motor :
55kw*8
Average Consumption :
180kw
Gear Box :
Guomao
Parison :
MOOG 200point
Servo Motor :
48kw
Tataol Power :
290
Machine Type :
Hydraulic Driven
Recyclability :
Recyclable
Weight :
5000 kg
Screw Dia :
150mm
Distance Between Platens :
1400-3800mm
Mould Material :
Aluminum
Max Volume :
5 Gallon
Air Pressure :
0.8MPa
Description

This fully-automatic blow molding machine with a 2000L capacity and 6-layer co-extrusion is designed for large-scale production. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its fully-automatic operation minimizes labor requirements and maximizes production efficiency. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

Clamping System

platen size

1800*2200*70mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

300+140*2

clamping cylinder stroke

2000mm

clamping force

1800KN

distance between platens

1000-3000mm

max. mould size

1600*2000mm(W*H)

blowing and cooling system

stretching stroke

according to products

blow pin up/down stroke

600mm

air seat stroke

400mm

maximum air pressure

0.8Mpa

r consumption

2.3m3/min

ling method

Circulating water

er pressure

0.3MPa

Cooling water consumption

60m3/h
