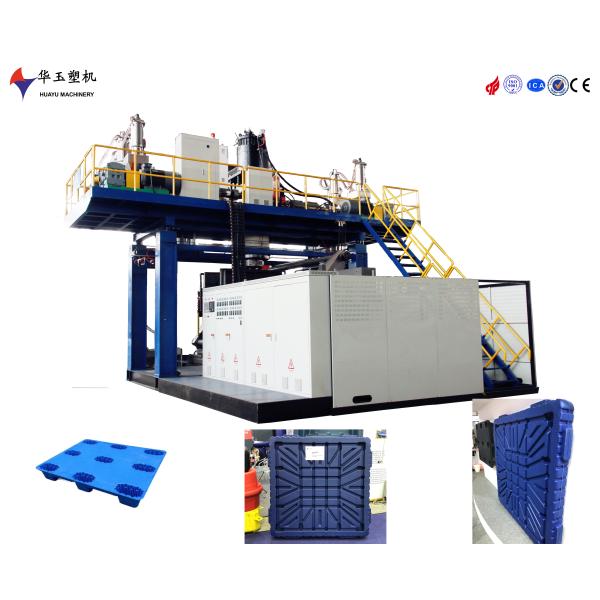

1000L 2-Layer Large Heavy-Duty Water Tank Blow Molding Machine
1000L 2-Layer Large Heavy-Duty Water Tank Blow Molding Machine
1000L 2-Layer Large Heavy-Duty Water Tank Blow Molding Machine
1000L 2-Layer Large Heavy-Duty Water Tank Blow Molding Machine
1000L 2-Layer Large Heavy-Duty Water Tank Blow Molding Machine
1000L 2-Layer Large Heavy-Duty Water Tank Blow Molding Machine
Specifications
Brand Name :
HUAYU
Model Number :
HYBM1000-2
Certification :
ISO9001 CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
160000 USD
Payment Terms :
T/T,L/C
Supply Ability :
1SET 120DAYS
Delivery Time :
4 MONTHS
Packaging Details :
be disassembled into many parts for container transportation
Size :
customized
Screw Barrel Material :
38CrMoAlA，Nitriding
Cleaning Method :
Easy cleaning
Range :
1000L IBC TANK
Layers :
5 Layers
Screw Heating Power :
5.5kw*12
Platen Distance :
1100-2500MM
Voltage :
220V/380V
Year :
2024
Motor :
Siemens
Machine Dimension :
12*11*7.5M
Mian Oil Pump :
gear pump160cc
Product Range :
1000L
Plc :
Siemens
Color :
Customied
Description

This 1000L two-layer heavy-duty blow molding machine is designed for producing high-quality multi-layer plastic products. The dual-layer co-extrusion system allows for enhanced material flexibility and improved product performance. The heavy-duty water tank cooling system ensures efficient heat dissipation and maintains optimal operating temperatures, enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, multi-layer plastic products. The water tank system is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

Clamping System

platen size

1700*1800*70(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

300

clamping cylinder stroke

1800mm

ng force

1000KN

distance between platens

900-2700mm

max. mould size

1500*1700mm(W*H)

blowing and cooling system

ing stroke

according to products

blow pin up/down stroke

600mm

ir seat stroke

400mm

maximum air pressure

0.8Mpa

air consumption

1.5m3/min

Cooling method

Circulating water

Water pressure

0.3MPa

Cooling water consumption

3m3/h
