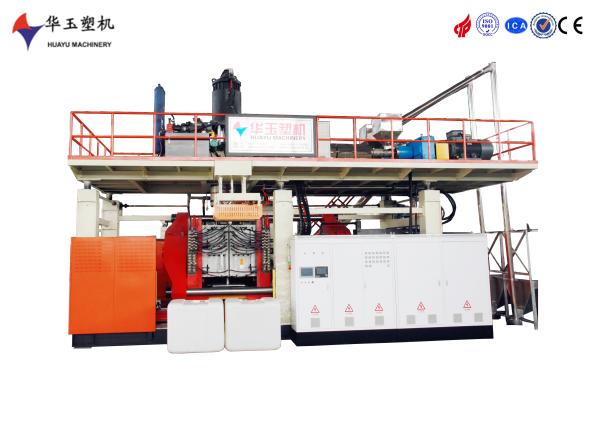

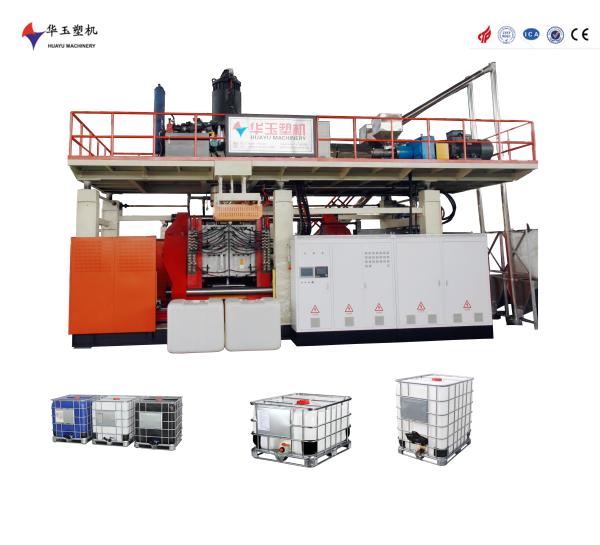

Fully Automatic 1500L 6-Layer Plastic Drum Blow Moulding Machine
Fully Automatic 1500L 6-Layer Plastic Drum Blow Moulding Machine
Fully Automatic 1500L 6-Layer Plastic Drum Blow Moulding Machine
Fully Automatic 1500L 6-Layer Plastic Drum Blow Moulding Machine
Fully Automatic 1500L 6-Layer Plastic Drum Blow Moulding Machine
Fully Automatic 1500L 6-Layer Plastic Drum Blow Moulding Machine
Fully Automatic 1500L 6-Layer Plastic Drum Blow Moulding Machine
Fully Automatic 1500L 6-Layer Plastic Drum Blow Moulding Machine
Specifications
Brand Name :
HUAYU
Model Number :
HYBM1500-6
Certification :
ISO9001, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
280000 USD
Payment Terms :
L/C,T/T
Supply Ability :
1SET 120DAYS
Delivery Time :
4 MONTHS
Packaging Details :
be disassembled into many parts for container transportation
Platen Size :
1800*2000*70mm(W*H*T)
Screw Material :
38CrMoAlA，Nitriding
Servo Motor :
57kw
Cooling System :
Automatic air cooling
Max. Die Height :
1000mm
Goods Capacity :
500---2000L , 10 layers
Extruder Motor :
132kw
Total Power :
514kw
Capacity :
1000 liters
Application :
1000L IBC tank and 220L chemical drum
Cleaning Method :
Easy cleaning
Automation Level :
Fully Automatic
Condition :
New
Plasticizing Capacity :
600kg/h
Air Consumption :
1.5m3/min
Description

The HUAYU1500L-6L Blow Moulding Machine offers a compact yet robust design for 6-layer 1500L plastic drum production. It features high-speed operation and energy-efficient technology, ensuring high precision and low operational costs, while its durable construction guarantees long-term reliability.

Clamping System

platen size

1800*2200*70mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

300+140*2

clamping cylinder stroke

2000mm

clamping force

1800KN

distance between platens

1000-3000mm

ax. mould size

1600*2000mm(W*H)

blowing and cooling system

stretching stroke

according to products

ow pin up/down stroke

600mm

air seat stroke

400mm

maximum air pressure

0.8Mpa

air consumption

2.3m3/min

Cooling method

Circulating water

Water pressure

0.3MPa

oling water consumption

60m3/h
