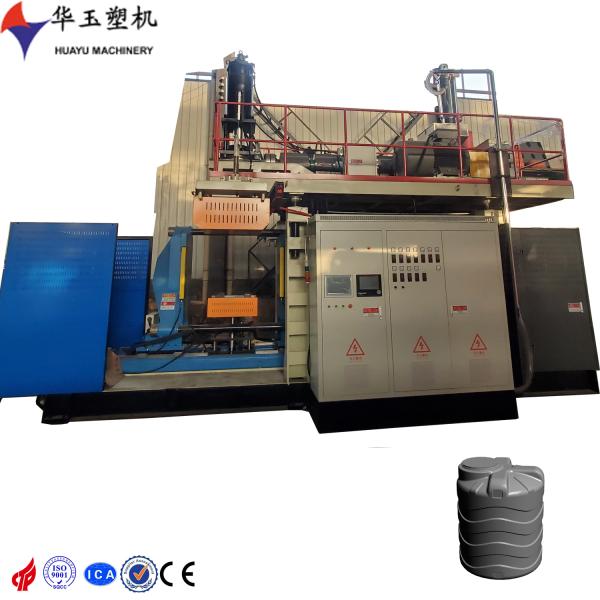

1000L 7-Layer Water Tank Blow Moulding Machine - High Efficiency Blow Molding Equipment
1000L 7-Layer Water Tank Blow Moulding Machine - High Efficiency Blow Molding Equipment
1000L 7-Layer Water Tank Blow Moulding Machine - High Efficiency Blow Molding Equipment
1000L 7-Layer Water Tank Blow Moulding Machine - High Efficiency Blow Molding Equipment
1000L 7-Layer Water Tank Blow Moulding Machine - High Efficiency Blow Molding Equipment
1000L 7-Layer Water Tank Blow Moulding Machine - High Efficiency Blow Molding Equipment
1000L 7-Layer Water Tank Blow Moulding Machine - High Efficiency Blow Molding Equipment
1000L 7-Layer Water Tank Blow Moulding Machine - High Efficiency Blow Molding Equipment
Specifications
Brand Name :
HUAYU
Model Number :
HYBM 1000L -7layers
Certification :
ISO9001 CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
280000 USD
Payment Terms :
T/T,L/C
Supply Ability :
1SET 120DAYS
Delivery Time :
4 MONTHS
Packaging Details :
be disassembled into many parts for container transportation
Voltage :
Pending
total power :
585kw
average power :
385kw
Machine dimension (L*W*H) :
8*9*6.5
productivity :
16-25pcs/h
Screw diameter :
90mm*7
Screw L/D ratio :
28：1
Accumulator capacity :
50kg
max. mould size :
1400*1500mm(W*H)
maximum air pressure :
0.8Mpa
air consumption :
1.5m3/min
Description

Of course, here are the key advantages of our 1000L, 7-layer water tank blow molding machine, presented as concise bullet points.

• Maximum Strength & Durability: The 7-layer structure creates a tank that is incredibly strong, impact-resistant, and built to last.

• Superior Water Quality: A specialized barrier layer prevents oxygen from entering, which significantly reduces algae growth and keeps water fresher for longer.

• Long-Lasting Outdoor Performance: A dedicated UV-protected outer layer ensures the tank won't fade, crack, or degrade in sunlight, even after years of outdoor use.

• Significant Material Cost Savings: This is the key economic advantage. You can use expensive materials (like UV or barrier resins) only in the specific layers where they are needed, and use more cost-effective materials or even recycled plastic (PCR) for the core layers.

• High Efficiency & Low Unit Cost: Engineered for high-volume production of large tanks, it achieves fast cycle times, driving down your cost per unit.

Hydraulic system

main oil tank capacity

890L

Servo motor, less energy consumption, high efficiency, low noise

main oil pump

gear pump125CC

main oil pump motor

37kw

Servo oil tank capacity

200L

Servo oil pump model

Plunger pump22

Servo oil pump motor

7.5kw

Electronic system

Main operation panel

Touch screen 12"

Control system

PLC

Thickness control points

200 points

Temperature control

PLC module
