Specifications
Brand Name :
LEIYUE
Model Number :
DPP-150
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1unit
Price :
USD11000/unit
Payment Terms :
T/T
Supply Ability :
20 units per month
Delivery Time :
20-25 work days
Packaging Details :
Wooden box
Max shaping areas and depth :
140*110*14mm
material quality :
304 stainless steel
Power supply :
380V/50Hz 3.8KW
Machine dimensions :
2500×800×1780mm(L×W×H)
Net weight :
890kg
Description

Atomizing core aluminum plastic bubble cover packaging machine

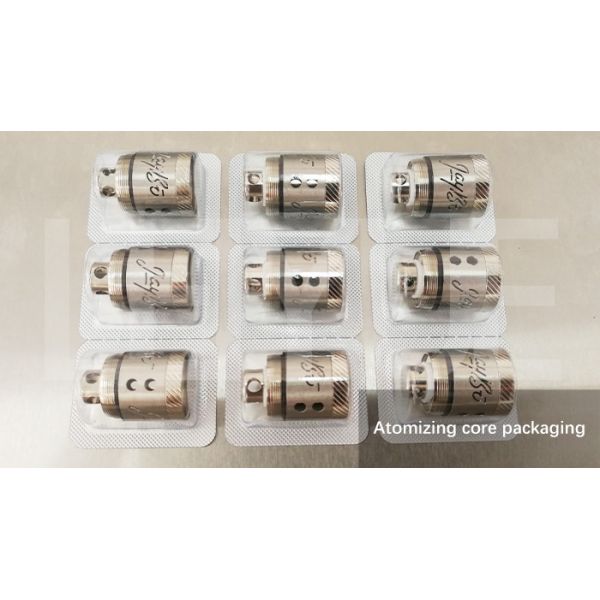

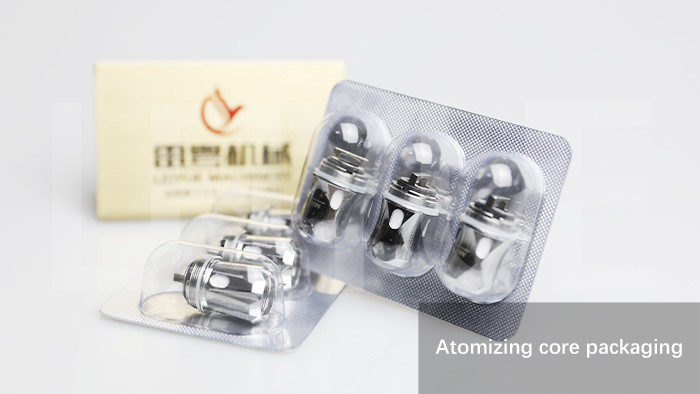

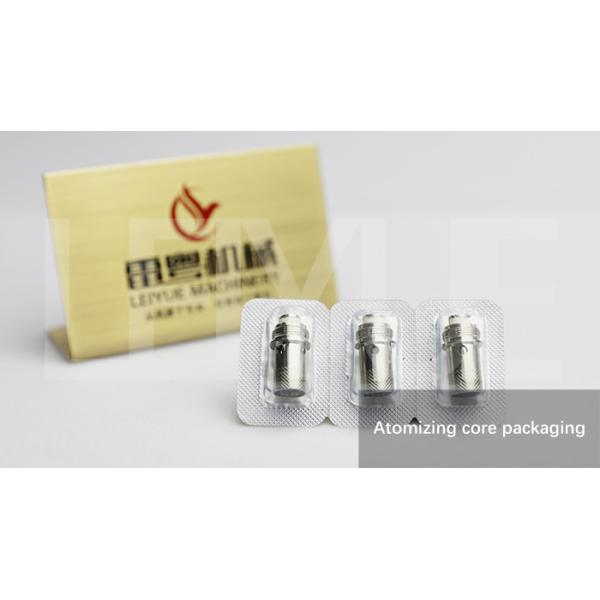

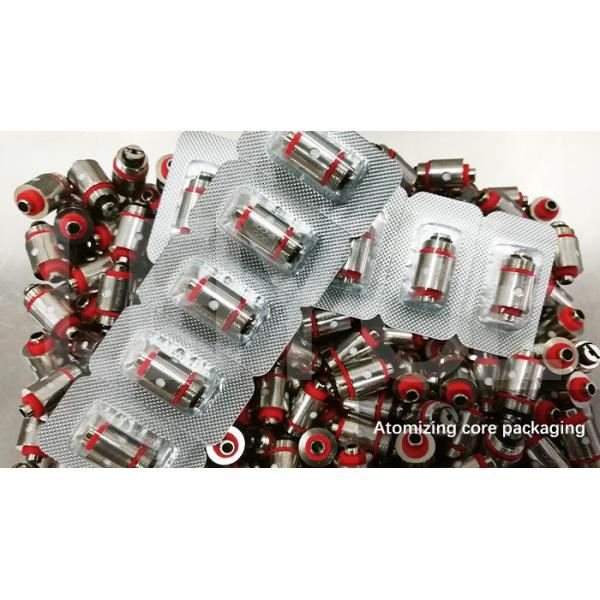

The atomizing core aluminum plastic bubble packaging machine is specifically used for packaging electronic fuming cores and atomizers. The atomizing core aluminum plastic bubble packaging machine can customize the size and shape of the bubble according to customers' products, achieving diversified packaging. The atomizing core aluminum plastic bubble packaging machine has a three-dimensional shape and good sealing performance. Shenzhen Leiyue Machinery Equipment Co., Ltd. specializes in the production of atomizing core aluminum plastic blister packaging machines, and is a cooperative supplier of numerous well-known electronic cigarette brands.

Technical Specifications:

Model DPP-150
Cutting frequency 10-30 times/min
Capacity 1000-2000 plates/h
Max shaping areas and depth 140*110*14mm
Air pressure 0.4-0.6MPa
Power supply 380V/50Hz 3.8KW
Main motor power 1.5KW
PVC hard pieces (width)155*(thickness)0.25-0.5mm
PTP aluminum foil (width)155*(thickness)0.025-0.05mm
Dialysis paper (width)155*50-100g
Mould cooling tap water or recycling water
Machine dimensions 2315*635*1405mm
Net weight 820kg

Electronic cigarette Alu PVC vacuum packaging machine Workflow:

Heating of PVC material→PVC blow molding→Automatic capsule feeder→Aluminum foil heat sealing→Finished product punching and cutting

380V Accurate BQS Blister Machine For Aluminum Plastic 304 Stainless Steel380V Accurate BQS Blister Machine For Aluminum Plastic 304 Stainless Steel380V Accurate BQS Blister Machine For Aluminum Plastic 304 Stainless Steel380V Accurate BQS Blister Machine For Aluminum Plastic 304 Stainless Steel

The application scenarios of a flat packaging machine are as follows:

1,Pharmaceutical industry: A flat packaging machine can be used to manufacture drug packaging, such as tablets, capsules, and powders.

2,Food industry: A flat packaging machine can be used to manufacture food packaging, such as chocolate, candy, cookies, coffee, etc.

3,Cosmetics industry: A flat packaging machine can be used to manufacture cosmetic packaging, such as creams, shampoos, perfumes, lipsticks, etc.

4,Other industries: A flat packaging machine can also be used to manufacture packaging for other types of products, such as electronic products, medical equipment, hardware accessories, etc.

The flat packaging machine can be adapted to various packaging specifications, and different molds and packaging materials can be selected according to product needs. It has high production efficiency and stable packaging quality, and is widely used in various industries' production and manufacturing processes.

380V Accurate BQS Blister Machine For Aluminum Plastic 304 Stainless Steel380V Accurate BQS Blister Machine For Aluminum Plastic 304 Stainless Steel380V Accurate BQS Blister Machine For Aluminum Plastic 304 Stainless Steel380V Accurate BQS Blister Machine For Aluminum Plastic 304 Stainless Steel380V Accurate BQS Blister Machine For Aluminum Plastic 304 Stainless Steel
