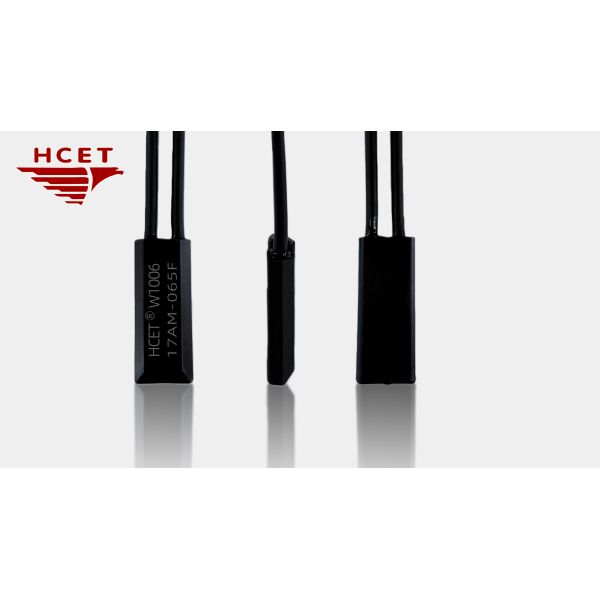

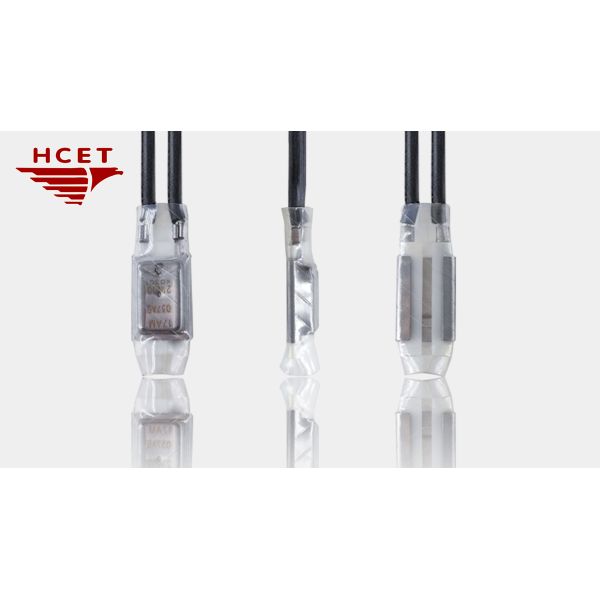

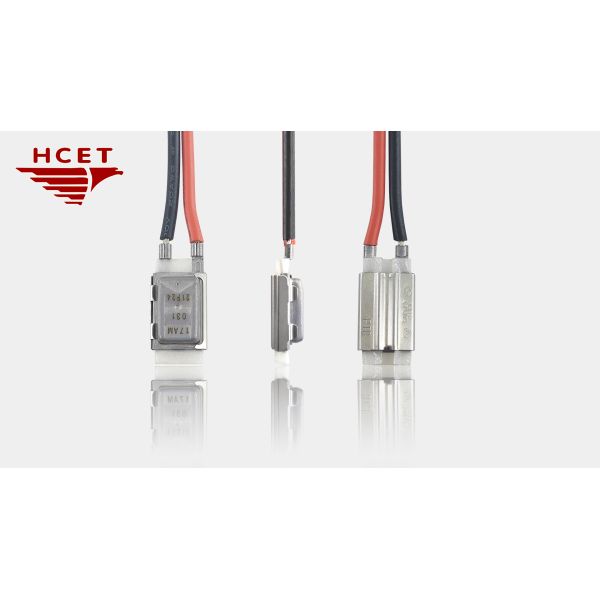

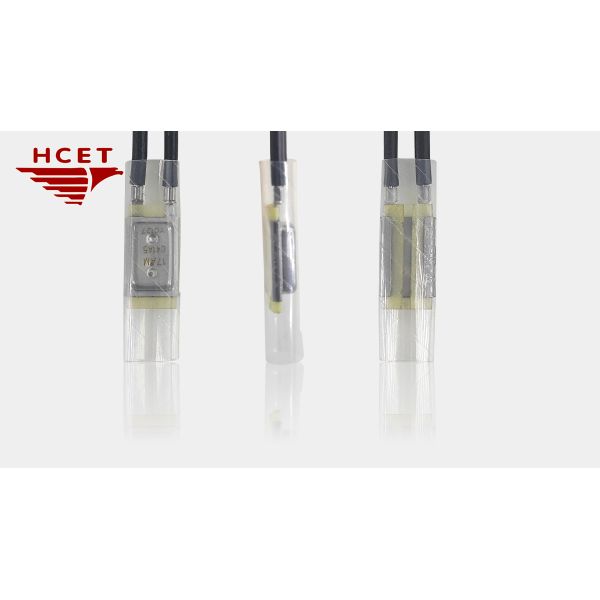

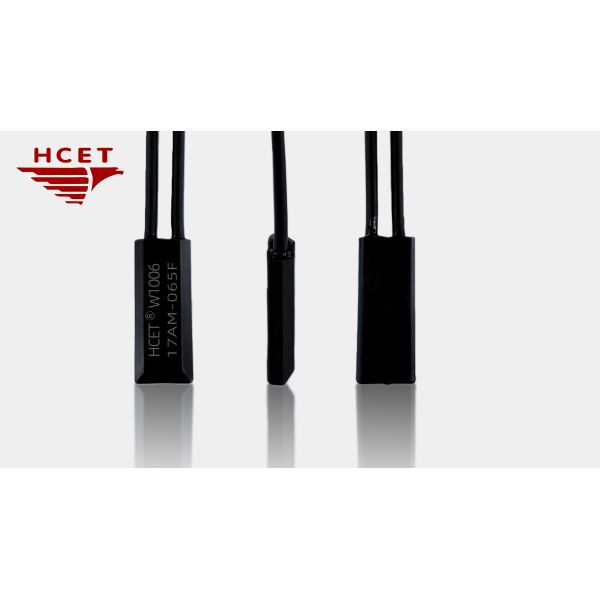

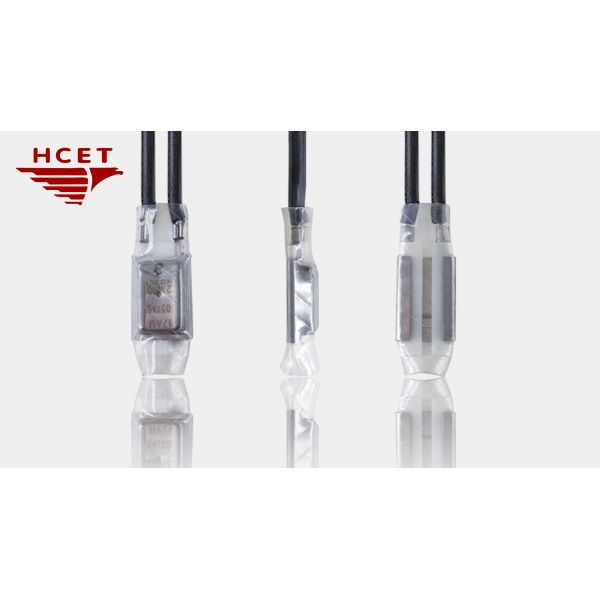

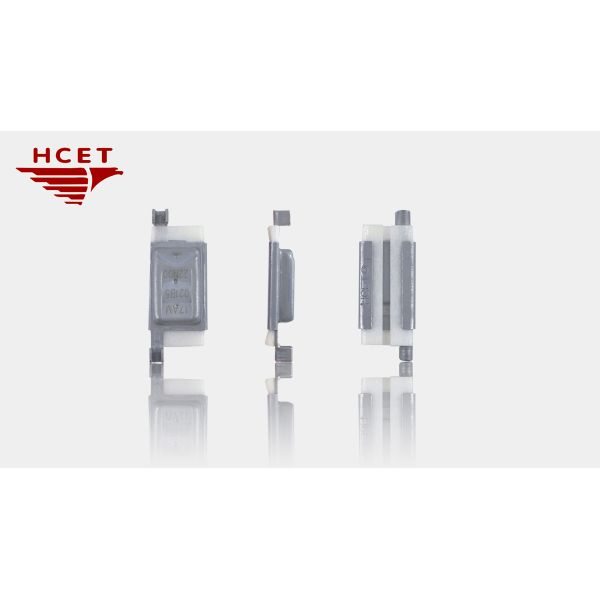

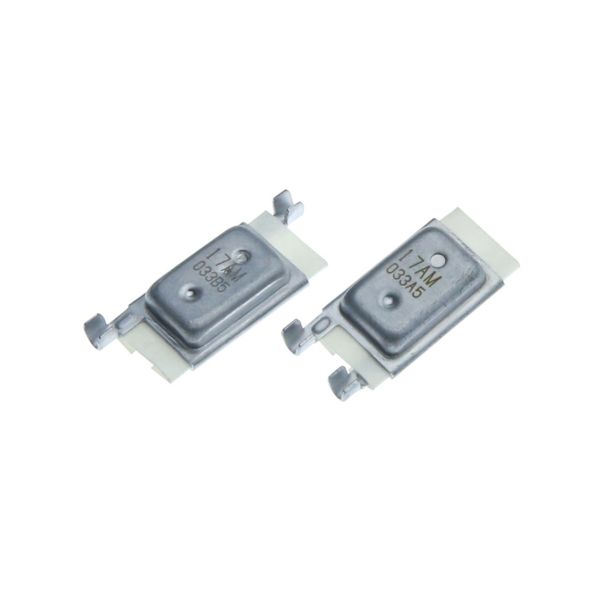

17AM Series Thermal Protector

17AM Series Thermal Protector

The 17AM series thermal protector is a compact, high-capacity over-temperature and over-current protection device. Engineered for reliability and fast trip-off, it offers essential safety for a wide range of electrical applications.

Micro Size, High Capacity
Fast Trip-Off Performance
Reliable Over-Temperature & Over-Current Protection
Versatile Application Compatibility

Widely Used In: Lighting, Water Pumps, Air Compressors, High-Power Motors, Car Seat Heating, Ballasts, Chargers, and various home appliances.

17AM 17AM 17AM 17AM 17AM

Product Attributes

Brand
N/A
Origin
N/A
Material
N/A
Color
N/A
Packaging & Delivery
Temperature and current sensitive protector, small size, high capacity. Applications: motors, lighting, home appliances. RoHS compliant.

Technical Specifications

Parameter Value Details Notes
Model 17AM Series Thermal Protector
Electrical Characteristics AC/DC 20A/16V DC; 10A/250V AC; 20A/125V AC
Calibration Temperatures 50℃ to 180℃ Nominal calibration range
Tolerance ±3℃, ±5℃ Temperature tolerance
Features Snap Action Both temperature and current sensitive 100% RoHS Compliant
Wire Options Optional Type and length of wires Terminals can be same or opposite end
