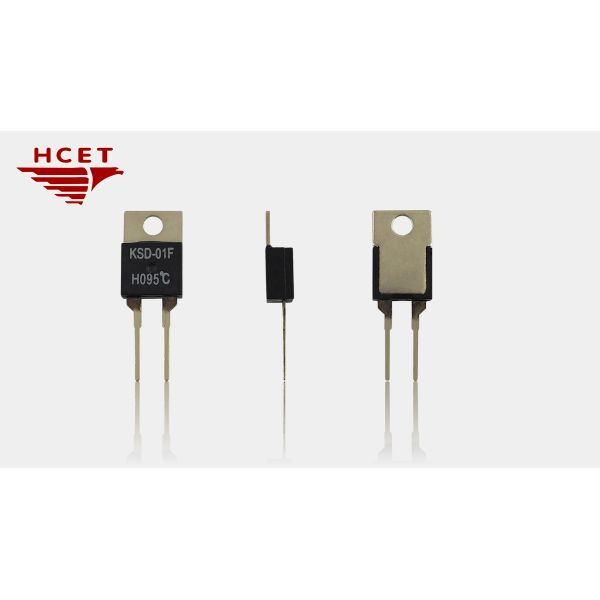

KSD-01F/JUC-31F
KSD-01F/JUC-31F
KSD-01F/JUC-31F
KSD-01F/JUC-31F
Specifications
Special Features :
● Insulation shell, miniature size, convenient in installation; ● 100% Snap Action; ● Competitive price ● Preset calibration temperature ; not adjustable in the field. ● Prevent most organic solvents from water, salt water, alcohol, ammonia
Electrical Characteristics :
● 2 A / 30V DC ● 2 A / 120V AC ● 1A / 240V AC
Technical Parameters :
● Available with nominal calibration temperatures from 30℃-150℃. ● Temperature Code: ±5℃,±8℃ ● Contact type: B-Normally open, K-Normally closed
Main Applications are as follows :
● Printed circuit board ● Power system ● Aircraft, Computer ● Automatic equipment and test-instruments
Product Coding :
JUC-31F ***** +A10 MODEL NO. WEEK AND YEAR OF CALIBRATION TEMPERATURE CODES NO. Comments Ⅰ MODEL NO.: JUC-31F Series Thermostat. Ⅱ TEMPERATURE CODES: From 030(30℃) to 160(160℃) Ⅲ YEAR OF CALIBRATION: A=2000 through Z=2025; WEEK OF CALIBRATION: 1~52 possi
Description

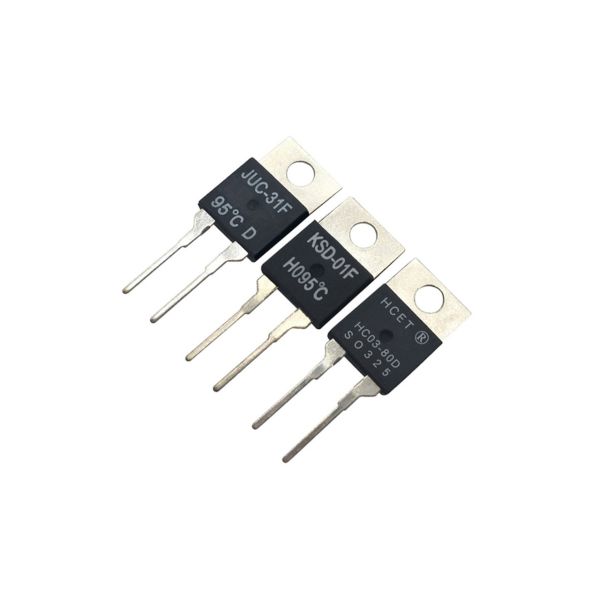

JUC-31F/KSD-01F Series Thermostat

JUC-31F/KSD-01F Series Thermostat

KSD-01F/JUC-31F
KSD-01F/JUC-31F KSD-01F/JUC-31F

The JUC-31F/KSD-01F series thermostat is a temperature-sensitive switch protector with a plastic housing. It features insulation shell, miniature size, a long lifecycle, and high reliability. This thermostat is widely used in circuit boards, switching power supplies, chargers, and ballasts, providing essential thermal protection.

Key Benefits:

  • Miniature size and convenient installation
  • 100% Snap Action for reliable thermal cutoff
  • Competitive pricing for cost-effective solutions
  • Preset calibration temperature for field-free adjustment
  • Resistance to most organic solvents, water, salt water, alcohol, and ammonia

Target Industries & Applications:

This thermostat is ideal for applications in electronics manufacturing, power systems, and various automated equipment. It is commonly found in:

Printed Circuit Boards

Protects sensitive components on PCBs from overheating.

Power Supplies & Chargers

Ensures safe operation of switching power supplies and battery chargers.

Aerospace & Computing

Reliable thermal management for critical systems in aircraft and computers.

Automated Equipment & Instruments

Essential for maintaining optimal temperatures in automated machinery and test instruments.

Product Attributes

Brand
JUC-31F/KSD-01F Series
Origin
Not Specified
Material
Plastic Housing, Insulated Shell
Color
Standard (Refer to product image)
Packaging & Delivery
Contact sensitive temperature jump type plastic sealed temperature controller, with an insulated outer shell, stable working performance, long service life, sensitive and reliable product action without arcing, convenient installation, and low radio interference.

Technical Specifications

Special Features

Feature Details
Insulation Shell Miniature size, convenient in installation
Action Type 100% Snap Action
Pricing Competitive price
Calibration Preset calibration temperature; not adjustable in the field.
Chemical Resistance Prevent most organic solvents from water, salt water, alcohol, ammonia

Electrical Characteristics

Voltage Rating Current Rating
30V DC 2 A
120V AC 2 A
240V AC 1A

Technical Parameters

Parameter Specification
Calibration Temperatures Available with nominal calibration temperatures from 30℃-150℃.
Temperature Code Tolerance ±5℃, ±8℃
Contact Type B - Normally open, K - Normally closed

Product Coding Explained

Code Element Description
MODEL NO. JUC-31F Series Thermostat.
TEMPERATURE CODES From 030 (30℃) to 160 (160℃).
YEAR OF CALIBRATION A=2000 through Z=2025.
WEEK OF CALIBRATION 1~52 possible.
Example Code JUC-31F ***** +A10 (MODEL NO. TEMPERATURE CODES +A10)
Send your message to this supplier
Send Now

KSD-01F/JUC-31F

Ask Latest Price
Product Detail
Special Features :
● Insulation shell, miniature size, convenient in installation; ● 100% Snap Action; ● Competitive price ● Preset calibration temperature ; not adjustable in the field. ● Prevent most organic solvents from water, salt water, alcohol, ammonia
Electrical Characteristics :
● 2 A / 30V DC ● 2 A / 120V AC ● 1A / 240V AC
Technical Parameters :
● Available with nominal calibration temperatures from 30℃-150℃. ● Temperature Code: ±5℃,±8℃ ● Contact type: B-Normally open, K-Normally closed
Main Applications are as follows :
● Printed circuit board ● Power system ● Aircraft, Computer ● Automatic equipment and test-instruments
Product Coding :
JUC-31F ***** +A10 MODEL NO. WEEK AND YEAR OF CALIBRATION TEMPERATURE CODES NO. Comments Ⅰ MODEL NO.: JUC-31F Series Thermostat. Ⅱ TEMPERATURE CODES: From 030(30℃) to 160(160℃) Ⅲ YEAR OF CALIBRATION: A=2000 through Z=2025; WEEK OF CALIBRATION: 1~52 possi
