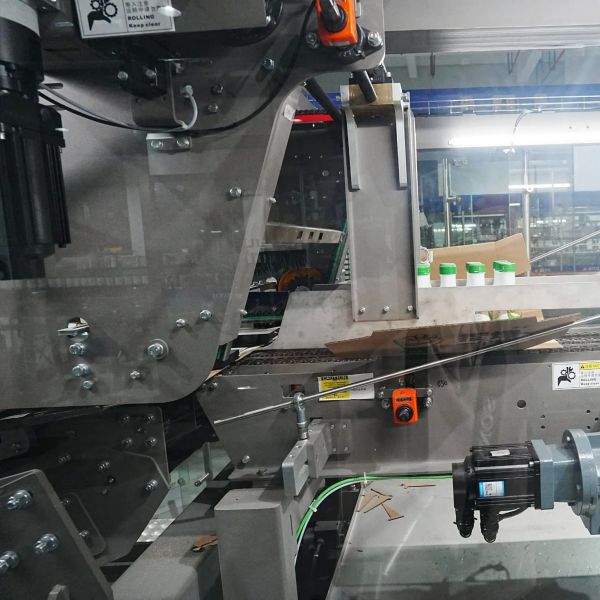

Stable Performance CE ISO Certified Automatic Case Packer with Touch Screen Control for Drink Bottles

Specifications

MOQ :

Price :

50000

Model NO. :

SPCSM. D16A1. D

Capacity :

5-90 Cases/Min

Conveyor Material :

Stainless Steel 304

Machine Frame Material :

Control Panel :

Touch screen

Gluing Time :

< 0.7 second

Drying Time :

> 2 seconds

PLC Model :

FX2N-128MR-001

Touch Screen Model :

GT1055-QSBD-C

Encoder Resolution :

360 wire

Frequency Converter Model :

ATV/12HU15M2, ATV/12HU075M2

Motor Protection Switch :

GV2-ME07 (1.5-2.5)A

Proximity Switch Type :

XS212BLPAL2 OUT (NPN)

Photoelectric Switch Type :

WT100-P1432 OUT (NPN), WL100-P1439 OUT (NPN)

Electric Relay Model :

RXM2AB2BD/ 24VDC

Description

Material:

Conveyor is made of stainless steel 304
Machine frame and base is made of A3, contact part is stainless steel 304
Machine should be painted according to the supplier's standard color
Control panel with touch screen
Technical Requirements:

Capacity of the individual machine: 5-90 Cases/minute (based on 500ml bottle)
Hot-melt glue system equipped for the machine is manufactured by Nordson, USA.
Time from gluing of carton to sealing is less than 0.7 second. Time from the end of sealing to discharge (i. e. The time for the hot-melt glue to dry when the carton flaps are pressed) is longer than 2 second.
Smooth carton sealing process without breaking of bottles
Secure carton sealing without loosing
No damages should be done to the packaging of the product during wraparound packing.

Main Configuration Specification
S/N	Appliance Name	QTY	UNIT	MODEL	Brand	REMARK
1	frequency converter	1	set	ATV/12HU15M2	Schneider
1	frequency converter	2	set	ATV/12HU075M2	Schneider
2	scavenger fan	2	set	145FZY2-S	Suzhoudianxun
3	switch power	1	pcs	INPUT-200/240V S-100-24	MW
4	air switch	1	pcs	NSC100S3040	Schneider
5	circuit	1	pcs	C65N EA9AN3C16 2P	Schneider
6	circuit	3	pcs	C65N EA9AN3C10 2P	Schneider
7	circuit	1	pcs	C65N EA9AN3C25 2P	Schneider
8	circuit	1	pcs	C65H C10 D.C. 1P	Schneider
9	motor protection switch	6	pcs	GV2-ME07 (1.5-2.5)A	Schneider
10	PLC	1	set	FX2N-128MR-001	Mitsubishi
11	touch screen	1	pcs	GT1055-QSBD-C	Mitsubishi
12	encoder	1	set	E6B2-CWZ6C (360)wire	OMRON	resolution ratio (360)wire
12	touch screen -PLCtelecom cable	1	set		Mitsubishi
14	load switch	1	set	VCD02 (40A)	Schneider
15	key switch	1	set	XB2-BG21	Schneider
16	reset button	1	set	XB2BW35B1C DC24V	Schneider
17	emergency stop button	4	set	XS542 DC24V	Schneider
18	start button	1	set	XB2BW33B1C	Schneider	with indicator light
19	stop button	1	set	XB2BW34B1C	Schneider	with indicator light
20	original light	1	set	XB2BVB3	Schneider	green
21	buzzer	1	set	SBSB DC24V	Schneider
37	power indicator	1	pcs	XB2B-BVB1	Schneider	white
22	AC contactor	8	pcs	LC1D18M7C	Schneider
23	potentiometer	3	pcs	WXD3-13
25	filter	1	pcs	AC:220V DNF-05-20A	Shanghai aide
27	proximity switch	3	pcs	XS212BLPAL2 OUT (NPN)	Schneider	OUT (NPN)
28	photoelectric switch	10	pcs	WT100-P1432 OUT (NPN)	SICK	Self-reflection-type (NPN)output
28	photoelectric switch	3	pcs	WL100-P1439 OUT (NPN)	SICK	Diffuse- reflection-type (NPN)output
29	electric relay	35	pcs	RXM2AB2BD/ 24VDC	Schneider	set
32	dreifachsteckdose	2	pcs	AC:220V-10A	Schneider
32	fluorescent light	1	pcs	AC:220V-25W	Schneider
35	fuse	9	pcs	TFB-101N (fuse /1A /3A /5A )	TEND	set
