Specifications
Brand Name :
Peiyu
Model Number :
SPCWM.NA1K
Certification :
CE,ISO9001:2008,High-tech enterprise
Place of Origin :
China
MOQ :
1
Price :
Individual quotation according to different requirements
Payment Terms :
T/T,L/C
Supply Ability :
30 pcs per month
Delivery Time :
30-40 workdays
Packaging Details :
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Name :
Carton wrapping machine
Model :
SPCWM.NA1K
Equipment production capacity :
30-70 boxes/minute
Applicable can types :
Cans, glass bottles, PET, etc.
Container conveyor belt elevation :
450mm±30mm
Bottle carrying height :
1300mm±30mm
Equipment weight :
About 7500Kg
Operating air pressure :
6 Bar
Air consumption :
60L/min Max
Description
1. Product Model: SPCWM.NA1K (Vertical Feeder - Widened Frame)

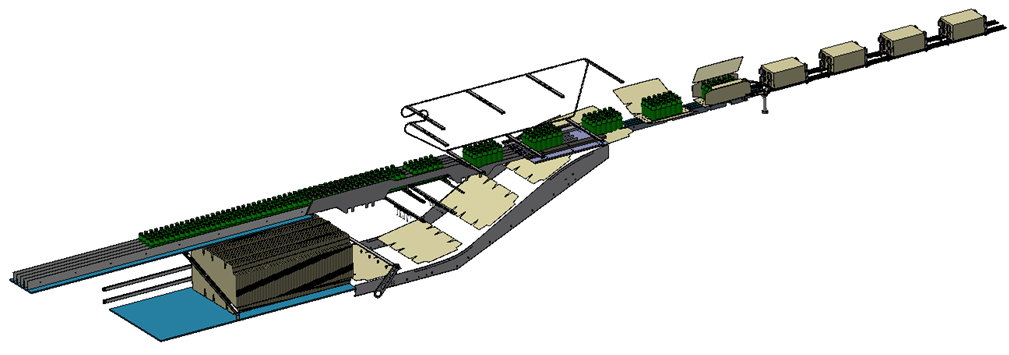

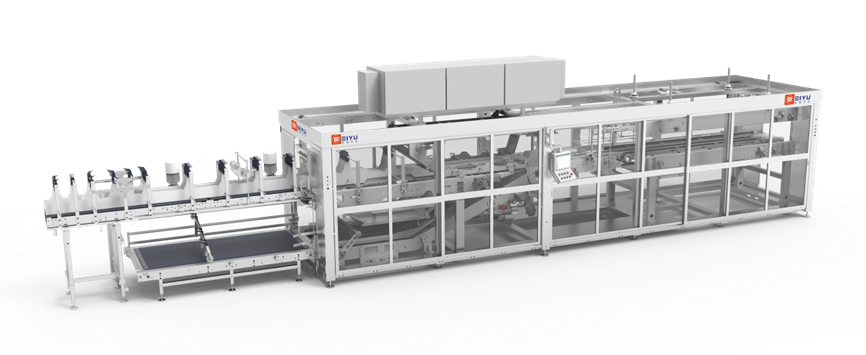

2. Renderings and Top View
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame)
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame)
3. Folding Diagram

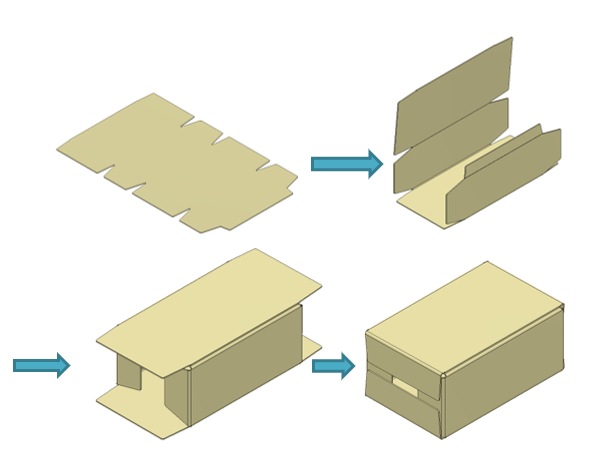

3.1 Flowchart of Inner Tongue Forming Process
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame)

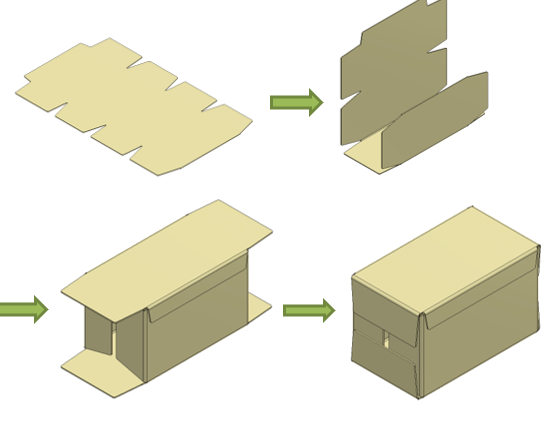

3.2 Schematic diagram of the outer tongue forming process
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame)

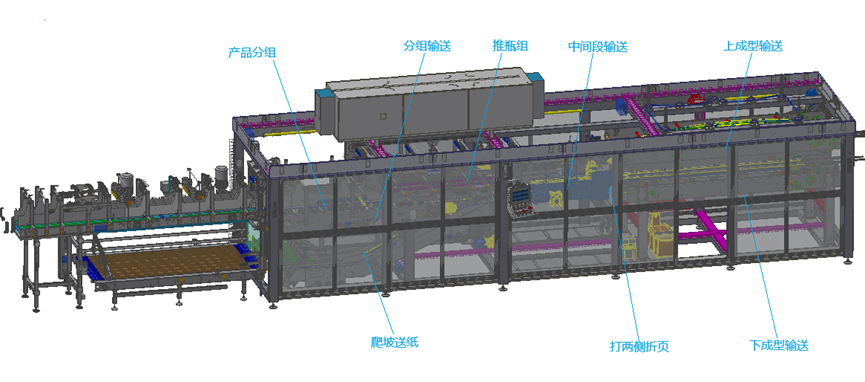

4. Description of main components and process flow of the equipment
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame)

The equipment mainly consists of a frame, inlet conveyor, group conveyor, bottle sorting group, bottle pushing group, intermediate section conveyor, folding and hinge group, lower conveyor forming, upper conveyor forming, cardboard buffer bin, cardboard inclined conveyor, control box, and electrical cabinet.

The cardboard is manually placed on the cardboard buffer conveyor chain. A reciprocating swing arm suction cup picks up the cardboard and places it on the cardboard inclined conveyor. The cardboard climbs the incline and is conveyed to the point where it connects with the product. The product is conveyed to the grouping area, and after grouping, the products enter the bottle pushing area at equal intervals and are then conveyed to the point where they connect with the cardboard. After the product connects with the cardboard, it undergoes folding and glue spraying before entering the forming area to complete the automatic wrapping process.

4.2 Device Servo Configuration Instructions:
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame)
Organization Name Number of Servos (Sets)
Upper Forming 3
Lower Forming 2
Side Folding 4
Forming Transition Zone 1
Bottle Pushing Group 1
Group Conveying 1
Incline Paper Feeding 2
Product Grouping 2
Total 16

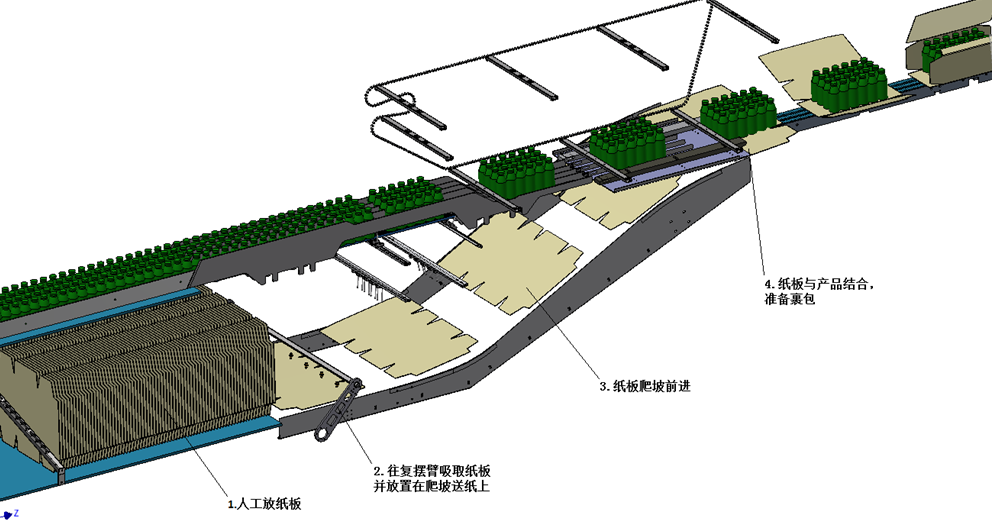

4.3 Paper supply diagram
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame)
4.4 Suitable for various can/bottle types, with quick and convenient can/bottle type conversion and arrangement changes.

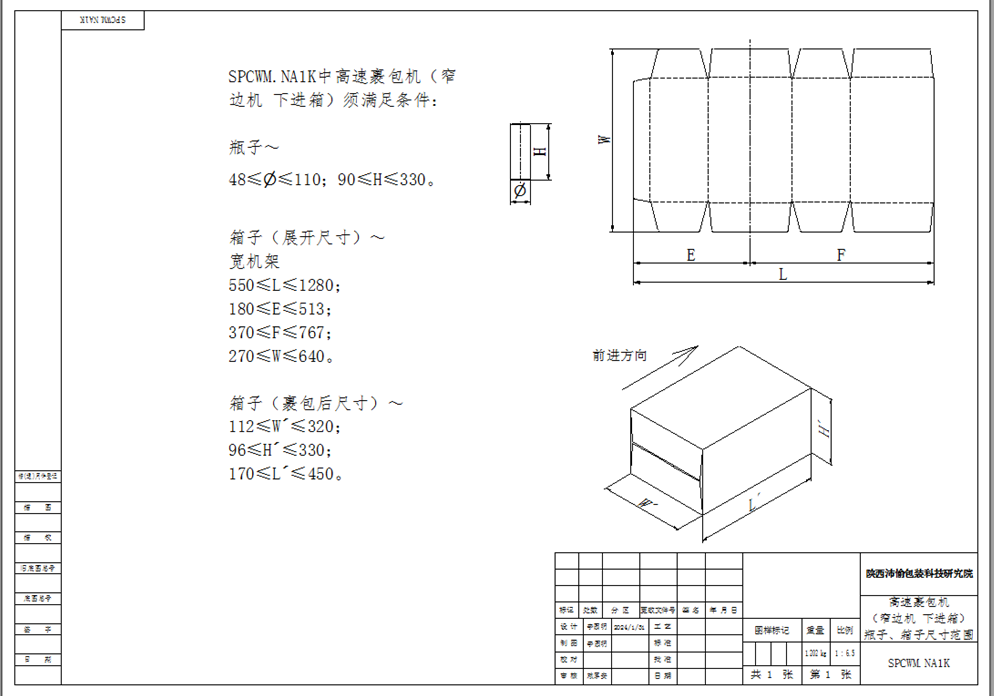

4.5 Cardboard unfolded size requirements
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame)
7 Equipment Parameters:
Equipment Production Capacity Packets/Minute (Based on Bottle Type and Packaging Method)
Packaging Specifications Packaging methods include 3*4, 3*5, 4*6, 2*3, 2*4, etc. Specific requirements depend on bottle size and style
Product Diameter

For multi-row differential speed models at the inlet, bottle diameter requirements are φ52mm < round bottle diameter ≤ 106mm, and for square or rectangular bottles, the shortest side length (in the running direction) must be greater than 52mm. For models without differential speed at the inlet, bottle diameter requirements are φ48mm < round bottle diameter ≤ 106mm, and for square or rectangular bottles, the shortest side length must be greater than 48mm. Specific requirements depend on the actual bottle size and style.Automatic packaging requirements must be determined based on actual bottle size and style.
Product Height 90mm～330mm
Standard Equipment Dimensions (Unit: mm) L=13000mm×W=2500mm×H=3000mm
Applicable Can Types Aluminum cans, glass bottles, PET, etc.
Carrier Belt Elevation 450mm±30mm
Bottle Belt Elevation 1300mm±30mm
Equipment Weight Approx. 7500Kg
Operating Air Pressure 6bar
Air Consumption 60L/min Max
Operating Voltage Control Voltage 380V AC 50HZ; 24V DC/AC
Installed Power 36KW
Operating Power 15KW
8 Equipment Configuration
PLC Huichuan
Servo Motor and Controller Systems Huichuan
Frequency Inverters Huichuan
Proximity Switches SICK or equivalent
Air Switches SICK or equivalent
Motor Protectors SICK or equivalent
Contactors SICK or equivalent
Push Buttons SICK or equivalent
Intermediate Relays SICK or equivalent
Phase Loss Protectors SICK or equivalent
Terminal Blocks Phoenix
General Motor Gearboxes SEW/Hengchi
Servo Motors with Gearboxes Domestic Precision Gearboxes
Servo Motors Huichuan
Hot Melt Glue Machines Leibode
Pneumatic Systems Festo/SMC

Note: The configuration in the above plan is our standard configuration. If the delivery cycle of external suppliers affects the availability of components, we will select a brand with equivalent configuration at our discretion, without further notice.
