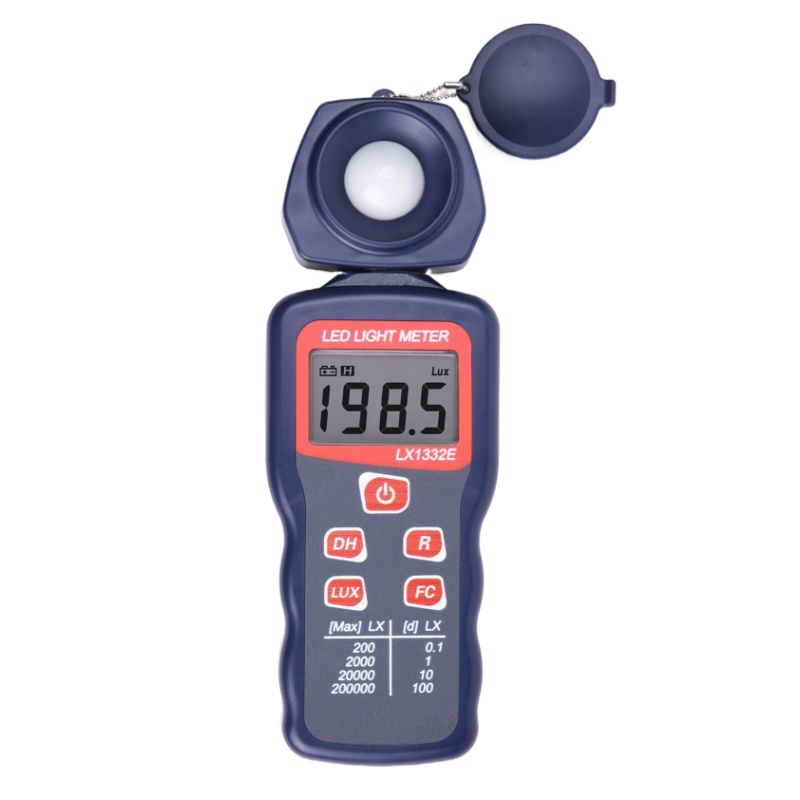

LX1332E Digital LED Lux Meter with 0.1lux Resolution 200,000lux Range
LX1332E Digital LED Lux Meter with 0.1lux Resolution 200,000lux Range
LX1332E Digital LED Lux Meter with 0.1lux Resolution 200,000lux Range
LX1332E Digital LED Lux Meter with 0.1lux Resolution 200,000lux Range
Specifications
Model Number :
LX1332E
Resolution :
0.1lux
Temperature Characteristic :
±1%/ºC
Place of Origin :
CHINA
Sampling time :
2times/sec
Certification :
CE,ROHS
V(λ) Matching Error :
ƒ'1≤10%
Payment Terms :
T/T
Transport Package :
Carrying Case
Packaging Details :
Plastic carrying case
Repeat Testing :
±2%
MOQ :
10
Brand Name :
Bestone
Measuring Range :
0.1lux~200,000lux 0.01FC~20,000FC
Delivery Time :
5-8 working days
Description
Digital Lux Meter Lx1332E for LED Lighting intensity measurement
Product Overview

Thank you for choosing this Lux meter. Please read this manual carefully before using to ensure proper operation and optimal performance. This digital LED lux meter is a precision instrument designed for detecting light intensity in various situations, with specialized capabilities for LED lighting intensity measurement.

Technical Specifications
Parameter Specification
Measuring Range 0.1Lux~200,000Lux / 0.01FC~20,000FC
Display 3 1/2 digits LCD display, maximum display value 1999
Range Selection 200Lux, 2,000Lux, 20,000Lux, 200,000Lux
20FC, 200FC, 2,000FC, 20,000FC
Accuracy <20,000Lux/2,000FC: ±(4%rdg+10dgt)
≥20,000Lux/2,000FC: ±(5%rdg+10dgt)
(Calibrated to standard incandescent lamp at color temperature 2856K)
Resolution 0.1Lux
V(λ) Matching Error f'1≤10%
Repeat Testing ±2%
Temperature Characteristic ±1%/°C
Sampling Time 2 times/sec
Photo Sensor One silicon photo diode with filter
Operating Conditions 0°C to 40°C (32°F-104°F) / 0~70%RH
Storage Conditions -10°C to 50°C (14°F-140°F) / 0~80%RH
Power Supply One 9V battery, Model 6F22
Battery Life 200 hours continuous use
Dimensions 185 × 68 × 38mm
Weight Approximately 130g
Features

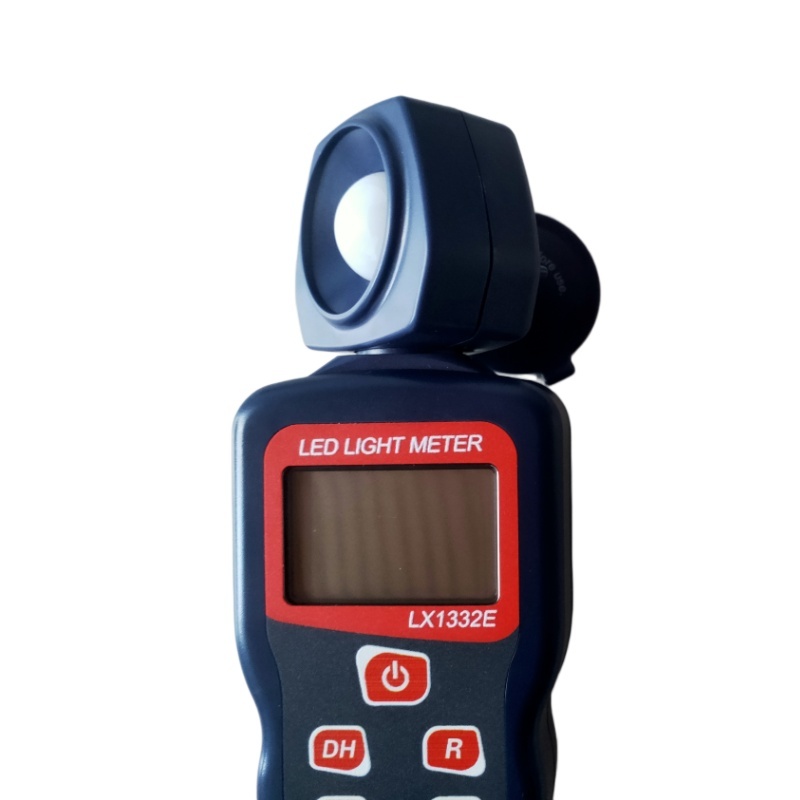

  • Photo Sensor - Can rotate left 90 degrees, right 180 degrees
  • LCD Display - Clear digital readout
  • Power Switch Button - Easy on/off control
  • Range Select Button - 200.0Lux, 2,000Lux, 20,000Lux, 200,000Lux or 20.00FC, 200.0FC, 2,000FC, 20,000FC
  • FC Unit Select Button - Foot-candle measurement selection
  • Data Hold Button - Freeze readings for recording
  • LUX Unit Select Button - Lux measurement selection
Note: Overload condition is indicated by display of "1". Range multipliers: 20,000Lux range = reading ×10, 200,000Lux range = reading ×100, 20,000FC range = reading ×10.
