LX1334E Professional Digital Illuminance Meter with 0.01 Lux Resolution Portable Split Design and High Accuracy Silicon Photocell
LX1334E Professional Digital Illuminance Meter with 0.01 Lux Resolution Portable Split Design and High Accuracy Silicon Photocell
LX1334E Professional Digital Illuminance Meter with 0.01 Lux Resolution Portable Split Design and High Accuracy Silicon Photocell
LX1334E Professional Digital Illuminance Meter with 0.01 Lux Resolution Portable Split Design and High Accuracy Silicon Photocell
LX1334E Professional Digital Illuminance Meter with 0.01 Lux Resolution Portable Split Design and High Accuracy Silicon Photocell
LX1334E Professional Digital Illuminance Meter with 0.01 Lux Resolution Portable Split Design and High Accuracy Silicon Photocell
Specifications
Display :
3 3/4-Bit LCD, with The Maximum Reading of 3999
Model Number :
LX1334E
Accuracy :
4%+5 Digits
Delivery Time :
5-8 working days
V(λ) matching error :
V(λ)≤6%
Transport Package :
Carrying Case
Packaging Details :
plastic carrying case
Sampling rate :
2 times/second
Certification :
CE
MOQ :
2
Model NO. :
LX1334E
Brand Name :
Bestone
Measuring Range :
0.01 Lux~39990 Lux
Place of Origin :
CHINA
Maximum Resolution :
0.01lux
Payment Terms :
T/T
Description
LX1334E Professional Low Light Illuminance Portable Refractometer
Product Application

This high-precision professional-grade digital illuminance meter features a silicon photocell detector with built-in visual correction filter. The spectral characteristics have been strictly corrected for accurate and stable measurements with minimal V(λ) matching error and high resolution.

Ideal for precisely measuring visible light emitted by various light sources including fluorescent lamps, metal halide lamps, high-pressure sodium lamps, incandescent lamps, and LED lamps.

Design Features

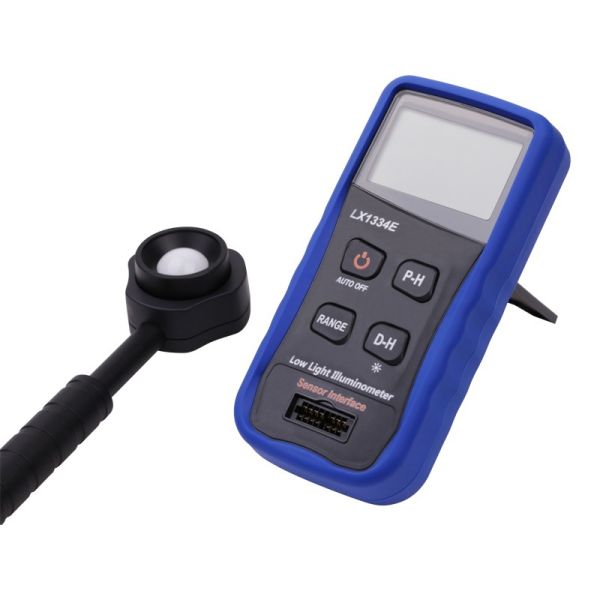

The instrument features a split design for easy portability. The probe includes a handle for convenient measurement handling, while the plug-in head is designed to prevent reverse connection. The main unit features a rubber-coated shell for shock and drop resistance, built-in button batteries, slim profile, and extended battery life.

Key Features
  • Resolution up to 0.01Lux for detecting low light and weak light conditions
  • Minimal V(λ) matching error for accurate measurement of visible light with different color temperatures
  • High-definition LCD display with backlight function
  • Numerical holding and peak holding functions
  • Low voltage prompt function
  • Automatic shutdown function
  • Three button-type batteries providing 1.5 times the endurance of ordinary batteries
Technical Specifications
Specification Details
Display 3 3/4-bit LCD, maximum reading of 3999
Measuring Range 0.01 lux ~ 39,990 lux
Overload Display Displays "1" when overloaded
Maximum Resolution 0.01Lux
Accuracy 4% + 5 digits (under 2856K standard light source)
V(λ) Matching Error V(λ) ≤ 6%
Cosine Angle Deviation 30° ±2%; 60° ±6%; 80° ±25%
Sampling Rate 2 times/second
Repeatability 1%
Operating Temperature/Humidity 0ºC ~ 40ºC (32°F ~ 104°F), 0~70% RH
Storage Temperature/Humidity -10ºC ~ 50ºC (14°F ~ 122°F), 0~80% RH
Power Supply 3 CR2450 3V button lithium batteries
Battery Life Approximately 300 hours continuous use (without backlight)
Automatic Shutdown Time 5 minutes
Main Unit Dimensions 160 × 78 × 34mm
Probe Dimensions 50mm (diameter) × 125mm (handle length)
Probe Extension Cable 1000mm
Instrument Weight Approximately 390g (including battery and probe)
