LX1332B Digital Lux Meter with 200,000 Lux Range, 3 1/2 Digits LCD Display and Silicon Photo Diode with Filter
LX1332B Digital Lux Meter with 200,000 Lux Range, 3 1/2 Digits LCD Display and Silicon Photo Diode with Filter
LX1332B Digital Lux Meter with 200,000 Lux Range, 3 1/2 Digits LCD Display and Silicon Photo Diode with Filter
LX1332B Digital Lux Meter with 200,000 Lux Range, 3 1/2 Digits LCD Display and Silicon Photo Diode with Filter
Specifications
Range :
200lux 2,000lux 20,000lux 200,000lux
Model Number :
LX1332B
V(λ) Matching Error :
ƒ'1≤10%
Photo Sensor :
One Silicon Photo Diode with Filter.
Sampling Time :
2times/Sec.
MOQ :
10
Accuracy :
±(4%Rdg+10)
Packaging Details :
carrying bag and white paper box
Certification :
CE,ROHS
Temperature Characteristic :
±1%/ºC
Place of Origin :
CHINA
Delivery Time :
5-10 working days
Payment Terms :
T/T
Repeat Testing :
±2%
Display :
3 1/2 Digits LCD Display,Maximum Reading
Brand Name :
Bestone
Resolution :
0.1lux
Description
LX1332B Digital Lux Meter - Digital Light Meter for LED Lighting Intensity
Product Overview

Thank you for choosing this professional Lux meter. Please read this manual carefully before use to ensure proper operation and optimal performance. This precision digital LED lux meter is designed for accurate light intensity detection in various applications, with specialized capabilities for LED lighting intensity measurement.

Key Features
  • Wide measuring range: 0.1Lux~200,000Lux, 0.01FC~20,000FC
  • High accuracy with rapid response time
  • Peak value lock function tracks pulses exceeding 100ms and locks peak values
  • Reading lock function for stable measurement display
  • Clear symbol and unit display for convenient reading
  • Automatic zeroing capability
Technical Specifications
Display 3 1/2 digits LCD display, maximum reading value 1999
Range Selection 200Lux, 2,000Lux, 20,000Lux, 200,000Lux, 20FC, 200FC, 2,000FC, 20,000FC
20,000Lux range: Reading × 10
200,000Lux range: Reading × 100
20,000FC range: Reading × 10
Accuracy ± (4% reading + 10 digits)
(>20,000Lux/2,000FC: ± 5% reading ± 10 digits)
(Calibrated to standard incandescent lamp at color temperature 2856K)
Repeatability ± 2%
Temperature Characteristic ± 1%/°C
Sampling Time 2 times per second
Photo Detector Silicon photo diode with filter
Over-input Indication Displays "1"
Power Supply One 9V battery (model 6F22)
Dimensions 185mm (L) × 68mm (W) × 38mm (H)
Additional Features Reading lock function
Measuring probe rotates 270°
Operating temperature: 0~40°C (32°F~104°F)
Operating humidity: 0~80% RH

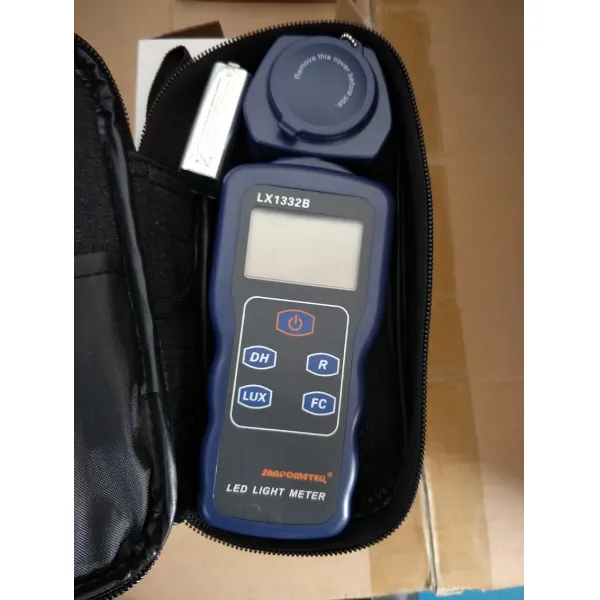

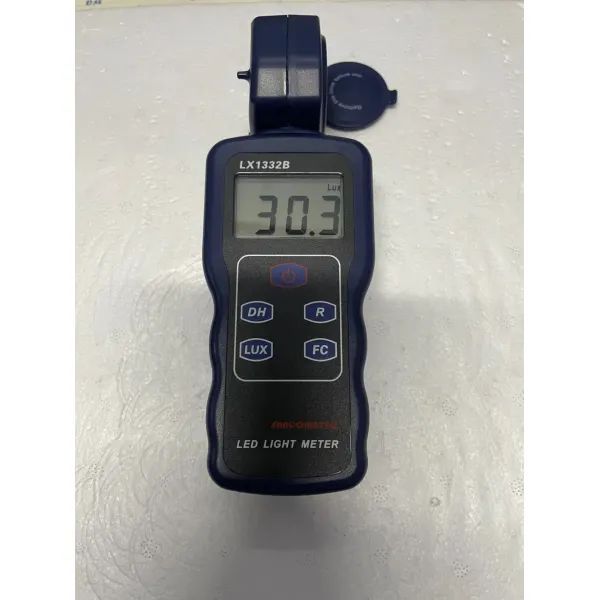

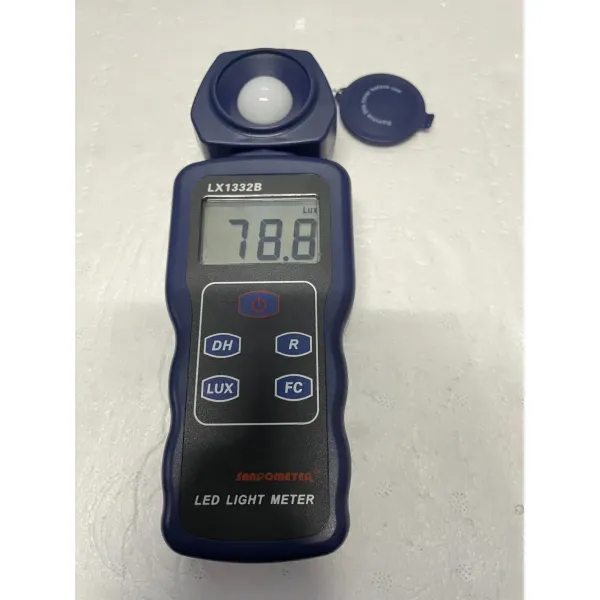

Product Images

Detailed product photos available for reference and inspection.
