Specifications
MOQ :
1
Price :
EXW US$199
Brand Name :
Bestone, HTI
Model Number :
HT-18+
Certification :
CE,ROHS,FC
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union
Supply Ability :
more than 500pcs per month
Delivery Time :
3-5 working days
Packaging Details :
Color paper box
Model NO. :
HT-18+
Standard :
Celsius/Fahrenheit
Accuracy :
≥2°C
Usage :
Industrial, Household
Display :
Digital
Measuring Range :
-20ºC ~ +550ºC
High Definition Display Screen :
3.2 Inch Display Screen
Wide Angle Auto Focus :
56° Viewing Angle
New Ultra-Sensitive Detector :
Adopts 12μm Ultra Sensitive Detector
Infrared Resolution :
256X192
Measurement Accuracy :
-15°c~550°c, ±2°c
Measurement Accuracy 2 :
-20°c~15°c±4°c
Transport Package :
Carrying Case
Origin :
China
HS Code :
9027509090
Description
Applications:

Infrared thermal imaging cameras are widely used in many fields such as medical, public security, fire protection, archaeology, transportation, agriculture and geology. It is an ideal choice for electricians and maintenance technicians to quickly locate problem areas.

HT-18+ Handheld Thermal Imaging Camera with 12μm Ultra Sensitive Detector 56° Viewing Angle and 3.2 Inch Display Screen
Features:
  1. New Ultra-Sensitive Detector: ADOPTS 12μm ULTRA SENSITIVE DETECTOR.
  2. High Definition Display Screen :3.2 Inch Display Screen.
  3. Wide Angle Autofocus:56° VIEWING ANGLE.
  4. Automatic Tracking: Three-point simultaneous measurement.
  5. High-Definition Sensor: Measurable far and near 0.5-40m imaging distance, With visible light of 300000 pixels.
  6. Measuring Range: -20℃ ~ +550℃
  7. Wider temperature measurement range, more application scenarios, good equipment, one is enough.
  8. Dual Light Imaging Technology: The fusion of infrared and visible light, combines the advantages of both infrared and visible light, discovering the integration of recognition and improving efficiency.
  9. Five Color Schemes: Multiple pseudo colors can be adjusted, and the image mode can be selected independently.
  10. Powerful Offline Analysis Capabilities: Support PC side offline software for professional temperature analysis and quickly generate analysis reports.
  11. Battery Endurance: FULL BATTERY LIFE 2-3 HOURS, Design of a dedicated detachable rechargeable lithium battery Using 2200mAh lithium battery Through Type-C USB interface Convenient charging and worry-free battery life.
Specification:
Model HT-18+
Detector type Vanadium Oxide Uncooled Infrared Focal Plane
Infrared resolution 256x192
Pixel Size 12μm
Focal length 4.0mm
Field angle 56°(H)x 42°(V)
IFOV 3.75mrad
Working band 8~14um
NETD ≤50mk@25°C, @F/1.0
Image frame rate ≤25Hz
Focusing mode Fixed
Emissivity setting Adjustable from 0.01 ~ 1.00
Temperature measurement mode Center point/hot and cold spot tracking
Color palette Rainbow, iron, cold color, white hot, black hot
Temperature measurement range -20°C~550°C(-4°F~1022°F)
Measurement accuracy -15°C~550°C±2°C或±2%; -20°C~15°C±4°C
Other
Display size 3.2-inch(240*320)
Device storage Built-in 8G (Actually available 6.6G)
Picture /Video format JPG/MP4
Image analysis function Support offline analysis on PC
Language Chinese, English, Russian
Battery Type Dedicated removable rechargeable lithium battery
Battery capacity 2000mAh
Working time 2~3hours
Power interface Type-C
Power configuration 5 minutes / 20 minutes / no automatic shutdown
Work temperature -10°C~+50°C(14°F~122°F)
Storage temperature -20°C~+60°C(-4°F~140°F)
Relative humidity 10%~85%RH(non-condensing)
Product size 90x105x223mm
Product weight 389g

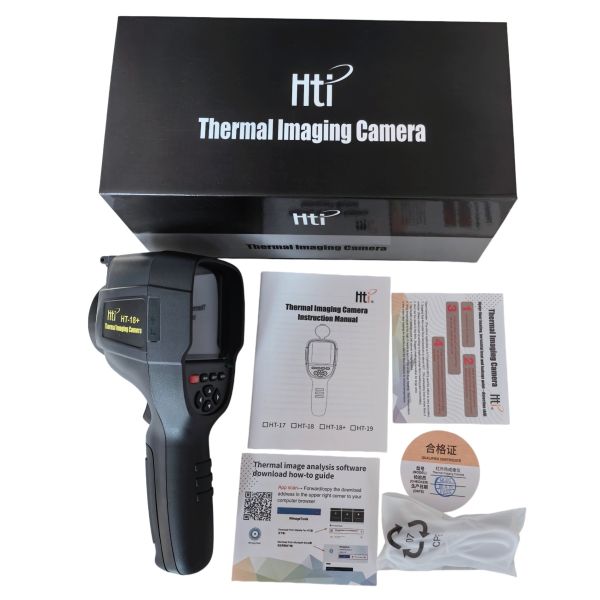

Packing list:
HT-18+ Handheld Thermal Imaging Camera with 12μm Ultra Sensitive Detector 56° Viewing Angle and 3.2 Inch Display Screen
