SL-5868ILEQ Impulse Sound Level Meter with IEC61672 Class 2 USB Data Cable Output
SL-5868ILEQ Impulse Sound Level Meter with IEC61672 Class 2 USB Data Cable Output
SL-5868ILEQ Impulse Sound Level Meter with IEC61672 Class 2 USB Data Cable Output
SL-5868ILEQ Impulse Sound Level Meter with IEC61672 Class 2 USB Data Cable Output
Specifications
MOQ :
1
Price :
US$339
Brand Name :
Bestone
Model Number :
SL-5868ILEQ
Certification :
CE,ROHS
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union
Supply Ability :
More than 200pcs per month
Delivery Time :
3-5 working days
Packaging Details :
Blister packaging+color card
Model NO. :
SL-5868ILEQ
Range :
25dB~130dB (a)
Range Control :
Manual, Three Gears, Linear Range > 60dB
Accuracy :
in Accordance with IEC61672 Standard, Class 2
Time Weighting :
Fast (F), Slow (S), Impulse (I)
Display :
Large Screen Dynamic LCD
The Output Interface :
AC Signal Output
The Output Interface 2 :
USB Data Cable Output
Calibration :
Use Class 1 Sound Level Calibrator
Trademark :
BESTONE
Origin :
China
Description
Impulse Integrating Sound Level Meter SL-5868ileq
The Impulse Integrating Sound Level Meter is a universal instrument capable of measuring sound levels with integration and statistical functions. It can measure accumulated percentile sound levels for comprehensive noise analysis.
Key Features
  • Compliant with GB/T 3785-2010 Level 2, IEC 61672:2013 Class 2, and JJG 188-2017 standards
  • Advanced integration and statistics functions with 800 groups of single measurements and 6 days of scheduled measurements
  • Data storage with read and print capabilities, plus real-time data checking during paused measurements
  • Three selectable time weightings: Fast (F), Slow (S), and Impulse (I)
  • Digital detection technology for enhanced stability and reliability
  • Large screen display with dynamic scale for clear, intuitive readings
  • Optional Bluetooth printer for convenient data printing
  • USB data output for PC connectivity
  • Bluetooth data output option for wireless data transfer
Technical Specifications
Microphone Φ12.7mm (1/2") test condenser microphone
Frequency Weighting A, C, and Lin (Linear)
Range 25dB~130dB (A)
Range Control Manual, three gears, linear range > 60dB
Testing Range 30dB~90dB (dynamic scale display 10dB~100dB)
50dB~110dB (dynamic scale display 30dB~120dB)
70dB~130dB (dynamic scale display 50dB~140dB)
Accuracy In accordance with IEC61672 standard, class 2
Time Weighting Fast (F), Slow (S), Impulse (I)
Display Large screen dynamic LCD, instantaneous sound level with analog meter display
Output Interface AC signal output, USB data cable output
Calibration Use class 1 sound level calibrator
Power Supply 4x1.5V AAA Size (UM-4) Battery
External Power 6V
Weight 185g (Not Including Batteries)
Dimensions 227mm x 63mm x 26mm
Operating Condition Temperature: -10°C~50°C

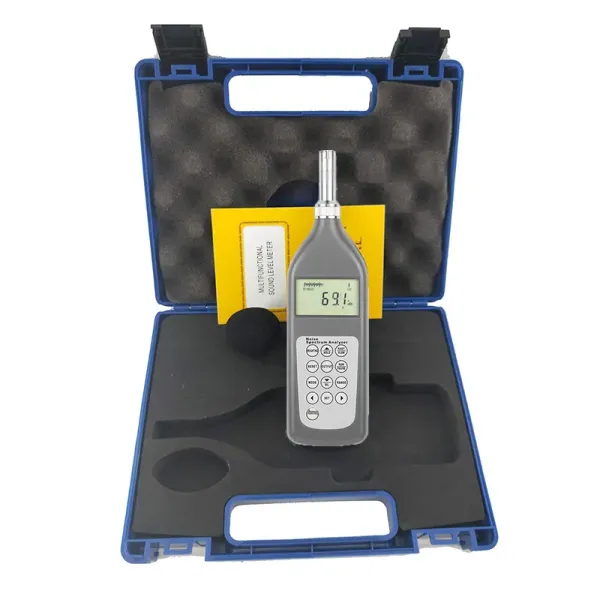

Standard Accessories
  • Main Unit
  • Windscreen
  • Carrying Case (B04)
  • Manual
Optional Accessories
  • CD
  • Data Cable
  • Bluetooth Data Adapter
  • Bluetooth Printer
  • Printer Power Adapter
  • External Power Supply (6V)
Product Images

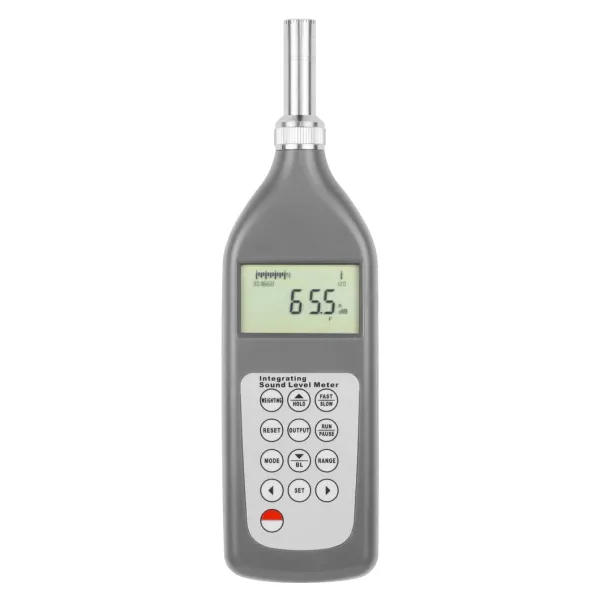

SL-5868ILEQ Impulse Sound Level Meter with IEC61672 Class 2 USB Data Cable Output SL-5868ILEQ Impulse Sound Level Meter with IEC61672 Class 2 USB Data Cable Output SL-5868ILEQ Impulse Sound Level Meter with IEC61672 Class 2 USB Data Cable Output
