SL-5868I Impulse Noise Level Meter IEC61672 Class 2 with Large Screen Dynamic LCD
SL-5868I Impulse Noise Level Meter IEC61672 Class 2 with Large Screen Dynamic LCD
SL-5868I Impulse Noise Level Meter IEC61672 Class 2 with Large Screen Dynamic LCD
SL-5868I Impulse Noise Level Meter IEC61672 Class 2 with Large Screen Dynamic LCD
Specifications
MOQ :
1
Price :
US$285
Brand Name :
Bestone
Model Number :
SL-5868I
Certification :
CE,ROHS
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union
Supply Ability :
More than 200pcs per month
Delivery Time :
3-5 working days
Packaging Details :
Plastic carrying case and white paper box
Model NO. :
SL-5868I
Range :
25dB~130dB (a)
Range Control :
Manual, Three Gears, Linear Range > 60dB
Accuracy :
in Accordance with IEC61672 Standard, Class 2
Time Weighting :
Fast (F), Slow (S), Impulse (I)
Display :
Large Screen Dynamic LCD
Trademark :
BESTONE
Origin :
China
Description

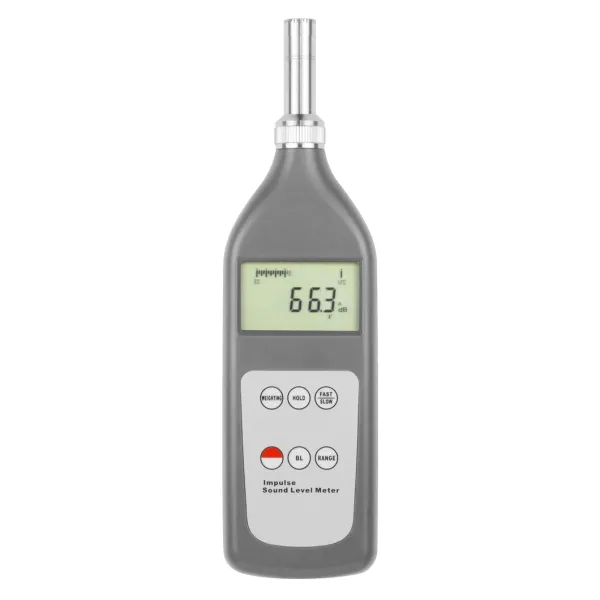

Impulse Sound Level Meter SL-5868I
The Impulse Sound Level Meter is a universal instrument that measures exponential time weighted sound levels and impulse sound levels, providing professional acoustic measurement capabilities.
Key Features
  • Compliant with GB/T 3785-2010 Level 2 and IEC 61672:2013 Class 2 standards, meeting JJG 188-2017 requirements
  • Selectable time weighting: Fast (F), Slow (S), and Impulse (I)
  • Advanced digital detection technology for enhanced stability and reliability
  • Large LCD screen with clear, intuitive display and dynamic scale visualization
Technical Specifications
Microphone Φ12.7mm (1/2") test condenser microphone
Frequency Weighting A, C, and Lin (Linear)
Measurement Range 25dB~130dB (A)
Range Control Manual, three gears, linear range > 60dB
Testing Ranges 30dB~90dB (dynamic scale 10dB~100dB)
50dB~110dB (dynamic scale 30dB~120dB)
70dB~130dB (dynamic scale 50dB~140dB)
Accuracy IEC61672 standard, Class 2
Time Weighting Fast (F), Slow (S), Impulse (I)
Display Large LCD with analog meter display and instantaneous sound level
Calibration Class 1 sound level calibrator compatible
Power Supply 4x1.5V AAA batteries
External Power 6V input
Weight 185g (excluding batteries)
Dimensions 227mm x 63mm x 26mm
Operating Conditions Temperature: -10°C to 50°C
Standard Accessories
  • Main Unit
  • Windscreen
  • Carrying Case (B04)
  • User Manual
Optional Accessories
  • External power supply (6V)
