Specifications
Model Number :
SM208E
Measure Range :
0.01~39990 CD/M²
Delivery Time :
5-8 working days
Resolution :
0.01 CD/M²
Packaging Details :

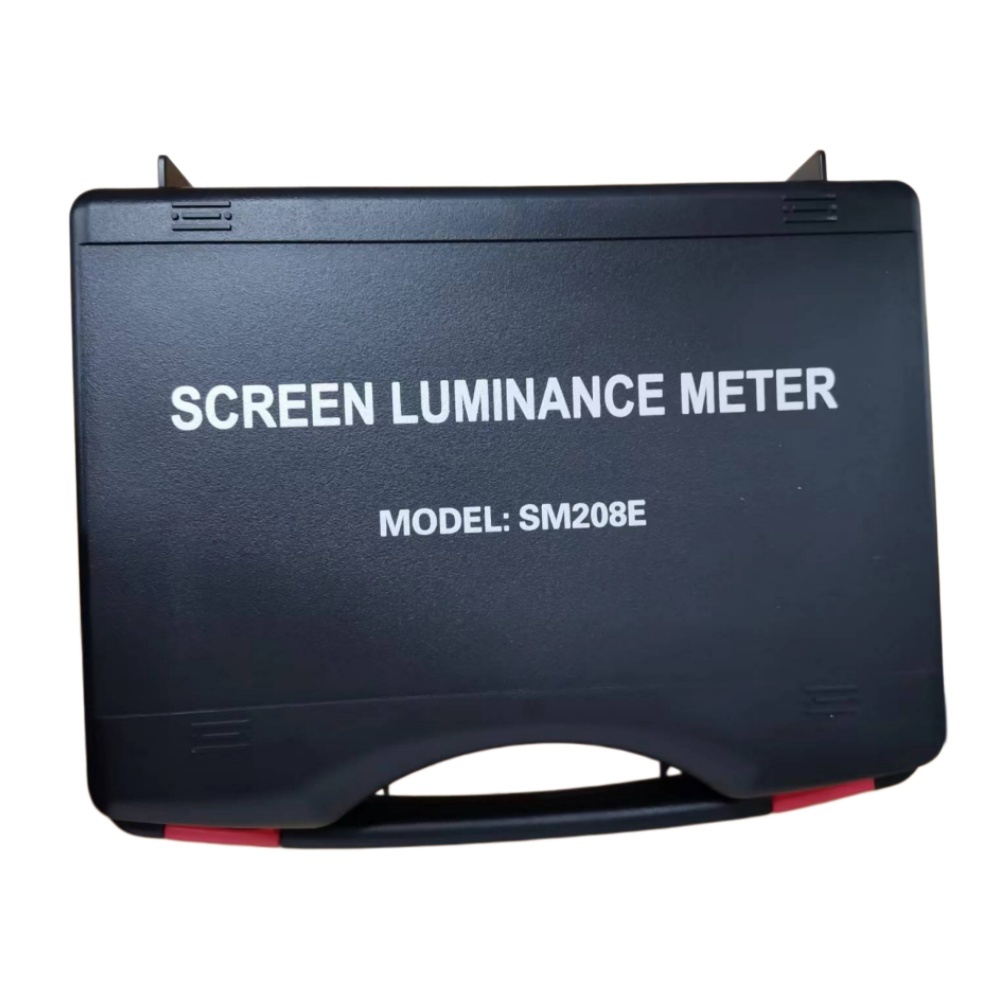

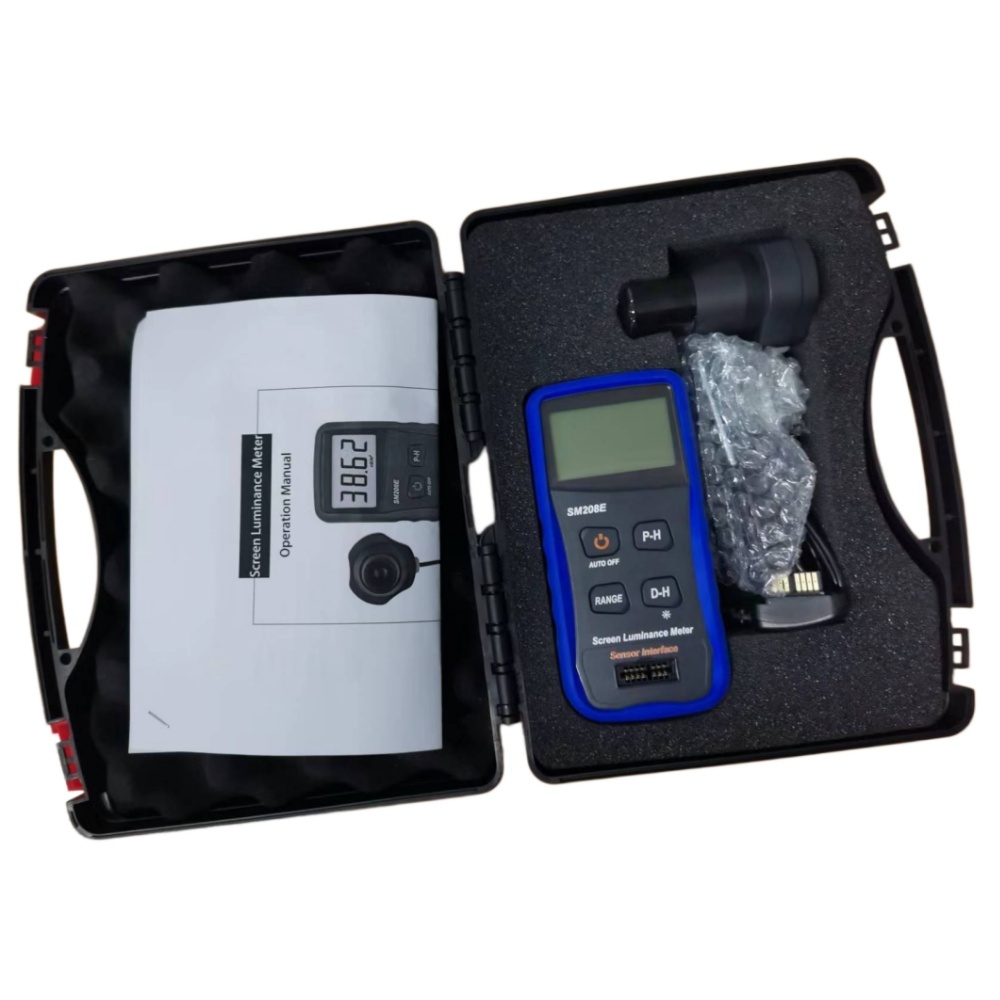

Plastic carrying case
Accuarcy :
± (5% + 1 Digits)
Place of Origin :
CHINA
Measure Distance :
≤0.5m
Certification :
CE
MOQ :
2
Brand Name :
Bestone
Display :
3 3/4 Digit LCD Display,Showing a Maximum Reading
Payment Terms :
T/T
Target Size :
≥20mm
Description

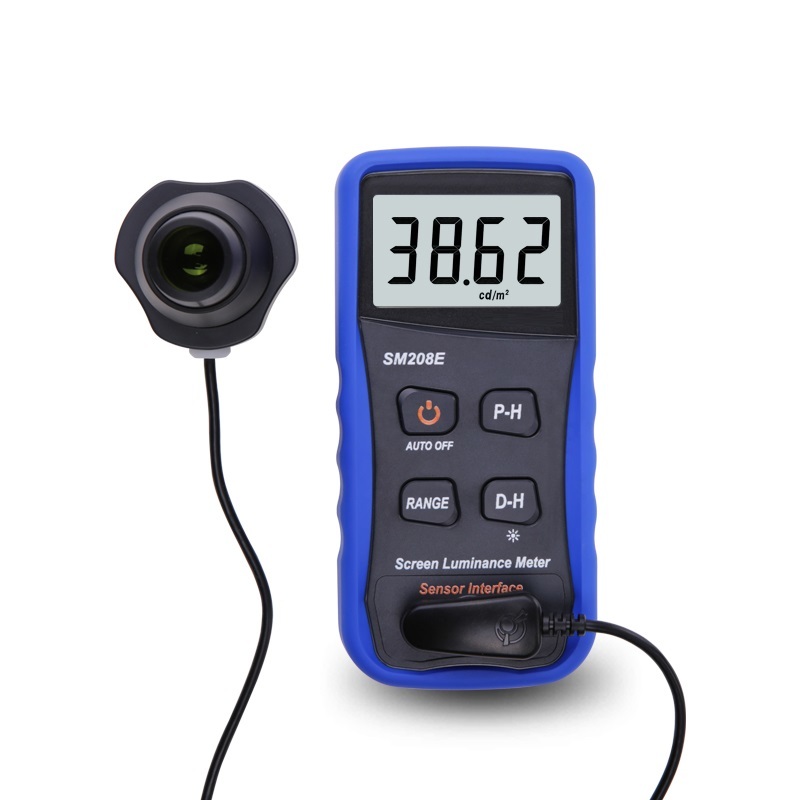

SM208E Screen Brightness Meter Handheld Luminance Tester

Introduction:
This product is a high-precision digital screen luminance meter, which is suitable for the test of light-emitting screen withФ> 20mm. The whole product adopts split design, which is small, portable and easy to use. The main body is covered with rubber, which is shockproof and fall-resistant. Built-in button battery with strong endurance. The connecting plug is designed with anti-reverse connection, easy to plug and pull, and reliable to contact. Using signal shielded wire, the reading is stable and the test is accurate.
Scope of application:
It is suitable for measuring the brightness of various fluorescent screens, CRT displays, monochrome transmission screens, color transmission screens, monochrome backlit LCD screens, LCD backlights, color LCD screens of mobile phones, color computer TV screens and security indicator screens, and it is also widely used in medical X-ray, electroluminescence and other measurement fields.

Product Features
  • Silicon photocell detector with spectral characteristics strictly calibrated to comply with national secondary illuminance standards, ensuring accurate measurement and excellent stability
  • Wide measuring range from 0.01 cd/m² without light reducer to 39,990 cd/m² brightness
  • High-definition LCD display with backlight function for clear visibility in various lighting conditions
  • Value hold function and peak hold function for convenient reading and analysis
  • Low voltage prompt function to alert users when battery replacement is needed
  • Auto shutdown function to conserve battery life
  • Powered by three button batteries with battery life 1.5 times that of ordinary batteries
Technical Specifications
Product Name Screen Brightness Meter
Display 3 3/4 Digit LCD Display, Showing A Maximum Reading Of 3999
Overload Display Overload Displays "OL"
Measurement Range 0.01~39,990 cd/m²
Measurement Distance ≤0.5m
Target Size ≥20mm
Resolution 0.01 cd/m²
Accuracy ± (5% + 1 Digits)
Indication Error ≤± (8% Reading + 1 Digits)
Linearity Error ≤± (0.5% Reading + 1 Digits)
Temperature Characteristic ≤± (0.1% Reading + 1 Digits)
Spectral Response Characteristics Comply With National Secondary Illuminance Meter Standard
Environmental Specifications
Operating Temperature & Humidity 0°C~40°C (32°F~104°F) 0~70% RH
Storage Temperature & Humidity -10°C~50°C (14°F~122°F) 0~80% RH
Power & Physical Specifications
Power Supply 3 Cells CR2450 3V Lithium Button Battery
Battery Life About 300 Hours of Continuous Use (Without Backlight)
Auto Power Off Delay Time 5 Minutes
Size Host: 160×78×34mm

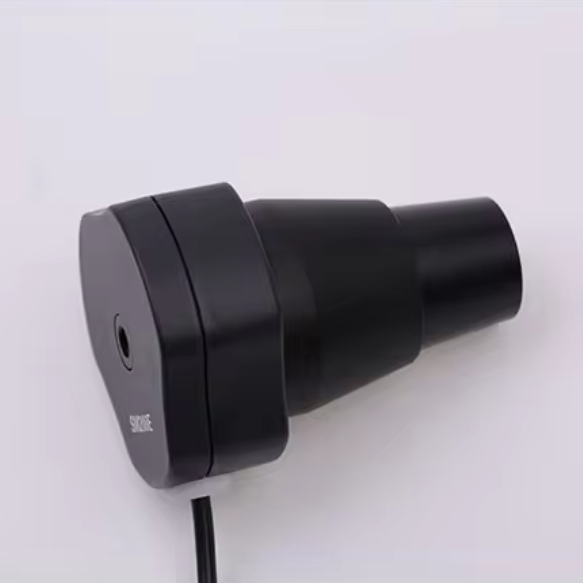

Probe: Φ50 (Probe Diameter) × 80mm (Height)
Probe Extension Cable: 1000mm
Weight About 390 Grams (Including Battery, Probe)
