SM218E Screen Luminance Meter with 0.01～39990cd/m2 Range, Silicon Photocell Detector and HD LCD Display
SM218E Screen Luminance Meter with 0.01～39990cd/m2 Range, Silicon Photocell Detector and HD LCD Display
SM218E Screen Luminance Meter with 0.01～39990cd/m2 Range, Silicon Photocell Detector and HD LCD Display
SM218E Screen Luminance Meter with 0.01～39990cd/m2 Range, Silicon Photocell Detector and HD LCD Display
SM218E Screen Luminance Meter with 0.01～39990cd/m2 Range, Silicon Photocell Detector and HD LCD Display
SM218E Screen Luminance Meter with 0.01～39990cd/m2 Range, Silicon Photocell Detector and HD LCD Display
Specifications
Target size :
≥10mm
Certification :
CE
Resolution :
0.01cd/m2
Model Number :
SM218E
Power supply :
3 CR2450 3V button lithium batteries
MOQ :
2
Delivery Time :
5-8 working days
Instrument Size :
main instrument:160x78x34mm; Probe: Φ50x80mm; Probe extension line:1000mm
Payment Terms :
T/T
Packaging Details :
Plastic carrying case
Measuring range :
0.01～39990cd/m2
Brand Name :
Bestone
Indication error :
≤±(8%reading+1 digit)
Place of Origin :
CHINA
Description

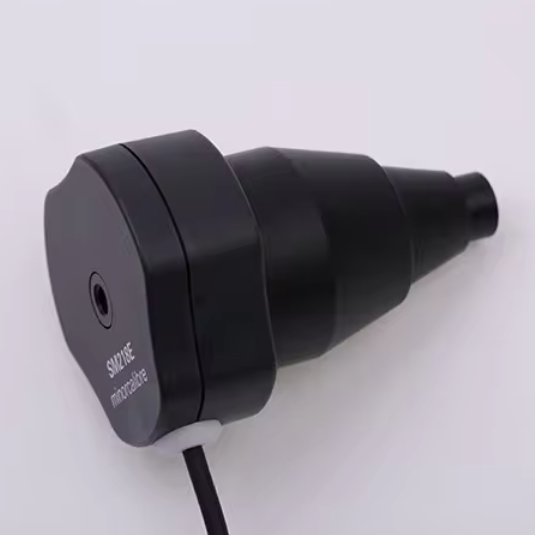

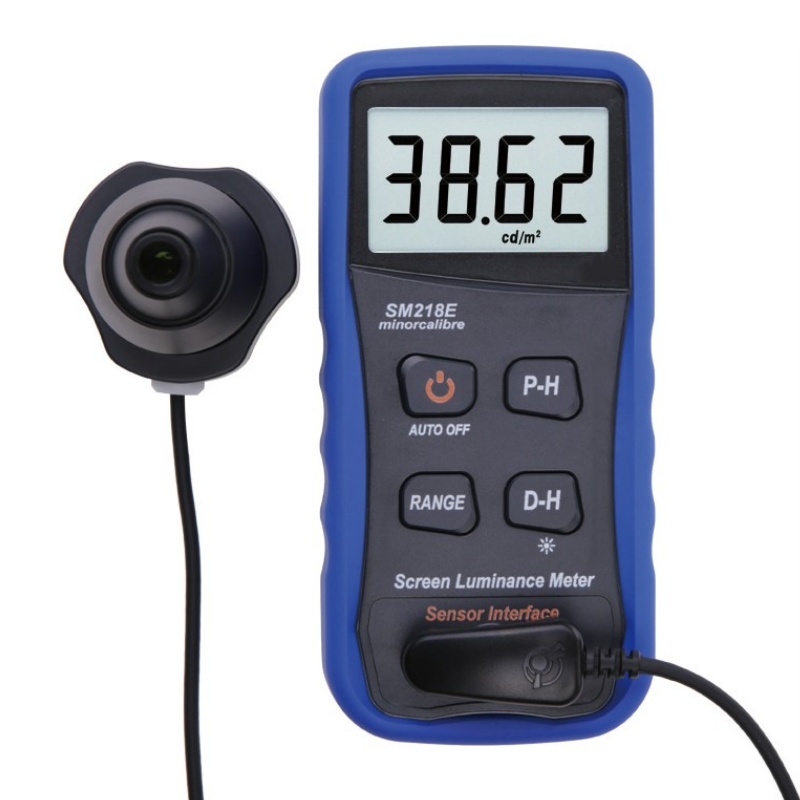

SM218E Screen Luminance Meter
Product Overview

The SM218E is a professional digital screen luminance meter designed for measuring small-area light-emitting screens with diameters greater than 10mm. Featuring a split design with a rubber-coated host shell for shockproof and fall-resistant protection, this instrument offers exceptional durability and performance.

Key Features
  • Split design with rubber-coated host shell for enhanced durability
  • Built-in button batteries with extended battery life
  • Anti-reverse connection probe design for easy and secure connection
  • Shielded extension cable for stable readings and accurate testing
  • Silicon photocell detector with strict spectral correction
  • Wide measuring range: 0.01 cd/m² to 39,990 cd/m² without dimmer
  • High-definition LCD display with backlight function
  • Data hold and peak hold functions
  • Low voltage prompt and automatic shutdown functions
  • Extended battery endurance - 1.5 times longer than ordinary batteries
Applications

Specifically designed for measuring brightness of various display screens including fluorescent screens, CRT screens, transmission screens, LCD screens, mobile phone displays, computer/TV screens, and security indicator screens. Also widely used in medical X-ray, electroluminescence, and other measurement fields.

Technical Specifications
Display 3 3/4-digit LCD, maximum reading of 3999
Measuring Range 0.01 - 39,990 cd/m²
Resolution 0.01 cd/m²
Measuring Distance ≤ 0.1m
Target Size ≥ 10mm
Indication Error ≤ ±(8% reading + 1 digit)
Spectral Response Conforms to national secondary illuminance meter standard
Linear Error ≤ ±(0.5% reading + 1 digit)
Temperature Characteristic ≤ ±(0.1% reading + 1 digit)
Power Supply 3 CR2450 3V button lithium batteries
Battery Life Approximately 300 hours continuous use (without backlight)
Automatic Shutdown 5 minutes
Operating Conditions 0-40℃ (32°F-104°F), 0-70% RH
Storage Conditions -10℃-50℃ (14°F-122°F), 0-80% RH
Dimensions Main instrument: 160×78×34 mm
Probe: Φ50×80mm
Probe extension: 1000mm
Weight Approximately 360g (including battery and probe)

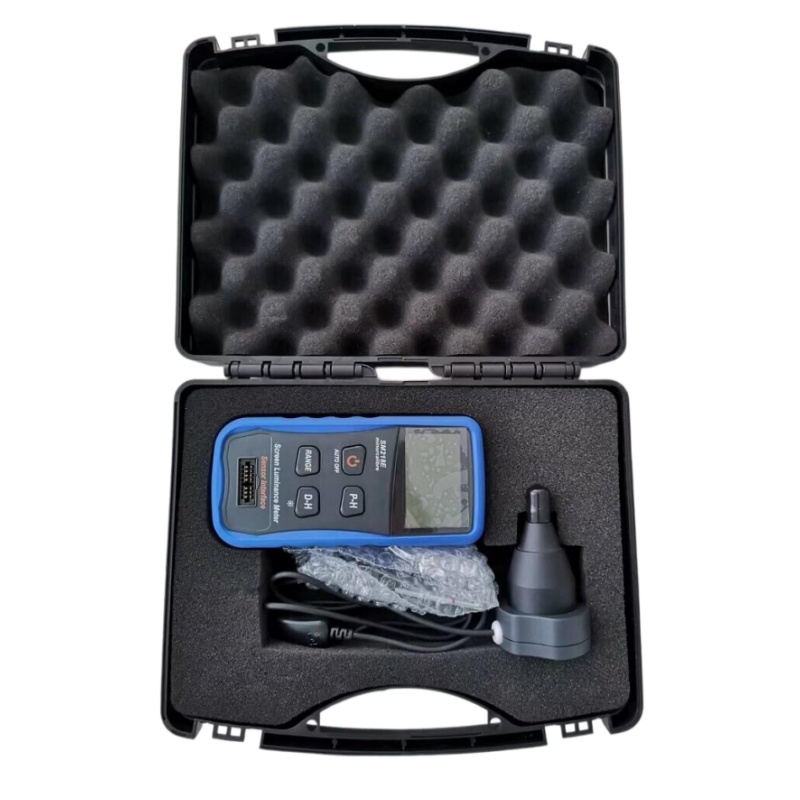

Package Contents
  • 1 main instrument
  • 1 probe with cable
  • 1 portable carrying box
  • 3 CR2450 3V button lithium batteries (not included for international shipping)
  • 1 operation manual
  • 1 tweezers
  • 1 screwdriver
