Specifications
MOQ :
2
Brand Name :
Bestone
Model Number :
WTM-1000, WTM1100
Certification :
CE
Place of Origin :
CHINA
Price :
US$167
Payment Terms :
T/T,Western Union
Supply Ability :
more than 100pcs per month
Delivery Time :
3-5 working days
Packaging Details :
plastic carrying case and white paper box
Model NO. :
WTM-1000, WTM1100
Range :
0~100%
Resolution :
0.1
Accuracy :
±2%
Sample Thickness :
<18 mm/0.7 Inch
Sample Thickness 2 :
<10 mm/0.4 Inch
Light Source :
LED
Measuring Mode :
Single / Continuous
Operating Conditions :
Temperature:0~50ºC Humidity:,90%
Transport Package :
Gift Box and Carrying Case
Specification :
25cmx7cmx5cm, 0.2kgs, plastic
Trademark :
Bestone
Origin :
China
Description
Window Tint Meter for Glass Car (WTM-1000, WTM-1100)
The WTM-1000 and WTM-1100 Window Tint Meter is designed for testing light transmittance of automobile glass and transparent or semi-transparent objects. Compact and portable, it is ideal for field measurement applications.
Applications
  • Automobile manufacturing and testing, field measurement of glass products
  • Aerospace industry applications
  • Measurement of transmittance for glasses, sunglasses, and anti-suntan protective films
  • Transmittance or haze measurement of plastic products
  • Transmittance testing of other transparent or semi-transparent materials
Key Features
  • Handheld device for measuring light transmission through windows
  • Designed in accordance with GB2410-80, ASTM D1033-61, JIS K7105-81 standards
  • Digital display with wide measurement range and high resolution
  • One-key calibration for easy operation
  • Solid construction, compact size, lightweight and portable
  • Continuous measuring mode capability
  • RS-232C data output for PC connectivity
Technical Specifications
  • Display: 10mm LCD
  • Resolution: 0.1
  • Accuracy: ±1%
  • Wavelength: 550 nanometers
  • Measurement range: 0 to 100% light transmission
  • Interface: RS-232C
  • Operating conditions: 0-50°C, <90% RH
  • Testing time: Maximum 4 seconds
  • Power source: 4x1.5V AAA batteries
  • Weight: 100g (excluding batteries)
Model Comparison
Specification WTM-1100 WTM-1000
Display LCD
Range 0~100%
Resolution 0.1
Accuracy ±2%
Sample Thickness ≤18 mm/0.7 inch ≤10 mm/0.4 inch
Light Source LED
Measuring Mode Single / Continuous
Operating Conditions Temperature: 0~50ºC, Humidity: <90%
Power Supply 4x1.5V AAA(UM-4) Battery
Size - Main Unit 126x65x27 mm 126x65x27 mm
Size - Sensor 125x38x38 mm ------
Weight 100g (Not Including Batteries)
Standard Accessories
  • Main Unit
  • Testing Block
  • Carrying Case (B04)
  • Operation Manual
Optional Accessories
  • USB Data Cable with Software
  • Bluetooth Data Adapter with Software

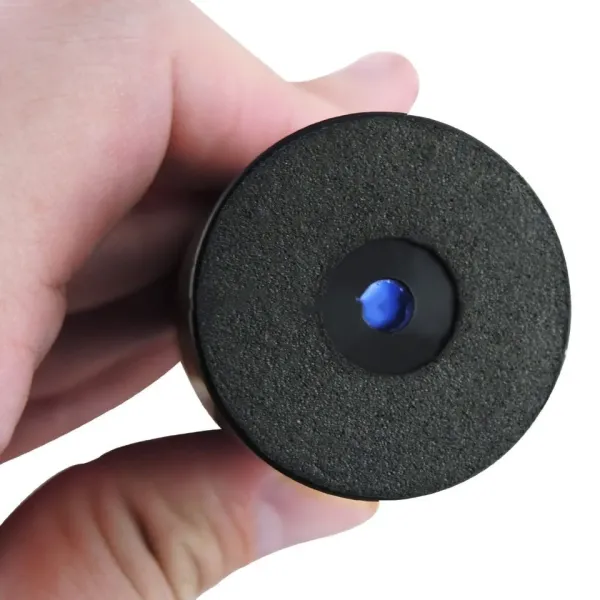

Product Images
