GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement
GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement
GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement
GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement
GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement
GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement
GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement
GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement
GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement
GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement
GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement
GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement
Specifications
MOQ :
10
Price :
negotiable
Brand Name :
Bestone, Benetech
Model Number :
GT5307B
Certification :
CE,ROSH,FCC
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 1000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
bag and paper box
Model NO. :
GT5307B
Rated Voltage :
100V/250V / 500V /1000V
Measure Range 1 :
0~1.5gΩ
Open Circuit Voltage :
DC 100V +20% -0% ;DC 250V +20% -0%
Open Circuit Voltage 2 :
DC 500V +20% -0%; DC 1000V +20% -0%
Measure Range 2 :
0~5.5gΩ/0~5.5gΩ/0~5.5gΩ
Transport Package :
Box and Carrying Bag
Specification :
CE, ROHS
Trademark :
BESTONE
Origin :
China
Description
GT5307B AC/DC Measurement Short Circuit Protection Digital Megger Insulation Resistance Tester
Product Overview

This advanced insulation/continuity tester features a new design with large-scale integrated circuits for precise measurement of insulation resistance, DC voltage, and AC voltage. With comprehensive functions, high accuracy, and stable performance, it's ideal for testing transformers, motors, cables, switches, and various electrical equipment.

Key Features
  • Insulation resistance measurement with multiple voltage options (100V/250V/500V/1000V)
  • AC and DC voltage measurement with automatic identification
  • Small resistance measurement capability (0-999Ω)
  • Live detection and short circuit protection for tested resistance
  • Measurement data locking function
  • Polarization index and absorption ratio testing
  • Automatic discharge and low battery reminder
  • Large LCD screen with clear digital display
  • External DC power supply support (DC9V 1.5A)
  • 10M internal resistance measurement
  • Over limit alarm with red indicator light and buzzer
  • High voltage alarm and test voltage display
Technical Specifications
General Specifications
Display Large-screen LCD (up to 500 counts)
Over Limit Indication Hi mark appears on insulation resistance range
Auto Range Higher range: 500 counts; Lower range: 1 count
Sampling Rate 2 times per second
Operation Environment Temperature: 0°C-40°C / Humidity: ≤85%
Storage Environment Temperature: -20°C-60°C / Humidity: ≤90%
Power Supply DC9V (6x1.5V AA batteries)
Dimensions 176*110*77mm
Insulation Resistance Test
Rated Voltage 100V/250V/500V/1000V
Measurement Range 0~1.5GΩ/0~5.5GΩ/0~5.5GΩ/0~5.5GΩ
Accuracy ±5%rdg±3dgt (above 100KΩ)
Small Resistance Measurement
Open Circuit Voltage About 5.0V
Measuring Range 0-999Ω
Resolution 0.1Ω

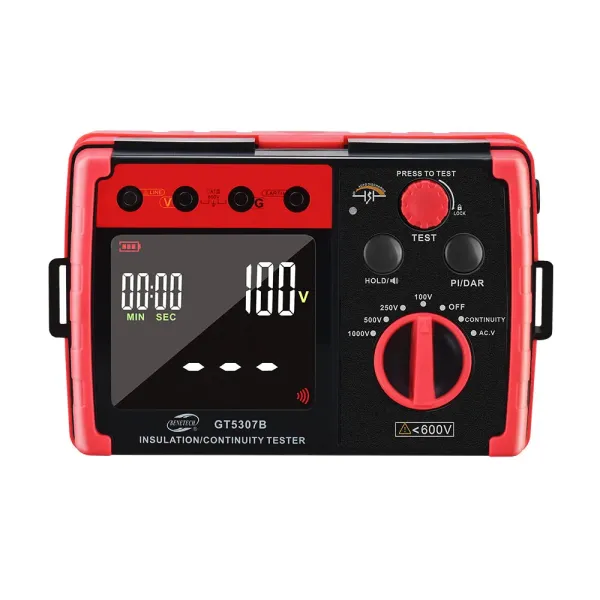

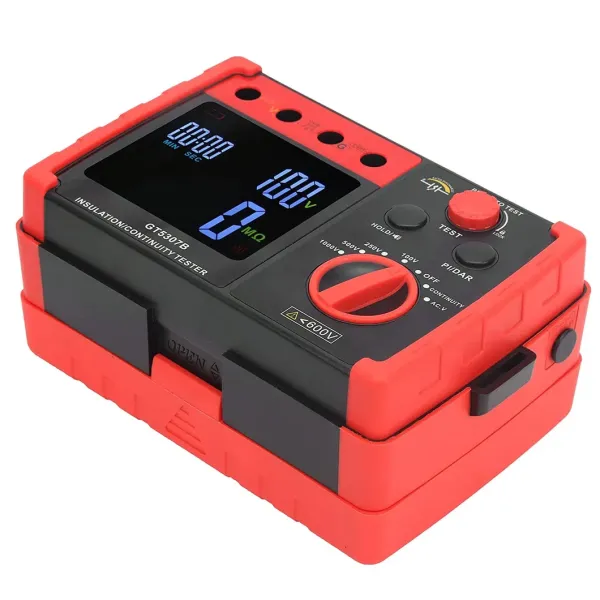

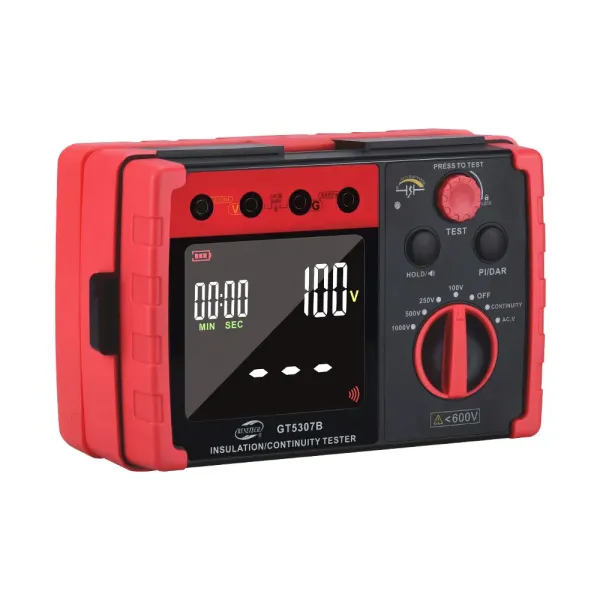

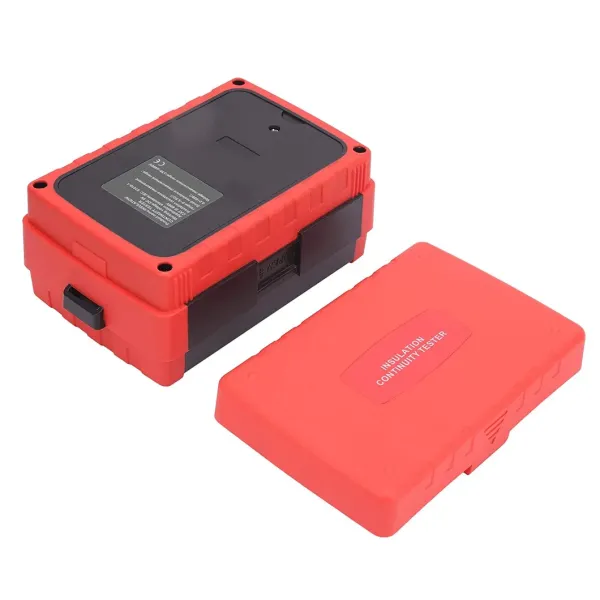

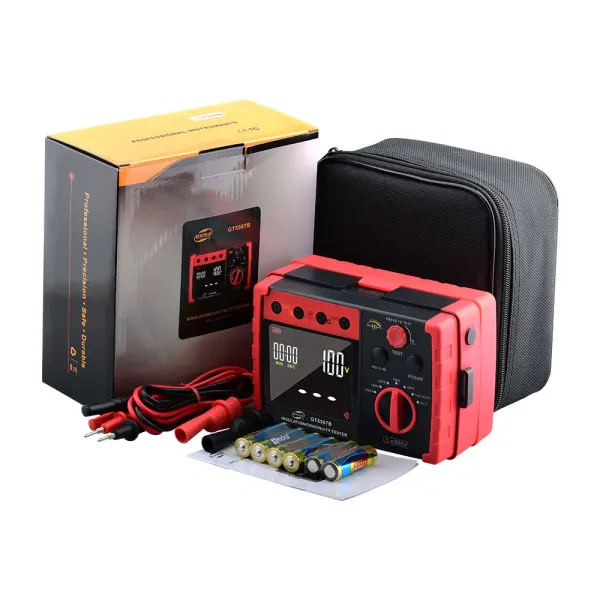

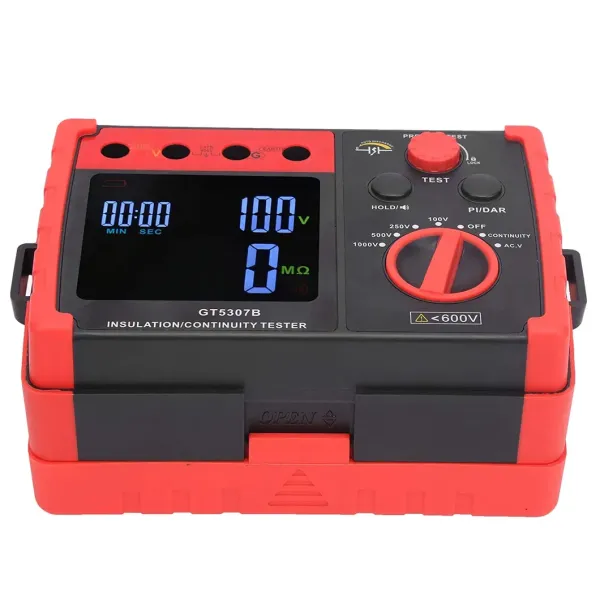

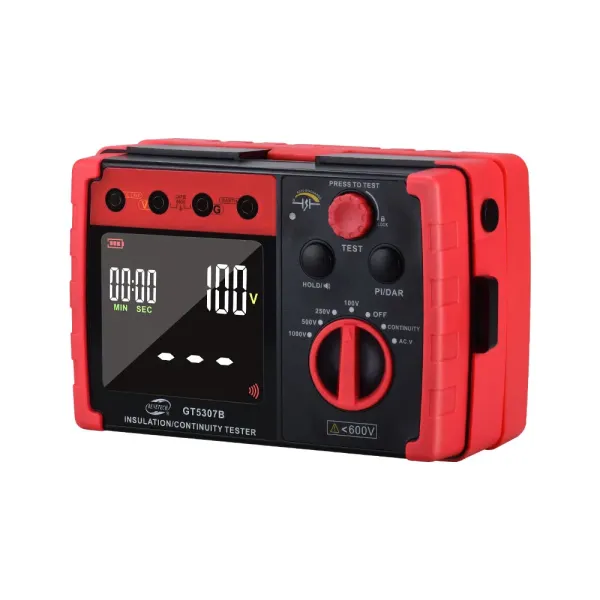

Product Images
