HT-C423 Smartphone Thermal Imaging Camera
HT-C423 Smartphone Thermal Imaging Camera
HT-C423 Smartphone Thermal Imaging Camera
HT-C423 Smartphone Thermal Imaging Camera
HT-C423 Smartphone Thermal Imaging Camera
HT-C423 Smartphone Thermal Imaging Camera
HT-C423 Smartphone Thermal Imaging Camera
HT-C423 Smartphone Thermal Imaging Camera
Specifications
Brand Name :
Bestone,HTI
Model Number :
HT-C423
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
50
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
More than 5000pcs per month
Delivery Time :
3-5 working days

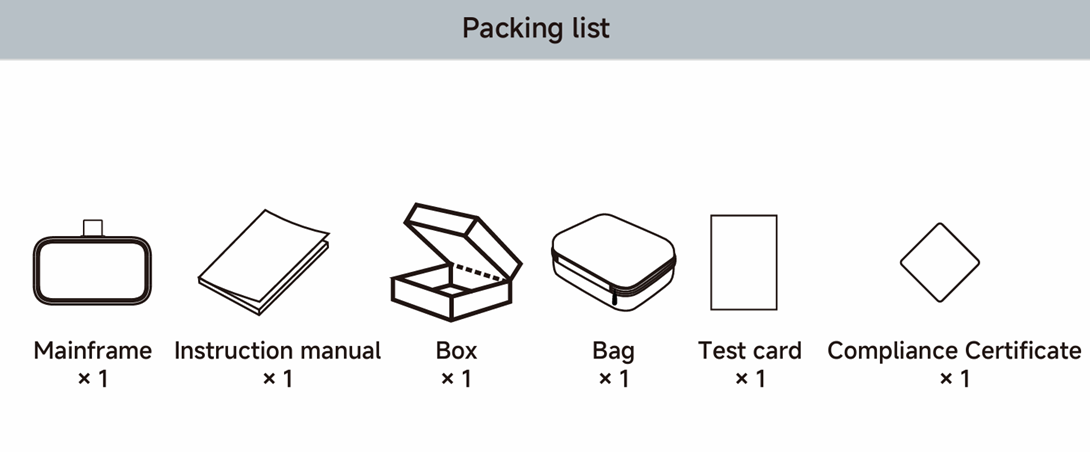

Packaging Details :
box
Infrared resolution :
256×192 (ISR:512×384)
Lens focal length :
3.5mm
NETD :
≤50mk@25℃, F#1.0
Temperature measurement range :
-20℃~+550℃
Temperature measurement accuracy :
±2℃ or ±2%
Product weight :
27g±1g
Description

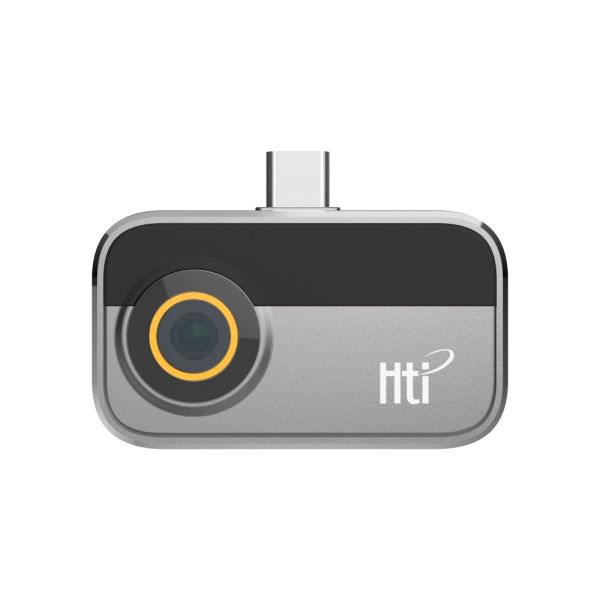

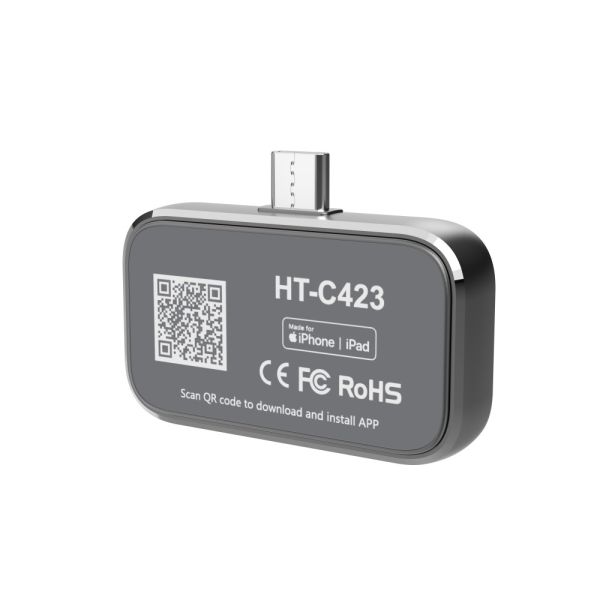

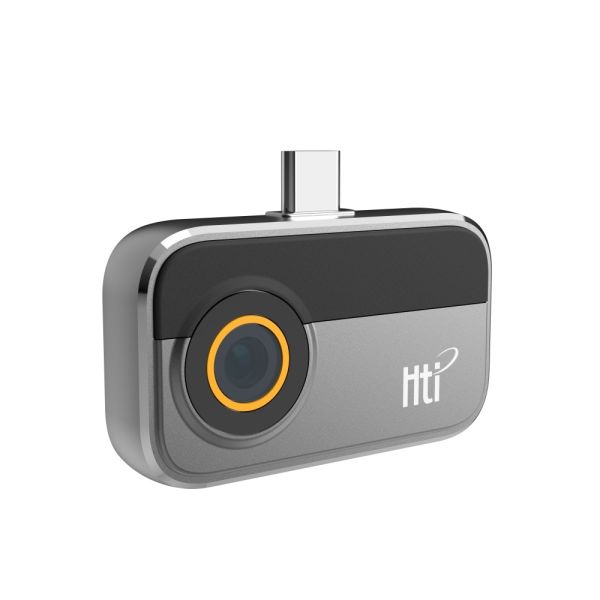

Smartphone Thermal Imaging Camera Model HT-C423
Scene Applications

Multi-scenario applications including HVAC maintenance, electrical and building inspections, water pipe leakage detection, rapid identification of short circuits in printed circuit boards, night-time pet search, humidity monitoring, and more.

Key Features
  • Multi-scenario applications: Lightweight and portable, plug and play design suitable for HVAC maintenance, electrical and building inspection, water pipe leakage detection, printed circuit board inspection, night pet search, and more
  • 15 pseudo-color imaging modes: White Hot, Black Hot, Fusion, Iron Red, Dark brown, Red, Green Hot, Rainbow, Fusion-1, Rainbow-2, Iron Red-1, Color-1, Color-2, Ice and Fire, Rain for enhanced visualization in different scenarios
  • ISR super resolution 512×384: AI pixel doubling technology provides sharp details without temperature loss, clear edges of small targets, intelligent dark noise suppression, and capture of small temperature differences at long distances
  • Dual system support: Compatible with both Android and Apple systems, eliminating the need for separate devices for different operating systems
Technical Specifications
Model number HT-C423
Detector type Vanadium oxide non-cooled focal plane
Infrared resolution 256×192 (ISR:512×384)
Lens focal length 3.5mm
NETD ≤50mk@25℃, F#1.0
Pixel size 12μm
Infrared response band 8~14um
Frame rate ≤25Hz
Spatial resolution 3.75mrad
Field of view 50°(H)×37.2°(V)
Focus adjustment method Fixed focal length
Temperature measurement range -20℃~+550℃
Temperature measurement accuracy ±2℃ or ±2%
Temperature measurement distance 0.3m~3m
Take a photo / Record a video Support
Image/Video Format JPG/MP4
Language Chinese, English
Overall Power Consumption 355mW

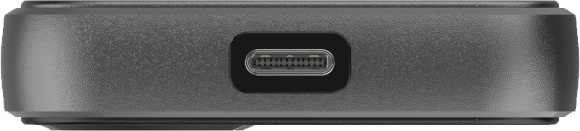

External interface Type-C, USB2.0
Working temperature -20℃ to +50℃
Storage temperature -45℃ to +75℃
Product size 57mm×32mm×11.5mm
Product weight 27g±1g
