Specifications
MOQ :
1
Delivery Time :
3-5 working days
Repeatability :
△E*ab ≤0.03
Certification :
CE,ROHS
Weight :
390g
Model Number :
86178
Spectral Range :
400-700nm
Supply Ability :
More than 500pcs per month
Brand Name :
Bestone
Spectral Interval :
10nm
Payment Terms :
T/T,Western Union
Price :
Negotiable
Measuring Aperture :
1mm
Place of Origin :
CHINA
Inter-Instrument Agreement :
△E*ab<=0.4
Packaging Details :
box
Description
86178 Small Aperture Spectrophotometer, Lab Colorimeter for Color Measurement

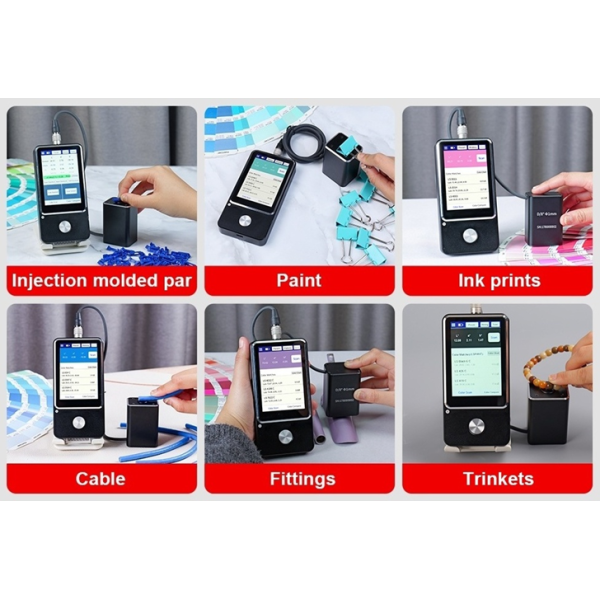

This small-aperture, multifunctional colorimeter features a 1mm measuring aperture, ideal for color measurement of small workpieces and special-shaped materials. The split design allows precise probe alignment with small objects, and the probe can be inverted for easy measurement without obstructing the host reading. The 3.5-inch IPS color touch screen provides an excellent user experience.
Key Features
  • 1mm Measuring Aperture:
    High accuracy for focused measurement of small, smooth, and opaque surfaces
  • 3.5-inch Touch Screen:
    Intuitive interface with easy color difference comparison
  • Lab Values Indication:
    Color deviation indicator with assistance for color adjustment
  • Built-in Multiple Electronic Color Charts:
    Quick color card matching with accuracy greater than 90%
  • Spectral Reflectance Curves:
    Professional color data display for hue, saturation, and depth analysis
  • Excellent Repeatability:
    △E*ab ≤0.03 meeting first-level standards of the National Institute of Metrology
  • Multiple Color Spaces and Difference Formulas:
    Meets diverse industry requirements
  • Advanced Quality Control:
    Manual △E threshold setting for intelligent color difference assessment
  • Locating Plate Included:
    Ensures precise alignment for accurate measurement data
  • Mobile App Connectivity:
    Share color data and digitize color management
  • Free PC Software:
    Enhanced color difference statistical analysis with data import/export capabilities
  • Full Spectrum LED Light Source:
    Comprehensive spectral distribution for accurate measurement results
  • D/8 Measuring Geometry:
    Internationally accepted illumination method with specular reflection light (SCI)
Technical Specifications
Illumination Geometry D/8, specular component include (SCI)
Illumination Light Source Full spectrum LED light source
Spectral Range 400-700nm
Spectral Interval 10nm
Measuring Aperture 1mm
Measurement Conditions Light source D65, field of view 10°
Measuring Time About 1s
Color Space CIE Lab, Luv, LCh, Yxy, CMYK, RGB, HSL, HSV, WI-98, WI-Ganz, WI-R457, WI-Hunter, YI-98, Reflectance
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE*cmc(1.4:1)
Repeatability Standard deviation ΔE*ab is within 0.03
Inter-Instrument Agreement △E*ab<=0.4, based on avg. of 12 BCRA series II tiles
Dimension Main unit: 132 × 66.6 × 20mm (L*W*H)
Probe: 45.4 × 37.3 × 64.1mm (L*W*H)
Weight About 390g
Power Supply Rechargeable lithium battery 3.7V@4000mAh, can measure 10,000 times continuously under full charge
Display 480 * 320 dot matrix IPS color screen
Language Simplified Chinese, English, Turkey
Charging Port USB (Type-C)
Operating Temperature Range 0~45℃, 0~85%RH (no condensation)
Storage Temperature Range -25~55℃, 0~85%RH (no condensation)
Package Contents
No. Description Quantity Unit
1 Spectrophotometer 1 Set
2 USB cable 1 pcs
3 Cleaning cloth 1 pcs
4 Locating plate 1 pcs
5 User manual 1 pcs
6 Certificate / Warranty card 1 pcs
7 Calibration report 1 pcs
