CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring
CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring
CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring
CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring
CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring
CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring
CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring
CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring
CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring
CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring
CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring
CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring
CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring
CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring
Specifications
MOQ :
2
Brand Name :
Bestone
Model Number :
CM-200S
Certification :
CE
Place of Origin :
CHINA
Price :
negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
more than 100pcs per month
Delivery Time :
5-8 working days
Packaging Details :
plastic carrying case and white paper box
Viewing Geometry :
45°/0°
Light Source :
D65
Storage :
99 Set
Application :
Color Measuring
Description
CM-200S Digital Color Meter Colorimeter
Application
The CM-200S is an extremely compact, easy-to-use tristimulus colorimeter specifically designed for measuring color differences between two colors. This instrument is ideal for measuring the color of non-lighting and non-fluorescent samples including textiles, paper, leather, and painting materials. It serves as an essential tool for quality control and wide industrial applications.
Key Features
  • Color difference display in multiple formats: (L*, a*, b*), (E*ab, C*ab, H*ab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw)
  • Color space display options: (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw)
  • Advanced statistical functions including Maximum, Minimum, Average and Standard Deviation
  • Color difference tolerance settings for PASS/WARN/FAIL evaluation
  • Storage capacity for 9 color-difference target colors
  • User calibration function for enhanced accuracy
  • Auto memory function with 99 data sets and read capability
  • Digital backlight display for clear visibility
  • Auto power off function (approximately 3 minutes)
  • USB and Bluetooth data output connectivity
  • PC connectivity via USB data output
  • Optional Bluetooth data output capability
Technical Specifications
Display Triple 4 digit LCD Display
Auto Power Off Approximately 3 minutes
Data Memory Capacity 99 sets (Direct reading from LCD display)
Low Battery Indication ✓ Included
Illuminating/Viewing Geometry 45°/0°: Illumination at 45°, measurement at 0°
Measuring Range L*: 5 to 100
Measurement Conditions Observer: CIE 2° Standard Observer
Illuminant White LED lamp
Repeatability Standard deviation within E*ab 0.5 (Average of measurements of standard white plate)
Minimum Interval Between Measurements Approximately 2 seconds
Operating Temperature & Humidity 0~40°C (32~104°F), < 85% RH
Storage Temperature & Humidity -10~40°C (14~104°F), < 70% RH
Power Source 4 x 1.5 AAA (UM-4) Batteries
Dimensions 140 x 73 x 35mm (5.5 x 2.9 x 1.4 inches)
Weight (Without Batteries) Approximately 220g
Standard Accessories

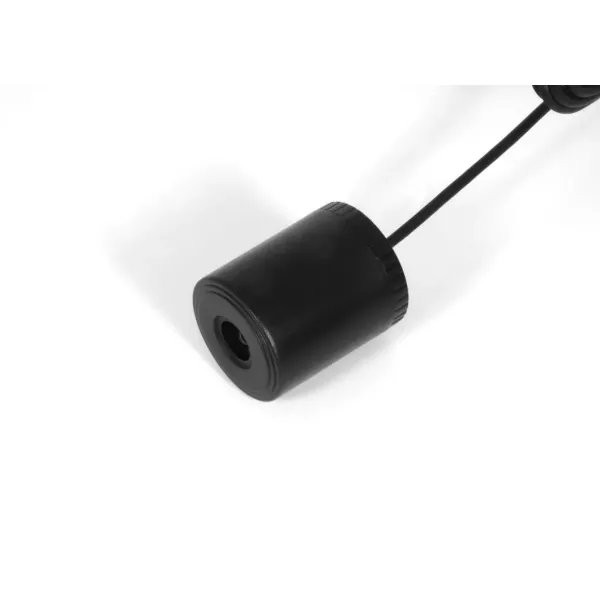

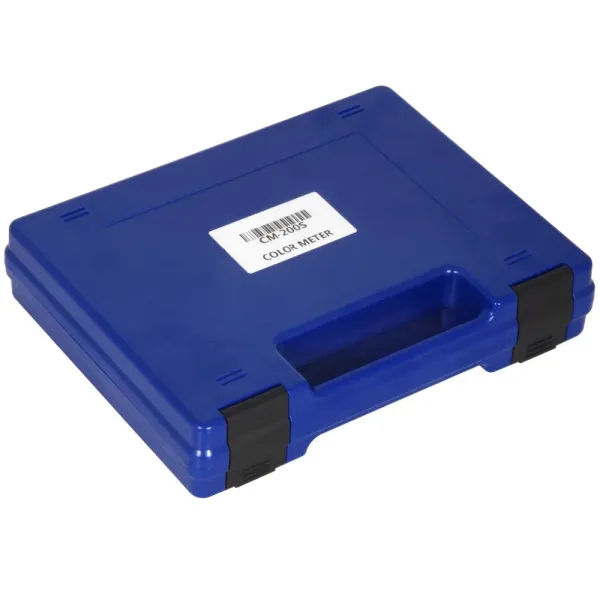

Main Unit, Measuring Head, White Calibration Card, Carrying Case (B04), Manual
Optional Accessories
USB Data Cable with Software, Bluetooth Data Adapter with Software
Product Images
CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring
