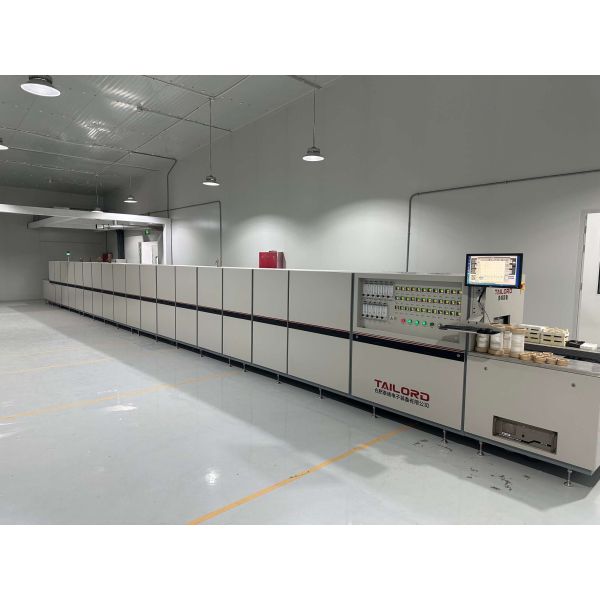

Ceramic capacitor SLK3020-1810Z Belt Sintering Furnace

Tailord Belt Sintering Furnace delivers exceptional precision and reliability for continuous thermal processing. Designed with a high-strength stainless steel mesh belt and multi-zone temperature control, it ensures uniform heating, stable performance, and consistent product quality. With an energy-efficient design, modular construction, and flexible customization, this furnace is ideal for mass production in metallurgy, electronics, and automotive industries.

1. Equipment Condition

5.1 Equipment Transportation and Onsite Installation

a. The furnace will be wooden box packaging,use container transport to Chinese port.

b. The Transportation mode: integral transportation, the total length of the furnace is 17500 mm, the width is 1200mm, the height is 1450mm.

c. Unload & Installation Equipment: 2 hydraulic forklifts with 5 ton capacity (or 1 crane with 10 ton).

d. Unpack and Location: When the equipment arrived, the customer inspects the furnace for damage, if everything is good, unload and place the furnace to the desired location.

e. Preparation before Installation: The power and exhaust hood and other conditions must be prepared by the customer before installing the equipment. Please see “The Operational Condition of the Equipment” for details.

f. Others: the unloading, location and outside wiring, exhaust hood of the equipment must be prepared by the customer.

5.2 The Operational Condition of the Equipment

a. Environment Condition: Temperature 0~40℃, Humidity: < 80%RH, no corrosive gas, no strong air current.

b. Compressed air: work pressure of 0.3 to 0.5 MPa, gas consumption about 20 - 30 m³/ h.

c. Ventilation System: non-contact exhaust system; exhaust capacity is more than 40m³/ h.

d. Ground: level, no obvious vibration, load bearing＞500kg/m².

e. Power(TBD): Capacity great than 305 kVA, 3 Phases 5 Lines, Voltage: 220/380V , Frequency 50HZ, the cable’s color: Fire line: red, yellow, green , Zero line: blue, Ground line: yellow-green.

f. Installation Area: more than 20000×3000×3000mm(L×W×H), Installation area greater than 60m² .

FAQ

Q1. Is Tailord a Furnace manufacturer or trading agent?

A: We are a manufacturer specialized in industrial heat treatment furnaces, based in Hefei, China.

Q2. What kind of furnaces do you have?

A: Mesh Belt Furnace, Roller Hearth Furnace, Pusher Furnace, Bell Furnace, Box Furnace, Tube Furnace, Rotary Furnace.

Q3. What about the lead time?

A: 60-90 days for furnace production.

Q4. Do you have any MOQ limit for furnace order?

A: Low MOQ, 1 unit is available.

Q5. How do you ship the goods and how long does it take to arrive?

A: Normally, Sea shipping, Airline and Train is also optional. Arriving time depends on the distance.

Q5. How to proceed an order for furnace?

A: Firstly, let us know your detailed requirements or application.

Secondly, we offer the technical agreement of the furnace and quote according to your requirements or our suggestions.

Thirdly, customer confirms the contact and places deposit for formal order.

Lastly, we arrange the production.

Q7: Do you offer guarantee for the furnaces?

A: Yes, we offer 1 year warranty after the final acceptance.

Q8: Could offer on-site installation and commission?

A: According to the specific furnace model, we will offer on-line support or on-site service.
