1. Technical Specification:

This furnace is designed for thick film products firing, such as Hybrid IC, chip-R, SMD components terminal, LTCC, Stainless steel heater, PV thin film cell and other similar products.

1.1 Typical Temperature: 850℃, Max Temperature: 1050℃

1.2 Effective Height: ≤ 50mm

1.3 Belt Width: 300mm

1.4 Belt Material: Cr20Ni80

1.5 Max Load on the Belt: 35kg/m² ( belt weight excluded )

1.6 Drive System:Big Wrap Angle Friction Drive

1.7 Belt Speed Range:30-200mm/min, Stepless Speed Regulation Control with Frequency Conversion

1.8 Heating Component: Ceramic Heating Module

1.9 Firing Atmosphere: Dry and Clean Compressed Air

1.10 Atmosphere: 5 inlet pipes of Compressed Air, Flow Range: 12-120L/min

1.11 Exhaust System: 1 Exhaust Stack in Pre-Heating Section

1.12 Cooling System: Forced Air Cooling

1.13 Layout of Structure:Please See No.3.1

1.14 Temperature Control Stability:±1℃

1.15 Chamber Temperature Uniformity: ±3℃

1.16 Temperature Zone: 5 Zones

1.17 Temperature Control Point: 5 Points

1.18 Thermocouple: K-Type.

1.19 Emergency Stop Button: Each at the entrance and exit of the furnace

1.20 Alarm Protection:Audible and visual Protective Alarm when Over Temp, Thermocouple Failure,Low Air Pressure and other Conditions.

1.21 Surface Temperature of Furnace: < 35℃

1.22 Heating Power: 30kW

1.23 Insulation Power: about 10kW

1.24 Power Supply: Capacity> 39KVA, 3 Phase 5 Line, 220/380VAC, 50Hz

1.25 Weight: about 1200kg

1.26 Overall Dimension: about 4460×1200×1350mm (L×W×H)

1.27 Furnace Appearance: Light grey

2. General Description

The furnace is devided into four major sections: Furnace Body, Atmosphere Control System, Temperature Control System and Drive System.

2.1 Furnace Body Design

Please see Table 1 and Figure 1 for detailed layout of the furnace structure.

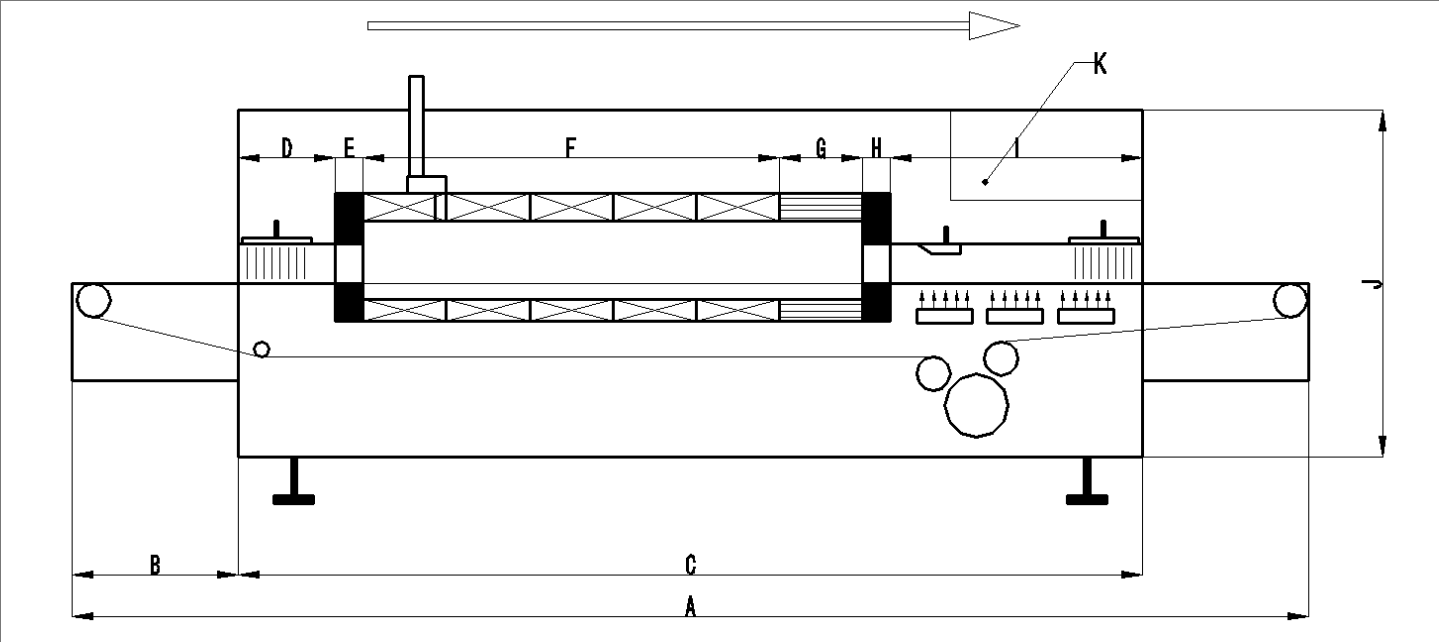

Figure 1:Furnace Layout Drawing

2.2 Atmosphere Control System Design

5 compressed air inlet pipes, mass flow control range 12 - 120L/min,Please see Table 2 and Figure 2 for detailed layout of air inlet pipes.

Figure 2: layout of air inlet pipes drawing

2.3 The Design of Temperature Control System

A. Temperature Measuring: use K-Type thermocouple independent measuring and control on the temperature control point of each zone.

B. Control Instrument:high precision intelligent temperature controller, with PID parameter auto tuning, high temperature upper limit alarm, thermocouple failure and other protective alarm functions.

C. Heating Control System: for the heating control, grouped power supply by several alternating current contactors to reduce the instantaneous current impact to the electric fence to the equipment.

D. Control Mode:Solid State relay zero cross trigger mode.

E. Over Temperature Alarm: when over temperature occurred in some zones, over temperature alarm system in corresponding zones immediately send audible and visual alarm signal and meanwhile the heating of this zone is cut off, the buzzer sounds alarm.

2.4 Drive System Design

Drive Control uses the frequency converter drive frequency variable motor to control the speed by gear box. The speed is adjustable continually.

Belt conveyor device: to drive the driving and drived wheel through chain and sprocket wheel, and then generate the friction force by driving wheel and the belt drive the belt running. There is a belt deviation guide device on the both sides at the entrance and exit.

3. Optional Configure

3.1 Computer Control System

A.DCS control system, intelligent temperature controller, industrial computer monitor

Grading Login, Chinese and English UI

B. Multiple programs saving, easy to edit and application

C. Temperature display and alarm information in real time, data saving and printing

D. It also can provide the temperature calibration function in the chamber for adjusting process requirement.

3.2 Ultrasonic cleaning machine (cleaning mesh belt)

It can effectively clean the impurities and small particle on the belt to avoid product contamination.

4. Equipment Composition

Packing List as Table 3:

5. Equipment Condition

5.1 Equipment Shipping and Installation

A. Shipping: integral transportation, Overall Dimension:4460×120×1350mm (L×W×H).

B. Installation Equipment: 2 hydraulic forklifts with 2 ton capaicity (or 2 cranes with 2 ton).

C. Unpack and Location: customer would inspect the furnace after it arrived, then customer would be responsible for unload and place the furnace to the desired location.

D. Preparation before Installation: The power and exhaust hood and other conditions must be prepared by the customer before installation. Please see “The Operational Condition of the Equipment” for details.

E. Site Operation: the unloading, location and outside wiring, exhaust hood of the equipment must be prepared by the customer.

6. The Operational Condition of the Equipment

A. Compressed Air:dry and clean,work pressure:0.3 - 0.5 MPa,consumption:8-10m3/h

B. Water for Belt Clean: Clean and Acid alkaline free, inlet water pressure:0.15-0.25MPa

C. Environmental Condition:Temperature 0-40℃,Humidity≤80％RH, no corrosive gas, no strong air current.

D. Ventilation System: non-contact exhaust system; exhaust capacity is more than 20m3/h.

E. Ground: level, no obvious vibration, load bearing＞500Kg/m2.

F. Power: Capacity > 39 KVA, 3 Phase 5 Line, Single Phase Voltage: 220 V Voltage between phases 380V Frequency 50 Hz, colour of cables: Fire line: yellow, green, red, zero line: blue, ground line: yellow-green;

G.Installation layout requirment:Overall Dimension: 6000×3000×3000mm (L×W×H), Installation space＞18m²
