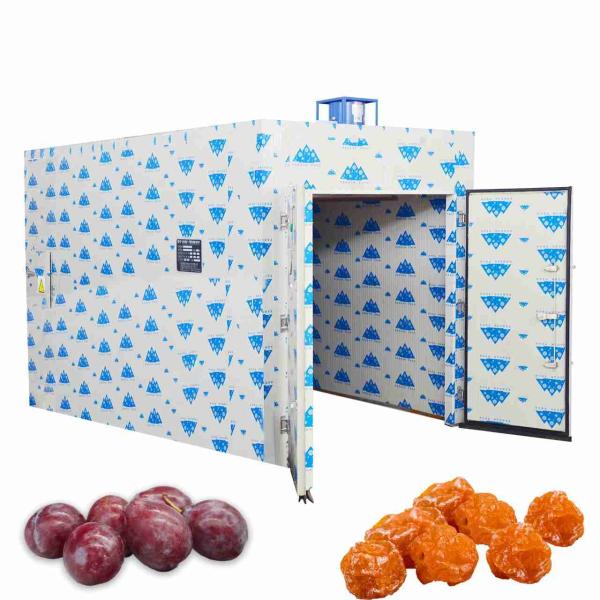

1000KG 26Kw PLC Ume Prunes Heat Pump Food Dryer Berry Fruit Tray Dryer
1000KG 26Kw PLC Ume Prunes Heat Pump Food Dryer Berry Fruit Tray Dryer
1000KG 26Kw PLC Ume Prunes Heat Pump Food Dryer Berry Fruit Tray Dryer
1000KG 26Kw PLC Ume Prunes Heat Pump Food Dryer Berry Fruit Tray Dryer
1000KG 26Kw PLC Ume Prunes Heat Pump Food Dryer Berry Fruit Tray Dryer
1000KG 26Kw PLC Ume Prunes Heat Pump Food Dryer Berry Fruit Tray Dryer
1000KG 26Kw PLC Ume Prunes Heat Pump Food Dryer Berry Fruit Tray Dryer
1000KG 26Kw PLC Ume Prunes Heat Pump Food Dryer Berry Fruit Tray Dryer
Specifications
Brand Name :
Hensghou
Model Number :
HSHPFD01
Certification :
ISO SGS
Place of Origin :
China
MOQ :
1set
Price :
$3699-7899 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 set per month
Delivery Time :
30-40 days
Packaging Details :
1. Standard import and export wooden case 2. According to customer requirements, the packaging method can be negotiated.
Product Name :
Ume heat pump dryer
Power :
26KW
Temperature Range :
35-75℃
Dryer Capacity :
1000KG
Warranty :
1 Year
Key Selling Points :
Customized
Description

26Kw PLC Customized Dried Ume Prunes Heat Pump Food Dryer Berry Fruit Tray Dryer

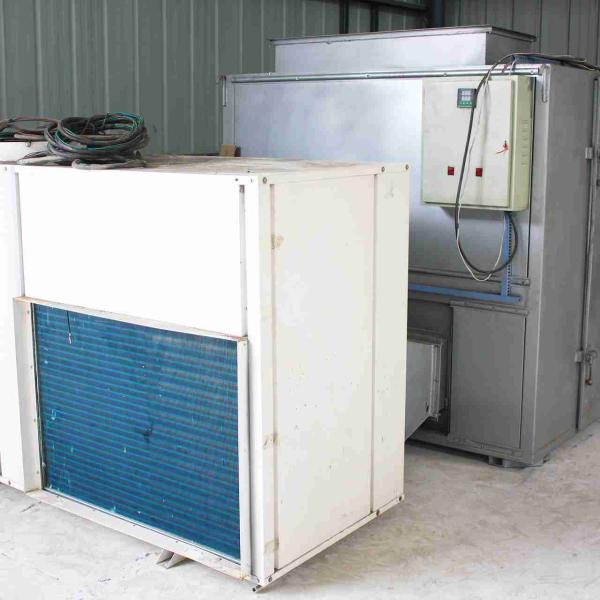

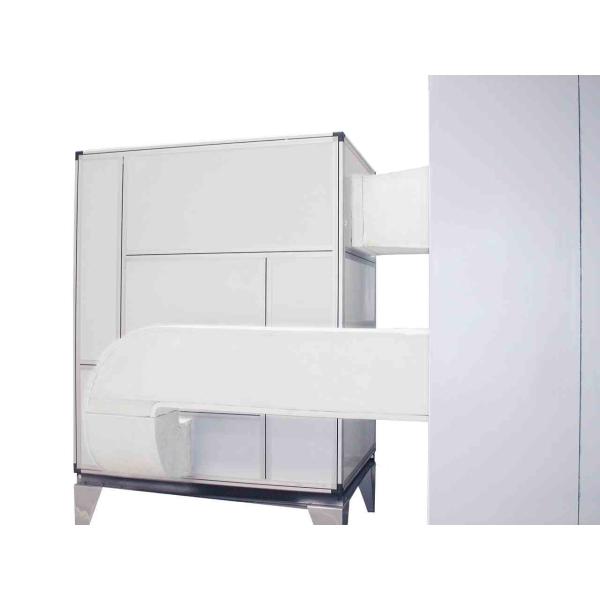

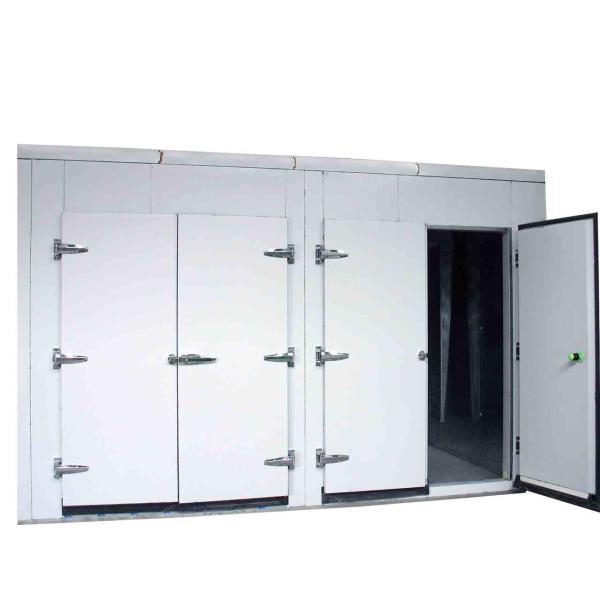

The heat pump food dryer adopts the principle of multi-layer utilization of hot air, which is suitable for dehydration and drying of various herbs, dried fruits, vegetables and other flake, block, strip and granular items. The pure hot air generated by the hot air furnace is used, and the hot air temperature is controllable from 50 ° C to 160 ° C. Two drying and dehydration methods are used at the same time, heating drying and ventilation drying. , Make full use of hot air, drying and dehydration quickly.

THE HEAT PUMP DRYER FEATURES

1. The drying cost is low, and the heat of 3.5kw.h electricity can be obtained with 1kw.h electricity, which saves 70% energy compared with traditional electric heating;
2. High degree of automation, PLC automatic control system, realize automatic drying;
3. The operation is simple, after the drying parameters are set, only one key is needed to start the machine;
4. Energy saving and environmental protection, no waste water, waste gas, waste residue are generated during the drying process, safe, hygienic and pollution-free;

THE OVEN DRYER PARAMENTER

Model 5HF4 5HF6 5HF8 5HF10 5HF12
Trolley 4 6 8 10 12
Tray Total 60 trays 90 trays 120 trays 150 trays 180 trays
Tray Size(mm) 1400*900 1400*900 1400*900 1400*900 1400*900
Tray Capacity (Kg) 12-20 12-20 12-20 12-20 12-20
Tray Material Plastic, Stainless Steel 304,304L,316
Drying Capacity (kg/T) 600-1000kg 1000-2000kg 1500-2500kg 1800-3000kg 2000-4000kg
Chamber Dimension (mm) 5000*2300*2000 6600*2300*2000 8000*2300*2000 7000*3300*2000 8000*3300*2000
Total Power (kw) 26kw 40kw 48kw 51.5kw 57kw

THE HEAT PUMP DRYER USING ENVIRONMENT

1. Temperature: 0～35℃;
2. Atmospheric pressure: 86～106Kpa;
3. The site is well ventilated;
4. There is no strong electromagnetic field around;
5. No direct sunlight or direct radiation from other heat sources;
6. There is no strong airflow around. When the surrounding air needs to be forced to flow, the airflow should not be blown directly to the room.

THE MATERIAL APPLICATION

1000KG 26Kw PLC Ume Prunes Heat Pump Food Dryer Berry Fruit Tray Dryer

1000KG 26Kw PLC Ume Prunes Heat Pump Food Dryer Berry Fruit Tray Dryer

THE COMPANY PROFILE

1000KG 26Kw PLC Ume Prunes Heat Pump Food Dryer Berry Fruit Tray Dryer

THE PATENT CERTIFICATE

1000KG 26Kw PLC Ume Prunes Heat Pump Food Dryer Berry Fruit Tray Dryer

THE SHIPMENT AND PACKGAGE

1000KG 26Kw PLC Ume Prunes Heat Pump Food Dryer Berry Fruit Tray Dryer
