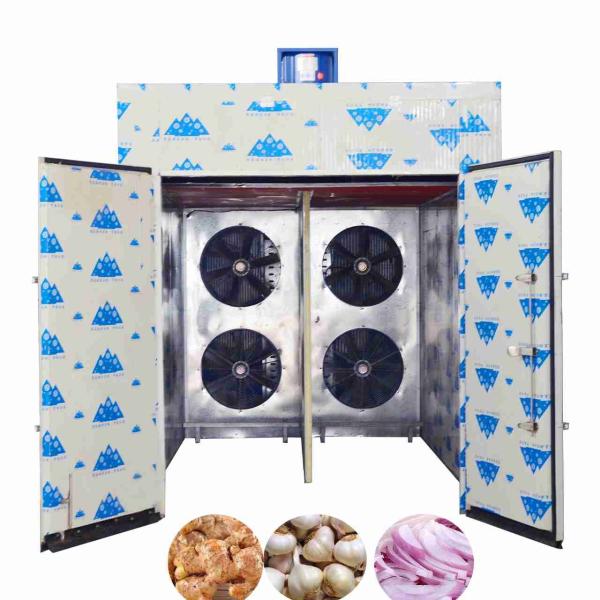

90 Trays Hot Air Circulation Onion Dryer Machine 660*230*200cm OEM
90 Trays Hot Air Circulation Onion Dryer Machine 660*230*200cm OEM
90 Trays Hot Air Circulation Onion Dryer Machine 660*230*200cm OEM
90 Trays Hot Air Circulation Onion Dryer Machine 660*230*200cm OEM
90 Trays Hot Air Circulation Onion Dryer Machine 660*230*200cm OEM
90 Trays Hot Air Circulation Onion Dryer Machine 660*230*200cm OEM
90 Trays Hot Air Circulation Onion Dryer Machine 660*230*200cm OEM
90 Trays Hot Air Circulation Onion Dryer Machine 660*230*200cm OEM
Specifications
Brand Name :
Hensghou
Model Number :
HSODM09
Certification :
ISO SGS
Place of Origin :
China
MOQ :
1set
Price :
$3999-7899 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 set per month
Delivery Time :
30-40 days
Packaging Details :
1. Standard import and export wooden case 2. According to customer requirements, the packaging method can be negotiated.
Product Name :
Condiment Oven Dryer
Power :
40KW
Dryer Capacity :
2000KG
Temperature Range :
40-80℃
Tray Number :
90 trays
Dimension(L*W*H) :
6600*2300*2000mm
Description

90 Trays Hot Air Circulation Garlic Onion Oven Dryer Machine Condiment Drying Machine

The hot air circulation oven drye machine is equipped with a low noise and high temperature resistant axial flow fan and an automatic temperature control system. The entire circulation system is completely closed, so that the thermal efficiency of the oven is increased from 3-7% of the traditional drying room to the current 35-45%, and the high thermal efficiency can reach 50%.

THE OVEN DRYER MACHINE FEATURES

1. Simple and flexible operation;

2. Static drying/One-time feed;

3. Suitable for drying small batches and multiple materials;

4. Suitable for brittle, sticky, small particles and whole rhizomes and pieces of materials;

THE CABINET TRAY DRYER PARAMENTERS

Model 5HF4 5HF6 5HF8 5HF10 5HF12
Trolley 4 6 8 10 12
Tray Total 60 trays 90 trays 120 trays 150 trays 180 trays
Tray Size(mm) 1400*900 1400*900 1400*900 1400*900 1400*900
Tray Capacity (Kg) 12-20 12-20 12-20 12-20 12-20
Tray Material Plastic, Stainless Steel 304,304L,316
Drying Capacity (kg/T) 600-1000kg 1000-2000kg 1500-2500kg 1800-3000kg 2000-4000kg
Chamber Dimension (mm) 5000*2300*2000 6600*2300*2000 8000*2300*2000 7000*3300*2000 8000*3300*2000
Total Power (kw) 26kw 40kw 48kw 51.5kw 57kw

THE MATERIAL APPLICATION

90 Trays Hot Air Circulation Onion Dryer Machine 660*230*200cm OEM

90 Trays Hot Air Circulation Onion Dryer Machine 660*230*200cm OEM

THE COMPANY PROFILE

90 Trays Hot Air Circulation Onion Dryer Machine 660*230*200cm OEM

THE PATENT CERTIFICATE

Founded in 1972, it has won many invention patents, software works and scientific and technological progress awards.

6 *invention patents;

1 *provincial patent award;

54 *national patents and soft works;

13 *scientific and technological progress awards

90 Trays Hot Air Circulation Onion Dryer Machine 660*230*200cm OEM

THE SHIPMENT AND PACKGAGE

90 Trays Hot Air Circulation Onion Dryer Machine 660*230*200cm OEM
