Specifications
Brand Name :
SKF
Model Number :
33018
MOQ :
1
Price :
Standard Precision
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 PCS/MON
Delivery Time :
3-15 DAYS
Packaging Details :
Single Box , Industrial Packing
Bearing Type :
Tapered roller bearings
Bearing Model :
33018
Material :
Steel
Precision :
Standard Precision
Description

Bearing Type : Tapered roller bearings

Brand :SKF

Weigh : 2.2KG

Material : Steel

Flange Type : Non-Flanged Cup

Scope application : Industria and Construction Machinery

Inner Packing : Carton/wooden box, packaging with a woven belt

Outer Packing : Carton/Wooden box

Stock : Great Supplying Ability

Supply a sample : Yes

Bearing Specification

d
90 mm
 Bore diameter
D
140 mm
 Outside diameter
T
39 mm
 Total bearing width
d1
≈ 114 mm
 Inner ring shoulder diameter
B
39 mm
 Width inner ring
C
32.5 mm
 Width outer ring
r1,2
min. 2 mm
 Corner radius inner ring
r3,4
min. 1.5 mm
 Corner radius outer ring
a
27.389 mm
 Distance pressure point

Abutment Dimensions

da
max. 101 mm
 Abutment diameter shaft
db
min. 101 mm
 Abutment diameter shaft
Da
min. 127 mm
 Abutment diameter housing
Da
max. 131 mm
 Abutment diameter housing
Db
min. 135 mm
 Abutment diameter housing
Ca
min. 7 mm
 Abutment housing - axial space at the large side face/ both sides of the outer ring
Cb
min. 6.5 mm
 Abutment housing - axial space at the small side face/ both sides of the outer ring
ra
max. 2 mm
 Fillet radius
rb
max. 1.5 mm
 Fillet radius

Calculation Data

C
266 kN
 Basic dynamic load rating
C0
355 kN
 Basic static load rating
Pu
39 kN
 Fatigue load limit
3 600 r/min
 Reference speed
4 500 r/min
 Limiting speed
e
0.27
 Calculation factor
Y
2.2
 Calculation factor
Y0
1.3
 Calculation factor

SKF 33018 -Tapered roller bearings, single row- Popular item SKF Bearing

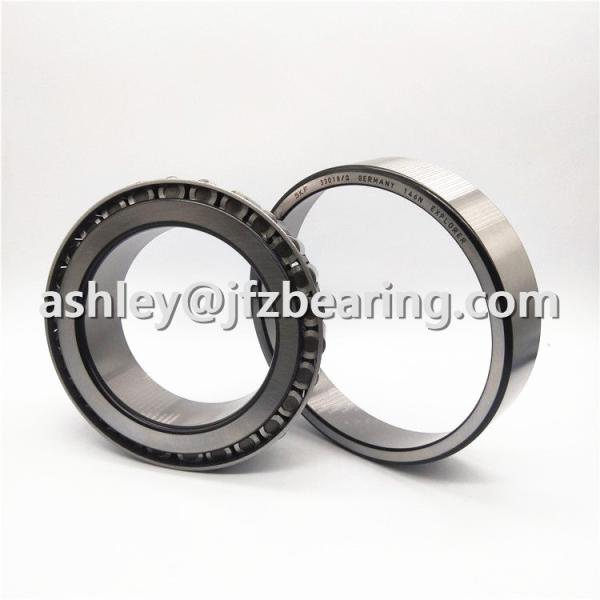

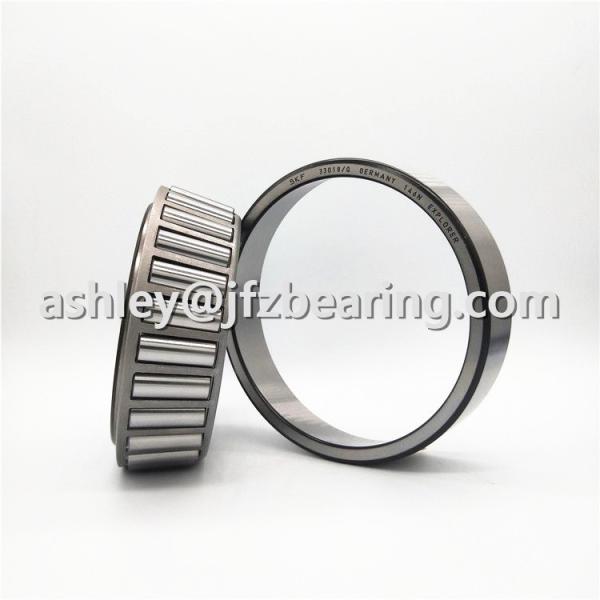

Product Picture

SKF 33018 -Tapered roller bearings, single row- Popular item SKF BearingSKF 33018 -Tapered roller bearings, single row- Popular item SKF BearingSKF 33018 -Tapered roller bearings, single row- Popular item SKF BearingSKF 33018 -Tapered roller bearings, single row- Popular item SKF Bearing

Recommended Model

GE40ES-2RS,GE45ES-2RS,GE50ES-2RS,GE60ES-2RS,GE70ES-2RS,GE80ES-2RS,GE90ES-2RS,GE100ES-2RS,GE110ES-2RS,GE120ES-2RS,GE140ES-2RS,GE160ES-2RS,XB-3,XB-4,XB-5

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
